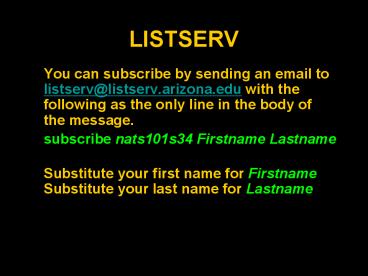

LISTSERV

1
LISTSERV

• You can subscribe by sending an email to
  listserv_at_listserv.arizona.edu with the following
  as the only line in the body of the message.
• subscribe nats101s34 Firstname Lastname
• Substitute your first name for Firstname
  Substitute your last name for Lastname

2
NATS 101 - 34Lecture 2Hurricane Dean 2006
climate anomaliesAtmospheric CompositionDensit
y, Pressure Temperature

3

• http//www.ncdc.noaa.gov/oa/climate/research/2006/
  ann/ann06.html

4
(No Transcript)
5
Atmospheric CompositionPermanent Gases

• N2 and O2 are most abundant gases
• Percentages hold constant up to 80 km
• Ar, Ne, He, and Xe are chemically inert
• N2 and O2 are chemically active, removed
  returned

Ahrens, Table 1.1, 4th Ed.
6
N2 and O2
N2 Boiling point 77 K or -196C or 320 F
O2 Boiling point 90 K or -183 C or -297 F
Balance between input (production) and output
(destruction)
Inputplant/animal decaying Output soil
bacteria oceanic plankton--gtnutrient
s
Inputplant photosynthesis Output organic matter
decay chemical combination
(oxidation) breathing
7
Atmospheric CompositionImportant Trace Gases
Ahrens, Table 1.1, 3rd ed.
Which of these is now wrong even in the 4th
edition of Ahrens?
8
Carbon Dioxide CO2
Sources vegetative decay volcanic
eruptions animal exhalation combustion of fossil
fuels(CH4 2 O2 gt 2 H2O CO2) Sinks photosynth
esis (oxygen production) dissolves in
water phytoplankton absorption (limestone
formation)
9
CO2 Trend
Keeling Curve Some gases vary by season and
over many years. The CO2 trend is the cause
for concern about global warming.
CO2 increases in northern spring, decreases in
northern fall
See http//earthguide.ucsd.edu/globalchange/keelin
g_curve/01.html
10
H2O Vapor VariabilityPrecipitable Water (mm)
Some gases can vary spatially and daily
11
Aerosols

• 1 cm3 of air can contain as many as 200,000
• non-gaseous particles.
• dust
• dirt (soil)
• ocean spray
• volcanic ash
• water
• pollen
• pollutants

12
Aerosols - Volcanic Ash
Fig. 1-4, p.6
13
Aerosols - Dust Particles
Dust Storm on Interstate 10, between Phoenix and
Tucson, AZ.
14
Aerosols

• Provide condensation nuclei for water vapor.
• Provide a surface area or catalyst needed for
  much atmospheric chemistry.
• Aerosols can deplete stratospheric ozone. They
  can also cool the planet by reflecting sunlight
  back to space.

15
Two Important Concepts

• Lets introduce two new concepts...
• Density
• Pressure

16
What is Density?

• Density (?) Mass (M) per unit Volume (V)
• ? M/V
• ? Greek letter rho
• Typical Units kg/m3, gm/cm3
• Mass
• molecules (mole) ? molecular mass (gm/mole)
• Avogadro number (6.023x1023 molecules/mole)

17
Density Change

• Density (?) changes by altering either
• a) molecules in a constant volume
• b) volume occupied by the same molecules

18
What is Pressure?

• Pressure (p) Force (F) per unit Area (A)
• Typical Units pounds per square inch (psi),
  millibars (mb), inches Hg
• Average pressure at sea-level
• 14.7 psi
• 1013 mb
• 29.92 in. Hg

19
Pressure

• Can be thought of as weight of air above you.
• (Note that pressure acts in all directions!)
• So as elevation increases, pressure decreases.

Higher elevation Less air above Lower
pressure Lower elevation More air above Higher
pressure
Top
Bottom
20
Density and Pressure Variation

• Key Points
• Both decrease rapidly with height
• Air is compressible, i.e. its density varies

Ahrens, Fig. 1.5
21
Why rapid change with height?

• Consider a spring with 10 kg bricks on top of it
• The spring compresses a little more with each
  addition of a brick. The spring is compressible.

22
Why rapid change with height?

• Now consider several 10 kg springs piled on top
  of each other.
• Topmost spring compresses the least!
• Bottom spring compresses the most!
• The total mass above you decreases rapidly
  w/height.

? mass
? mass
? mass
? mass
23
Why rapid change with height?

• Finally, consider piled-up parcels of air, each
  with the same molecules.
• The bottom parcel is squished the most.
• Its density is the highest.
• Density decreases most rapidly at bottom.

24
Why rapid change with height?

• Each parcel has the same mass (i.e. same number
  of molecules), so the height of a parcel
  represents the same change in pressure ?p.
• Thus, pressure must decrease most rapidly near
  the bottom.

?p
?p
?p
?p
25
A Thinning Atmosphere
Lower density, Gradual drop Higher
density Rapid decrease
NASA photo gallery
26
Pressure Decreases Exponentially with Height

• Logarithmic Decrease
• For each 16 km increase in altitude, pressure
  drops by factor of 10.
• 48 km - 1 mb 32 km - 10 mb 16 km - 100
  mb 0 km - 1000 mb

1 mb
48 km
10 mb
32 km
100 mb
16 km
Ahrens, Fig. 1.5
27
Exponential Variation

• Logarithmic Decrease
• For each 5.5 km height increase, pressure drops
  by factor of 2.
• 16.5 km - 125 mb 11 km - 250 mb 5.5 km - 500
  mb 0 km - 1000 mb

28
Water versus Air

• Pressure variation in water acts more like
  bricks, close to incompressible, instead of like
  springs.

Air Lower density, Gradual drop Higher
density Rapid decrease
Top
Top
Water Constant drop Constant drop
Bottom
Bottom
29
Equation for Pressure Variation

• We can Quantify Pressure Change with Height

30
What is Pressure at 2.8 km?(Summit of Mt. Lemmon)

• Use Equation for Pressure Change

31
What is Pressure at Tucson?

• Use Equation for Pressure Change
• Lets get cocky
• How about Denver? Z1,600 m
• How about Mt. Everest? Z8,700 m
• You try these examples at home for practice

32
Temperature (T) Profile

• More complex than pressure or density
• Layers based on the Environmental Lapse Rate
  (ELR), the rate at which temperature decreases
  with height.

Ahrens, Fig. 1.7
33
Higher Atmosphere

• Molecular Composition
• Homosphere- gases are well mixed. Below 80 km.
  Emphasis of Course.
• Heterosphere- gases separate by molecular weight,
  with heaviest near bottom. Lighter gases (H, He)
  escape.

Ahrens, Fig. 1.8
34
Atmospheric Layers Essentials

• Thermosphere-above 85 km
• Temps warm w/height
• Gases settle by molecular weight (Heterosphere)
• Mesosphere-50 to 85 km
• Temps cool w/height
• Stratosphere-10 to 50 km
• Temps warm w/height, very dry
• Troposphere-0 to 10 km (to the nearest 5 km)
• Temps cool with height
• Contains all H2O vapor, weather of public
  interest

35
Summary

• Many gases make up air
• N2 and O2 account for 99
• Trace gases CO2, H2O, O3, etc.
• Some are very importantmore later
• Pressure and Density
• Decrease rapidly with height
• Temperature
• Complex vertical structure

36
Reading Assignment

• Ahrens
• Pages 13-22 Appendix A C
• Problems 1.17, 1.18, 1.20
• (1.17 ? Chapter 1, Question 17)
• Dont Forget the 4x6 Index Cards
