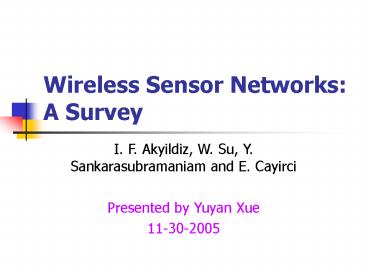

Wireless Sensor Networks: A Survey

1
Wireless Sensor Networks A Survey

• I. F. Akyildiz, W. Su, Y. Sankarasubramaniam and
  E. Cayirci
• Presented by Yuyan Xue
• 11-30-2005

2
Outline

• Introduction
• Applications of sensor networks
• Factors influencing sensor network design
• Communication architecture of sensor networks
• Conclusion

3
Introduction

• A sensor network is composed of a large number
  of sensor nodes, which are densely deployed
  either inside the phenomenon or very close to it.

• Random deployment
• Cooperative capabilities

4
Introduction

• Sensor networks VS ad hoc networks
• The number of nodes in a sensor network can be
  several orders of magnitude higher than the nodes
  in an ad hoc network.
• Sensor nodes are densely deployed.
• Sensor nodes are limited in power, computational
  capacities and memory.
• Sensor nodes are prone to failures.
• The topology of a sensor network changes
  frequently.
• Sensor nodes mainly use broadcast, most ad hoc
  networks are based on p2p.
• Sensor nodes may not have global ID.

5
Applications of Sensor networks
6
Applications of sensor networks

• Military applications
• Monitoring friendly forces, equipment and
  ammunition
• Reconnaissance of opposing forces and terrain
• Battlefield surveillance
• Battle damage assessment
• Nuclear, biological and chemical attack detection

7
Applications of sensor networks

• Environmental applications
• Forest fire detection
• Biocomplexity mapping of the environment
• Flood detection
• Precision agriculture

8
Applications of sensor networks

• Health applications
• Tele-monitoring of human physiological data
• Tracking and monitoring patients and doctors
  inside a hospital
• Drug administration in hospitals

9
Applications of sensor networks

• Home and other commercial applications
• Home automation and Smart environment
• Interactive museums
• Managing inventory control
• Vehicle tracking and detection
• Detecting and monitoring car thefts

10
Factors Influencing Sensor Network Design
11
Factors influencing sensor network design
12
Factors influencing sensor network design

• Fault Tolerance
• Scalability
• Hardware Constrains
• Sensor Network Topology
• Environment
• Transmission Media
• Power Consumption

13
Factors influencing sensor network design

• Fault tolerance
• Fault tolerance is the ability to sustain sensor
  network functionalities without any interruption
  due to sensor node failures.
• The fault tolerance level depends on the
  application of the sensor networks.

14
Factors influencing sensor network design

• Scalability
• Scalability measures the density of the sensor
  nodes.
• Density (R) (N R2)/AR Radio
  Transmission Range

15
Factors influencing sensor network design

• Production costs
• The cost of a single node is very important to
  justify the overall cost of the networks.
• The cost of a sensor node is a very challenging
  issue given the amount of functionalities with a
  price of much less than a dollar.

16
Factors influencing sensor network design

• Hardware constraints

17
Factors influencing sensor network design

• Sensor network topology
• Pre-deployment and deployment phase
• Post-deployment phase
• Re-deployment of additional nodes phase

18
Factors influencing sensor network design

• Environment
• Busy intersections
• Interior of a large machinery
• Bottom of an ocean
• Surface of an ocean during a tornado
• Biologically or chemically contaminated field
• Battlefield beyond the enemy lines
• Home or a large building
• Large warehouse
• Animals
• Fast moving vehicles
• Drain or river moving with current.

19
Factors influencing sensor network design

• Transmission media
• In a multihop sensor network, communicating
  nodes are linked by a wireless medium. To enable
  global operation, the chosen transmission medium
  must be available worldwide.
• Radio
• infrared
• optical media

20
Factors influencing sensor network design

• Power Consumption
• Sensing
• Communication
• Data processing

21
Communication architecture of sensor networks
22
Communication architecture of sensor networks

• Combine power and routing awareness
• Integrates date with networking protocols
• Communicates power efficiently through the
  wireless medium
• Promotes cooperative efforts among sensor nodes.

23
Communication architecture of sensor networks

• Physical layer
• Address the needs of simple but robust
  modulation, transmission, and receiving
  techniques.
• frequency selection
• carrier frequency generation
• signal detection and propagation
• signal modulation and data encryption.

24
Communication architecture of sensor networks

• Propagation Effects Minimum output power
  (dn 2ltnlt4) Ground reflect Multihop in dense
  sensor net work
• Power Efficiency Modulation SchemeM-ary
  Modulation schemeUltra wideband(impulse radio)

25
Communication architecture of sensor networks

• Open research issues
• Modulation schemes
• Strategies to overcome signal propagation effects
• Hardware design transceiver

26
Communication architecture of sensor networks

• Data link layer
• The data link layer is responsible for the
  multiplexing of data stream, data frame
  detection, the medium access and error control.
• Medium Access Control
• Power Saving Modes of Operation
• Error Control

27
Communication architecture of sensor networks

• Medium access control
• Creation of the network infrastructure
• Fairly and efficiently share communication
  resources between sensor nodes
• Existing MAC protocols (Cellular System,
  Bluetooth and mobile ad hoc network)

28
Communication architecture of sensor networks

• MAC for Sensor Networks
• Self-organizing medium access control for sensor
  networks and Eaves-drop-and-register Algorithm
• CSMA-Based Medium Access
• Hybrid TDMA/FDMA-Based

29
Communication architecture of sensor networks

• Power Saving Modes of Operation
• Sensor nodes communicate using short data packets
• The shorter the packets, the more dominance of
  startup energy
• Operation in a power saving mode is energy
  efficient only if the time spent in that mode is
  greater than a certain threshold.

30
Communication architecture of sensor networks

• Error Control
• Error control modes in Communication Networks
  (additional retransmission energy cost) Forward
  Error Correction (FEC) Automatic repeat request
  (ARQ)
• Simple error control codes with low-complexity
  encoding and decoding might present the best
  solutions for sensor networks.

31
Communication architecture of sensor networks

• Open research issues
• MAC for mobile sensor networks
• Determination of lower bounds on the energy
  required for sensor network self-organization
• Error control coding schemes.
• Power saving modes of operation

32
Communication architecture of sensor networks

• Network layer
• Power efficiency is always an important
  consideration.
• Sensor networks are mostly data centric.
• Data aggregation is useful only when it does not
  hinder the collaborative effort of the sensor
  nodes.
• An ideal sensor network has attribute-based
  addressing and location awareness.

33
Communication architecture of sensor networks
Energy Efficient Routes

• Maximum available power (PA) route Route 2
• Minimum energy (ME) route Route 1
• Minimum hop (MH) route Route 3
• Maximum minimum PA node route Route 3
• Minimum longest edge route Route 1

34
Communication architecture of sensor networks

• Interest Dissemination
• Sinks broadcast the interest
• Sensor nodes broadcast the advertisements
• Attribute-based namingThe areas where the
  temperature is over 70oF The temperature read
  by a certain node

35
Communication architecture of sensor networks

• Data aggregation

• Solve implosion and overlap Problem
• Aggregation based on same attribute of phenomenon
• Specifics (the locations of reporting sensor
  nodes) should not be left out

36
Communication architecture of sensor networks
Several Network Layer Schemes for Sensor Networks
37
Communication architecture of sensor networks

• Open research issues
• New protocols need to be developed to address
  higher topology changes and higher scalability.
• New internetworking schemes should be developed
  to allow easy communication between the sensor
  networks and external networks.

38
Communication architecture of sensor networks

• Transport layer
• This layer is especially needed when the system
  is planned to be accessed through Internet or
  other external networks.
• TCP/UDP type protocols meet most requirements
  (not based on global addressing).
• Little attempt thus far to propose a scheme or to
  discuss the issues related to the transport layer
  of a sensor network in literature.

39
Communication architecture of sensor networks

• Open research issues
• Because acknowledgments are too costly, new
  schemes that split the end-to-end communication
  probably at the sinks may be needed.

40
Communication architecture of sensor networks

• Application layer
• Management protocol makes the hardware and
  software of the lower layers transparent to the
  sensor network management applications.
• Sensor management protocol (SMP)
• Task assignment and data advertisement protocol
  (TADAP)
• Sensor query and data dissemination protocol
  (SQDDP)

41
Communication architecture of sensor networks

• Sensor management protocol (SMP)
• Introducing the rules related to data
  aggregation, attribute-based naming, and
  clustering to the sensor nodes
• Exchanging data related to the location
• finding algorithms
• Time synchronization of the sensor nodes
• Moving sensor nodes
• Turning sensor nodes on and off
• Querying the sensor network configuration and the
  status of nodes, and reconfiguring the sensor
  network
• Authentication, key distribution, and security in
  data communications

42
(No Transcript)
43
Some Other Interesting Applications

• MIT d'Arbeloff Lab The ring sensor
• Monitors the physiological status of the wearer
  and transmits the information to the medical
  professional over the Internet
• Oak Ridge National Laboratory
• Nose-on-a-chip is a MEMS-based sensor
• It can detect 400 species of gases and transmit a
  signal indicating the level to a central control
  station

44
iButton

• A 16mm computer chip armored in a stainless steel
  can
• Up-to-date information can travel with a person
  or object
• Types of i-Button
• Memory Button
• Java Powered Cryptographic iButton
• Thermochron iButton

45
iButton Applications

• Caregivers Assistance
• Do not need to keep a bunch of keys. Only one
  iButton will do the work
• Elder Assistance
• They do not need to enter all their personal
  information again and again. Only one touch of
  iButton is sufficient
• They can enter their ATM card information and PIN
  with iButton
• Vending Machine Operation Assistance

46
iBadge - UCLA

• Investigate behavior of children/patient
• Features
• Speech recording / replaying
• Position detection
• Direction detection / estimation(compass)
• Weather data Temperature, Humidity, Pressure,
  Light

47
iBadge - UCLA
48
Conclusion

• Applications of sensor networks
• Factors influencing sensor network design
• Communication architecture of sensor networks
