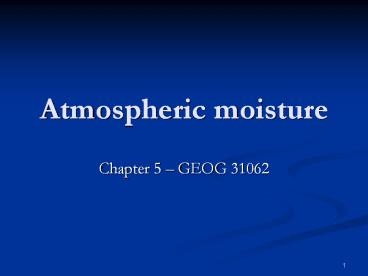

Atmospheric moisture

1
Atmospheric moisture

• Chapter 5 GEOG 31062

2
Hydrologic Cycle
3
(No Transcript)
4
Evaporation / Condensation
Saturation when evaporation equals condensation
5
How we measure moisture in the atmosphere

• Absolute values
• Specific humidity
• Dew point
• Relative values
• Relative humidity

6
Saturation specific humidity

• Specific humidity is grams of water per kilogram
  of air
• Far more water vapor can exist in warmer air than
  colder air.

7
Relative humidity

• Given as a percentage
• Relates the total amount of water vapor present
  relative to the total amount possible
• Depends on air temperature and total water vapor
  present
• Why is this not an absolute measure of water in
  the atmosphere?

8
(No Transcript)
9
Diurnal cycle of RH
10
Dew point

• Temperature to which the air must be cooled to
  reach saturation
• (i.e. dew will form)

11
Dew point/temperature relationships in
unsaturated air (a) and saturated air (b c)
12
January Dew Points
13
July Dew Points
14
Precipitable water climatology (Pitt.)
15
How do we reach saturation?

• Addition of water vapor
• Mixing cold air with warm, moist air
• Cooling air to the dew point

16
Also

• Effect of Curvature
• Small drops exhibit greater curvature more
  evaporation takes place
• Supersaturation may occur
• Effect of nuclei
• Droplets are not clean
• Haze can form at RH80
• End result
• Fairly complex saturation values in the
  atmosphere

17
Ice nuclei

• Ice Nuclei
• Water only freezes at 0oC (32oF) if it has
  something to freeze onto
• Supercooled droplets can exist down to
  -40C
• Spontaneous nucleation occurs at -40C

18
Measuring humidity
19
How do we get air to dew point?

• Diabatic processes
• Adding or removing heat energy
• Adiabatic Processes
• No net exchange of energy (through the expansion
  of rising air)

20
Lapse rates

• Change of temperature with height
• Dry adiabatic lapse rate
• -1oC/100m (-5.5oF/1000ft)
• Sinking parcels experience compression warming
• Saturated adiabatic lapse rate
• Occurs in saturated air
• -0.5oC/100m (-3.3oF/1000ft)
• Environmental lapse rate
• What is actually happening in the atmosphere

21
(No Transcript)
22
A comparison of adiabatic and environmental
cooling rates
23
Condensation

• Dew or frost
• Liquid or solid condensation on surface objects
• Diabatic processes
• Fog
• Condensation near the ground of water vapor on
  nuclei in the air

24
Advection fog / Radiation fog
25
Upslope fog and Valley fog
26
Precipitation or evaporation fog
27
Heavy fog days
