Title: Anatomy and Physiology by Rod R Seeley 6th edition Chapter 3

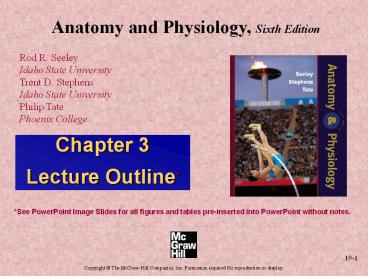

1
Anatomy and Physiology, Sixth Edition
Rod R. Seeley Idaho State University Trent D.
Stephens Idaho State University Philip
Tate Phoenix College
Chapter 3 Lecture Outline
See PowerPoint Image Slides for all figures and
tables pre-inserted into PowerPoint without notes.
19-1
Copyright The McGraw-Hill Companies, Inc.
Permission required for reproduction or display.
2
Chapter 3
  • REVIEW-Cell Structure and Function

3
Cell Characteristics
  • Plasma Membrane
  • Outer cell boundary
  • Cytoplasm
  • Cytosol
  • Cytoskeleton
  • Cytoplasmic inclusions
  • Organelles
  • Specialized structures that perform specific
    functions

4
Functions of the Cell
  • Basic unit of life
  • Protection and support
  • Movement
  • Communication
  • Cell metabolism and energy release
  • Inheritance

5
(No Transcript)
6
Plasma Membrane
  • Intracellular versus extracellular
  • Membrane potential
  • Glycolipids and glycoproteins
  • Fluid-mosaic model

7
Membrane Lipids
  • Phospholipids form a lipid bilayer
  • Hydrophilic (water-loving) polar heads
  • Hydrophobic (water-fearing) nonpolar heads
  • Cholesterol Determines fluid nature of membrane

8
Membrane Proteins
  • Integral or intrinsic
  • Extend from one surface to the other
  • Peripheral or extrinsic
  • Attached to either the inner or outer surfaces of
    the lipid bilayer

9
Marker Molecules
  • Allow cells to identify one another or other
    molecules
  • Glycoproteins
  • Glycolipids
  • Examples
  • Immune system
  • Recognition of oocyte by sperm cell

10
Channel Proteins
  • Non-gated ion channels
  • Always open
  • Ligand-gated ion channel
  • Open in response to small molecules that bind to
    proteins or glycoproteins
  • Voltage-gated ion channel
  • Open when there is a change in charge across the
    plasma membrane

11
Receptors
  • Receptor molecules
  • Exposed receptor sites
  • Linked to channel proteins
  • Acetylcholine
  • Linked to G proteins
  • Alter activity on inner surface of plasma membrane

12
Enzymes and Carrier Proteins
13
Movement through the Plasma Membrane
  • Diffusion
  • Osmosis
  • Filtration
  • Mediated transport mechanisms
  • Facilitated diffusion
  • Active transport
  • Secondary active transport

14
Diffusion
  • Movement of solutes from an area of higher
    concentration to an area of lower concentration
    in solution
  • Concentration (or density) gradient
  • Difference between two points
  • Viscosity
  • How easily a liquid flows

15
Diffusion
16
Osmosis
  • Diffusion of water (solvent) across a selectively
    permeable membrane
  • Important because large volume changes caused by
    water movement disrupts normal cell function
  • Cell shrinkage or swelling
  • Isotonic cell neither shrinks nor swells
  • Hypertonic cell shrinks (crenation)
  • Hypotonic cell swells and bursts (lysis)

17
Osmosis
18
Osmosis
19
Filtration
  • Works like a sieve
  • Depends on pressure difference on either side of
    partition
  • Small particles move through holes with liquid
  • Larger particles cannot move beyond partition
  • Moves from side of greater pressure to lower
  • Example In kidneys in urine formation
  • BP moves fluid from blood through filtration
    membrane
  • Water, ions, small molecules pass through
    partition most proteins and blood cells remain
    in blood

20
Mediated Transport Mechanisms
  • Involve carrier proteins
  • Characteristics
  • Specificity
  • To a single type of molecule
  • Competition
  • Saturation
  • Rate of transport limited to number of available
    carrier proteins

21
Saturation of a Carrier Protein
22
Mediated Transport Mechanisms
  • Facilitated diffusion
  • Higher to lower concentration without metabolic
    energy
  • Active transport
  • Requires ATP
  • Moves against gradient
  • Secondary active transport
  • Ions or molecules move in same (symport) or
    different direction (antiport)

23
Secondary Active Transport
24
Endocytosis
  • Internalization of substances by formation of a
    vesicle
  • Types
  • Phagocytosis
  • Pinocytosis
  • Receptor-mediated endocytosis

25
Pinocytosis and Receptor-Mediated Endocytosis
26
Exocytosis
  • Accumulated vesicle secretions expelled from cell
  • Examples
  • Secretion of digestive enzymes by pancreas
  • Secretion of mucus by salivary glands
  • Secretion of milk by mammary glands

27
(No Transcript)
28
(No Transcript)
29
Cytoplasm
  • Cellular material outside nucleus but inside
    plasma membrane
  • Half cytosol, half organelles
  • Cytosol Fluid portion
  • Cytoskeleton Supports the cell
  • Microtubules
  • Microfilaments
  • Intermediate filaments
  • Cytoplasmic inclusions
  • Melanin, hemoglobin, lipid droplets

30
Organelles
  • Small specialized structures for particular
    functions
  • Most have membranes that separate interior of
    organelles from cytoplasm
  • Related to specific structure and function of the
    cell

31
Centrioles
  • In specialized zone of microtubule formation near
    nucleus Centrosome
  • Each unit consists of 9 triplet microtubules
  • Before cell division, centrioles divide, move to
    ends of cell and become spindle fibers

32
Cilia
  • Short appendages projecting from cell surfaces
  • 9 2 microtubule arrangement
  • Capable of movement
  • Moves materials over the cell surface

33
Flagella
  • Similar to cilia but longer
  • Usually only one exists per cell
  • Moves the cell itself in wavelike fashion
  • Example Sperm cell

34
Microvilli
  • Extensions of plasma membrane
  • Normally many on each cell
  • Increase the cell surface
  • One tenth to one twentieth size of cilia
  • Do not move

35
Ribosomes
  • Sites of protein synthesis
  • Composed of a large and small subunit, each
    consisting of rRNA
  • Types
  • Free
  • Attached to endoplasmic reticulum

36
Endoplasmic Reticulum
  • Types
  • Rough
  • Has attached ribosomes
  • Proteins produced and modified for secretions
  • Smooth
  • Not attached ribosomes
  • Manufacture lipids
  • Cisternae Interior spaces isolated from rest of
    cytoplasm

37
Golgi Apparatus
  • Modification, packaging, distribution of proteins
    and lipids for secretion or internal use
  • Flattened membrane sacs stacked on each other

38
Function of Golgi Apparatus
39
Action of Lysosomes
  • Membrane-bound vesicles that pinch off from Golgi
  • Hydrolytic enzymes for intracellular digestion,
    autophagia
  • WBCs have many lysosomes to digest bacteria
  • Important in bone remodeling digesting damaged
    cells

40
Peroxisomes and Proteasomes
  • Peroxisomes
  • Membrane-bound vesicles smaller than lysosomes
  • Contain enzymes to break down fatty acids and
    amino acids
  • Hydrogen peroxide is a toxic by-product of
    breakdown catalase breaks it down to water and
    oxygen
  • Proteasomes
  • Consist of large protein complexes
  • Include several enzymes that break down and
    recycle proteins in cell

41
Mitochondria
  • Provide energy for cell
  • Major site of ATP synthesis
  • Membranes
  • Cristae Infoldings of inner membrane
  • Matrix Substance located in space formed by
    inner membrane

42
Nucleus
  • DNA dispersed throughout
  • Consists of
  • Nuclear envelope Separates nucleus from
    cytoplasm and regulates movement of materials in
    and out
  • Chromatin Condenses to form chromosomes during
    cell division
  • Nucleolus Assembly site of ribosomal units

43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
Chromosome Structure
47
Overview of Cell Metabolism
48
Overview of Protein Synthesis
49
Protein Synthesis contd
Transcription
  • Transcription
  • DNA copied to make mRNA
  • Translation
  • Synthesis of a protein
  • Requires mRNA, ribosomes, and tRNA
  • Ribosomes align mRNA codons with tRNA anticodons

50
(No Transcript)
51
Translation
52
Cell Life Cycle
  • Interphase
  • 3 Phases between cell divisions G1, S, G2
  • Mitosis Division of nucleus
  • Prophase
  • Metaphase
  • Anaphase
  • Telophase
  • Cytokinesis Division of cytoplasm
  • Immediately follows mitosis

53
Mitosis
Interphase
Prophase
Metaphase
54
Mitosis
Anaphase
Telophase
Cytokinesis
55
MEIOSIS
  • Sex cells are formed by meiosis
  • Nucleus undergoes 2 divisions (Meiosis I and
    Meiosis II)
  • Resulting in 4 nuclei
  • Each nuclei has half the number of chromosomes as
    parent cell
  • Called haploid 23 chromosomes in human sex cells
  • Resulting daughter cells differentiate into
    gametes or sex cells
  • Sperm cells in males oocytes (egg cells) in
    females
  • During fertilization, a sperm cell fuses with the
    oocyte
  • This restores the normal number of 46 chromosomes
    in the human zygote

56
MEIOSIS
57
Meiosis
58
(No Transcript)
59
Comparison of Mitosis and Meiosis
60
Cellular Aspects of Aging
  • Aging involves lipids, proteins, and nucleic
    acids within the cell
  • 35 or more factors are genetic
  • Cellular clock death of cell line after a
    certain number of cell divisions
  • Death genes turn on late in life
  • DNA damage results in cell degeneration and
    death
  • Free radicals direct damage (by atoms with
    unpaired electrons) to DNA in somatic cells
  • Results in somatic mutations, cellular
    dysfunction, and cell death
  • Mitochondrial damage loss of energy to cell and
    cell death
