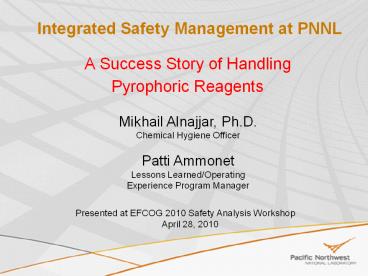

Integrated Safety Management at PNNL

1
Integrated Safety Management at PNNL

• A Success Story of Handling
• Pyrophoric Reagents

Mikhail Alnajjar, Ph.D. Chemical Hygiene
Officer Patti Ammonet Lessons Learned/Operating
Experience Program Manager
Presented at EFCOG 2010 Safety Analysis
Workshop April 28, 2010
2
Handling Pyrophoric Reagents

• Acknowledgement
• Jason Armstrong
• Cindy Caldwell
• Todd Haynie
• Tim Bays, John Linehan, Aaron Appel, Tim Hubler,
  Michael Bates, Andy Minister
• Neal Langerman

3
Initiating event UCLA pyrophoric accident and
researcher death caused us to ask questions

• Could it happen in our lab are we vulnerable?
• Are our labs equipped to handle pyrophorics?
• Are researchers knowledgeable of correct
  protocols?
• Are existing systems and controls adequate for
  planning and performing work when pyrophorics are
  involved?
• Do we have adequate training for those working
  with pyrophorics?
• PNNLs dynamic process we addressed short-term
  actions and plan for long-term improvement efforts

4
To be proactive toward prevention and
dissemination of information to staffA shared
goal between Workers Safety and Health and
Lessons Learned / OE Program where
Our actions
This collaborative effort proved to be very
effective and aligns well with Integrated Safety
Management (ISM) functions (to be
discussed in later slides)
5
Pyrophoric Reagents

• Represent a unique class of reactants
• They participate in many different types of
  reactions
• They are very useful in organic synthesis
• They play an important role in industrial
  applications

6
Handling Pyrophoric Reagents

• Definition
• According to Occupational Safety and Health
  Administration (OSHA) and National Fire
  Protection Association (NFPA)
• Pyrophorics as substances that will
  self-ignite in air at temperatures of 130F
  (54.4C) or less
• According to U.S. Department of Transportation
  (DOT)
• Pyrophorics as Substances (liquid or solid)
  that, even in small quantities and without an
  external ignition source, can ignite within five
  minutes after coming in contact with air

7
Handling Pyrophoric Reagents

• Due to their Inherent Nature,
• Pyrophorics (gases, solids, and Liquids) Ignite
  Spontaneously upon exposure to air
• Therefore,
• Special precautions must be taken to ensure
  their safe handling and use

8
Handling Pyrophoric Reagents

• Three Types of Pyrophorics
• 1) Gases (diborane, phosphine, arsine,
  silane)
• These are easiest class of Pyrophorics to handle
  because the gas can be connected directly to the
  application and use remotely.

9
Handling Pyrophoric Reagents

• Three Types of Pyrophorics
• 2) Solids
• A) Finely divided metals (Fe, Mg, U)
• B) Alkali metals (Li, Na, K, Na-K Alloy)
• C) Metal hydrides (LiAlH4, KH, UH3)
• D) Others (Ni-carbonyl, Raney Ni, FeS, FeS2,
  K2S, etc)
• KO2 (superoxide) forming on the surface of the
  metal is shock-sensitive and can explode when
  handled or cut.

10
Handling Pyrophoric Reagents

• Three Types of Pyrophorics
• 3) Liquids
• A) Pure liquids (diethylzinc, triethylborane,
  tributylphosphine, hydrazine hypergolic and
  used in rocket fuel an explosives)
• B) Solutions (alkyl metals such as
  Methyllithium, n-Butyllithium, t-Butyllithium)
• The alkyl metals are usually dissolved in
  pentane, hexane, diethyl ether, or THF

11
Handling Pyrophoric Reagents

• Objectives
• A brief discussion on proper techniques for
  disposal
• A brief discussion on proper techniques for
  storage
• Illustrate best practices for handling this class
  of reagents
• Answer any questions you may have
• Overall goal to provide guidelines and general
  safety precautions to avoid serious or fatal
  injury.

12
Handling Pyrophoric Reagents

• General Precautions
• Do not work alone (use the Buddy System)
• Safety glasses, fire-retardant coats gloves
  should be mandatory along with chemically-resistan
  t gloves when appropriate
• Wear Natural fiber clothing if possible.
  Synthetic materials tend to melt instead of
  charring when exposed to high heat.
• In case of emergency, use the safety shower or a
  fire blanket. Stop, drop, and roll may come
  handy at times
• Read the manufacturers MSDS and understand the
  technical information within or find
  experienced staff
• Work must be performed inside a (clean) Fume Hood
  with the sash down for protection from chemical
  splashes

13
Handling Pyrophoric Reagents

• General Precautions
• The bottle should be secured to a stand with a
  clamp before use to prevent from tipping over
• Ensure that the assembly is purged and maintained
  under an inert atmosphere
• When extracting liquid pyrophoric from a reagent
  bottle, use a Luer-lock airtight glass syringe
  with a wide bore. Note Needle with gauge 18 or
  larger is preferred.
• Practice the experimental technique with
  non-hazardous materials to refine the technique
  and build confidence
• When Possible, use oxygen FREE gloveboxes

14
Disposal of Pyrophoric Reagents---liquids and
Solids---

• Syringes, double-tipped needles, spatulas, and
  reaction assembly, should be rinsed with an inert
  solvent
• Excess reagents should be diluted with an inert
  solvent
• The rinsates are transferred to a flask under an
  inert atmosphere and cooled in a cooling bath
  (DMK/CO2)
• Start the neutralization by slowly adding
  isopropyl alcohol (IPA)
• Follow the addition of IPA with methanol (a
  stronger neutralization solvent)
• Finally, add copious amounts of water or dilute
  acid if needed to insure that neutralization is
  complete
• Dispose of the waste safely in accordance with
  requirements or organizations waste disposal
  process

15
Storage of Pyrophoric Reagents

• Typically keep away from heat and ignition
  sources, flammable and combustible materials,
  oxidizers, air, and water/in case of water
  reactive Pyrophorics.
• Solids Are stored as suspensions or chunks in
  mineral oil or under an inert atmosphere of dry
  Nitrogen or Argon
• Liquids Are stored under an inert atmosphere of
  dry Nitrogen or Argon

16
Handling Pyrophoric Reagents---Syringe
Transfer---

• Syringe Transfer Assembly Equipped with an Inert
  Gas Line and a Bubbler during Reagent Transfer

17
Handling Pyrophoric Reagents---Syringe
Transfer---

• Syringe Transfer Assembly with Inert Gas Line
  (1), Bubbler (2), Secure Reagent Bottle (3), and
  Fire Resistant Gloves

18
Handling Pyrophoric Reagents---Syringe
Transfer---

• Transfer Assembly in Fume Hood (1) Fire resistant
  pilot glove (2) Fire resistant lab coat (3)
  safety glasses with side shield.
• Note Sash has been lowered to reduce potential
  splash hazards.

19
Handling Pyrophoric Reagents---Double-Tipped
Needle Transfer---

• Double-Tipped Needle Assembly Equipped with a
  Bubbler and Kept Under an Inert Atmosphere
  during Reagent Transfer

20
Our actions align with ISM functions shared
commitment to integrated safety and prevention
Evaluating work planning process for improvements
to working with chemicals
Provide e-chemical process permits assess
chemical hazards to assure greater safety in the
workplace
Developed detailed pyrophoric protocols
Update train staff
21
Prevention a shared goal between the CHO and
Lessons Learned / OE Program
Provide feedback and improvement

• Shared beyond PNNL
• Adopted as a new standard
• Invited to the American Chemical Society Workshop
• Shared with EFCOG
• Published in the Journal of Chemical Health
  Safety

• Issued PNNL lessons learned
• promoted discussion among researchers
• provided updated guidelines
• discussed in Lab safety councils

• Detailed pyrophoric guidelines
• updated Lab processes/procedures
• basis for new training
• updated LL and links

22
Methods for the Safe Storage, Handling, and
Disposal of Pyrophoric Liquids and Solids in the
Laboratory

• Mikhail Alnajjar, Dave Quigley, Fred Simmons,
  Murty Kuntamukkula, David Freshwater, and Samuel
  Bigger
• e-mail ms.alnajjar_at_pnl.gov
• Published in the Journal of Chemical Health
  Safety
• (Publication)

23
Handling Pyrophoric Reagents

• Thank you
• Questions???
• Comments!!!
