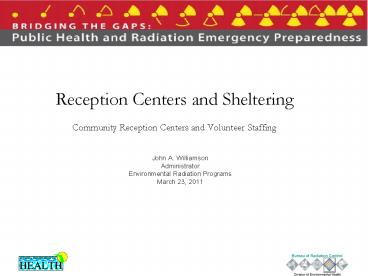

Title: Reception Centers and Sheltering Community Reception Centers and Volunteer Staffing
1Reception Centers and ShelteringCommunity
Reception Centers and Volunteer Staffing
- John A. Williamson
- Administrator
- Environmental Radiation Programs
- March 23, 2011
2(No Transcript)
3(No Transcript)
4Whats Next?
5Call the Feds?
6NRF Nuclear Radiological Incident Annex
- Response Activity Federal Agency
Capabilities/Responsibilities - Population Monitoring
- The Department of Health and Human Services
(HHS), through ESF 8 Public Health and Medical
Services and in consultation with the
coordinating agency, coordinates Federal support
for external monitoring of people. - HHS assists local and State health departments in
establishing a registry of potentially exposed
individuals, performing dose reconstruction, and
conducting long-term monitoring of this
population for potential long-term health
effects. -
-
-
7NRF Nuclear Radiological Incident Annex
- Response Activity Federal Agency
Capabilities/Responsibilities - Population Decontamination
- Decontamination of possibly affected victims is
accomplished locally and is the responsibility of
State, tribal, and local governments. - Federal resources are provided at the request of,
and in support of, the affected State(s). HHS,
through ESF 8 and in consultation with the
coordinating agency, coordinates Federal support
for population decontamination. - HHS assists and supports State, tribal, and local
governments in performing monitoring for internal
contamination and administering available
pharmaceuticals for internal decontamination, as
deemed necessary by State health officials. -
8Population Monitoring and Decontamination
- Limited Federal resources for monitoring/decontami
nation of the public. - Federal resources will take time to arrive.
9Should the state radiation program do this
monitoring?
- 70 of the state radiation programs in the US are
part of the health department - Do they have the resources?
- What about the ones that are not part of health?
10- What am I (State of Florida) expected to do?
- Monitor population for radiological contamination
- Onsite-Typically done by Fire Rescue Decon Teams
- Offsite-Emergency Mgmt, Health, First Receivers
- Hospitals (Should be injured personnel
only-contamination alone is not considered a
medical emergency) - CRC (Stadium, shelters, reception centers, etc.)
11- How many people may require monitoring?
- Depends on type of event, type of notification
- Goiania, Brazil Cs-137 exposure gt100,000
requested monitoring, 237 found contaminated - Tokyo, Japan-Sarin Gas attack in subway gt5500
reported to hospitals, 1000 mild injury, 37
severe and 17 critical.
12Community Reception Centers
- Local response strategy for conducting population
monitoring - Multi-agency effort, public health lead
- Staffed by government officials and organized
volunteers - Opened 6-48 hours post event
- Located outside of hot zone
- Comparable to PODs, NEHCs
13Community Reception Centers
- Services include
- External contamination screening
- External decontamination
- Limited medical care
- Services may include
- Assessment of internal contamination
- Assessment of need for bioassay
- Collection of bioassay
- Main purpose is to prioritize people for further
care - Ease burden on hospitals
- Manage scarce medical resources
14(No Transcript)
15Evaluate Needs and Resources
- Technical - Procedural Guidance/suggestions
- Equipment Needs GM friskers for small
numbers GM or Scintillation portal monitors for
large numbers (can you effectively screen 100K
people with handheld instruments?) Floor
covering anti-c clothing changes/personal
possession bags computers/bar code
software/wristbands - Facilities - Where can/should I set up a CRC?
- Personnel - How many surveyors are needed for
large event? Admin/medical/logistical support?
16Technical Resources
17The Best Place to Start!
- CDCs Virtual Community Reception Center
- http//www.orau.gov/rsb/vcrc/
- Provides overview of CRC process
- Provides flow charts for CRC
- Aids in determining resources required for
specific circumstances
18Community Reception Center Process Flow
- 7 Stations
- Contamination Control Zone
- Initial Sorting
- First Aid
- Contamination Screening
- Wash
- Clean Zone
- Registration
- Radiation Dose Assessment
- Discharge
19Equipment Resources and Needs
- Florida Equipment Resources (2006)
- 20 portal monitors, primarily in power plant
counties. - Hundreds of GM friskers, also primarily in power
plant counties. - Emergency Dosimetry
20Equipment Resources and Needs
- Florida Equipment Needs
- More Portal Monitors (20 for statewide
distribution) - Friskers
- Dosimetry
- Equipment for internal screening (friskers, NaI)
- How am I going to make up the difference?Homeland
Security Grants - 22 portal monitors (Spring 2008)
- 200 instrument kits (Spring 2008)
- 40 Digital ratemeter/scalers with pancake GM and
NaI (in process)
21- GM friskers (Ludlum 2401P)
- EC GM high range instrument (Canberra
Ultra-radiac) - Electronic dosimeters (Thermo EPD)
- 22 Scintillation based mobile portals (20 Johnson
AM-801, 2 Canberra Mini-sentry)
22Facilities
- Stadiums, schools, community centers
- Facilities used for E shelters, PODs, NEHCs
- Need to consider special needs and pets
- Showers (decon) available or brought in
- Need to direct (not capture) flow of runoff from
decon - Coordinate in advance with local health/EM/Red
Cross - Controlled clean area for breaks/meals for staff
- Securable facility
23Personnel Resources
- Most state radiation programs have limited
personnel resources - FL DOH Radiation Control has 80 technical
personnel (FL is a large program!) deployed to - SEOC 6 personnel
- County EOC 6 personnel
- Mobile Lab 21 personnel
- Field Teams 23 personnel
- Incident Command Facility 24 personnel
- Available for population monitoring -0- personnel
24FDOH Assets
- Environmental Health Strike Teams
- Army of 160
- At least one team per region (seven regions,
eight teams). - Already trained for other types of emergency
response situations. - There is already a generic typing for teams.
- Rad training added as a credential for the team.
- BRC Advanced response course - 16 hour training
- All teams trained (90 personnel), and supplied
with radiation kit, refresher training continues.
25FDOH Assets
- FDOH county env. health staff
- Hundreds of environmental specialists.
- All trained in ICS, NIMS, hazmat awareness.
- Many have extensive experience in emergency
response for hurricanes. - Training
- Advanced response course 8-16 hours training
- Fundamentals course 4 hour training
26Concerns
- Many other responsibilities of strike teams and
CHD staff mean training/exercise time not likely
to increase. - Limited radiation training to enable critical
decision making about contamination issues. - Very little professional experience in DOH or
state government in general with radioactive
contamination. - Importance of having knowledgeable personnel to
reassure public at reception centers is critical.
27Volunteers?
- Post Hurricane Andrew 92 - Florida requires
volunteers to register unregistered
(spontaneous) volunteers will not be used in
emergencies - Registration allows the state to assure that
volunteers are qualified - Registration allows the state to assure that only
those needed will be called - Registered volunteers are covered by state
liability insurance and Good Samaritan laws - But what type of volunteers should we be
recruiting? And how? - Training needs?
28Volunteers!
- gt22K certified radiographers, xray techs, medical
health physicists, nuclear med techs, radiation
therapists form a large potential pool of
volunteers - Many other industrial, governmental and academic
HPs and RSOs - Already trained in basic rad safety
- Many with experience in personnel decon
- Use Medical Reserve Corps to set up a subset
Radiation Response Volunteer Corps - Outreach to FL Chapters of HPS, AAPM, FL NMT
Society, FL Society of Rad Techs - Start Registering Volunteers!
29RRVC Training
- Use local MRC regions to set up training
(CDC-CRCPD grant funded) - Use Training staff of BRC to develop curriculum
(4 hour didactic/3 hr hands on) - Hands on uses equipment
- Use Training staff and Professional staff to
present training to MRCs - To Date 320 personnel trained
- Saturday March 19, Internal Dose Measurement
course delivered
30(No Transcript)
31Additional CRC Staffing needs
- Greeters
- Special Needs
- Medical
- Registration
- EPI
- Counseling
- Security
32Summary - Building a Population Monitoring Program
- Technical - Develop SOPs for population
monitoring CHD POD modelCDC vCRC for setup of
flow, equipment, personnel needs - Equipment ResourcesDOH Radiation Control
provides rad equipment and proceduresLocal
health provides tracking software, computers - TrainingDOH Radiation Control provides training
for MRC/RRVC - Facilities/other equipmentCHD/EM provides
locations, logistics, supplies - PersonnelMRC RRVC, local health, EPI strike
teams, DMAT, env health strike teams, CERT
33Questions?
- John Williamson
- Administrator, Environmental Radiation Programs
- Bureau of Radiation Control
- Florida Department of Health
- 407-297-2096
- John_Williamson_at_doh.state.fl.us
- http//www.doh.state.fl.us/Environment/radiation/i
ndex.html
