Muscle

1

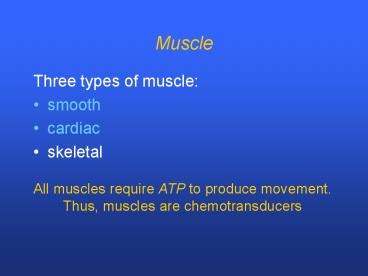

Muscle

• Three types of muscle
• smooth
• cardiac
• skeletal

All muscles require ATP to produce movement.
Thus, muscles are chemotransducers
2
Skeletal Muscle

• Muscle organization
• Muscle innervation
• Architecture and structure
• Excitation-contraction
• Fiber type characteristics
• Training adaptations
• Exam 1 (Feb 8)

3
Skeletal muscle organization

• Connective tissue layers
• Epimysium
• Perimeysium
• Endomysium

4
(No Transcript)
5
Muscle fiber covering

• Sarcolemma
• basement membrane
• plasma membrane
• Plasma membrane has
• membrane receptors
• ion channels
• integrins
• satellite cells
• multinuclei

6
(No Transcript)
7
Muscle Architecture

• Effect on force output and shortening velocity

8
Muscle Architecture
Muscle architecture
9
Muscle Architecture
Parallel
Unipennation
Multipennation
10
Pennation Effect on Physiological
Cross-sectional Area (PCSA)

• Greater PCSA when fiber is at angle to line of
  force

B
A
A
11
Pennation Effect on Force and Shortening
Distance/Velocity
Fiber B
Fiber A
Equal number of sarcomeres in both examples, but
Fiber A has longer fiber and smaller PSFA than
Fiber B, which allows for greater shortening
distance/velocity at sacrifice of force.
12
Identify which muscles are best suited for force
for speed
A
B
C
D
13
Muscle Architecture

• quadriceps and planter flexors designed for force
  production
• larger pennation angles
• large PCSAs
• hamstrings and dorsiflexors designed for velocity
• smaller pennation angles
• intermediate PCSAs

14
Muscle Architecture

• Summary
• Muscles designed to fit purpose of joint
• Muscles designed for velocity have longer fiber
  length and small pennation angle
• Muscles designed for force have shorter fiber
  length and larger pennation angle

15
Review questions

• Describe the difference between a muscle with a
  fusiform architecture and one with a uni- or
  multipennate architecture. Identify a muscle for
  each type of architecture.
• Discuss how muscle architecture affects force
  output and shortening velocity.  Provide a
  general explanation as to why some muscles are
  designed more for rapid shortening velocity (e.g.
  hamstrings) or higher force output (e.g.
  quadriceps muscles).

16
Muscle Innervation

• Motoneurons, neuromuscular junctions, motor units

17
Motoneurons

• muscle fibers innervated by large (alpha)
  myelinated nerves
• motoneurons originate from spinal cord
• nerve ending ends at neuromuscular junction
• motor unit composed of motor neuron and all the
  fibers it innervates

18
(No Transcript)
19
Action Potential

• depolarization influx of Na
• repolarization efflux of K
• refractory period hyperpolarization
• threshold level minimal stimulus required to
  elicit response
• muscle and nerve follow all or nothing principle

20
20 0 -20 -40 -60 -80
Membrane potential (mV)
Time (ms)
K
K
K
Na
Na
K
Na
Na
Na
Na
Na
Na
Na
Na
Na
Na
Na
Na
Na
Na channel
K channel
Na-K exchange pump
ATPase
K
K
K
K
K
K
K
K
K
K
ADP
K
K
K
K
K
K
Na
Pi
Na
Na
Na
intracellular
ATP
21
Neuromuscular Junction
22
(No Transcript)
23
Electromyography (EMG)
Describe the relative weights being lifted
24
Review questions

• Define the motor unit.
• Describe the events that occur as an action
  potential approaches the nerve terminal.
• Explain the purpose of acetylcholinesterase and
  the consequences of its absence.
• A common agent found in flea powders is a low
  dose of an antiacetylcholinesterase inhibitor.
  Explain the effects that the flea powder would
  have on fleas.
• Explain the interpretation of an EMG tracing.

25
Sarcomere Structure
26
Skeletal Muscle Structure
27
Cross-Sectional View of Skeletal Muscle (X40)
28
Skeletal Muscle Structure

• sarcomeres (smallest functional unit) are linked
  end-to-end to form myofibrils
• myofibrils are bunched to form fibers
• sarcomeres are composed of thick and thin
  filaments

29
Scanning EM
1
4
2
5
3
30
Thick Filament

• composed of numerous myosin protein strands
• flexible heads protrude outward all around
  filament (except center)
• myosin heads attach to active sites on actin
  (thin) filament
• myosin heads contain ATPase to break down ATP

31
Myosin filament
32
Myosin Filament
33
Thin Filament
Composed of three proteins

• actin - two protein strands twisted around each
  other, contain active sites
• tropomyosin - thin strand laying in actin groove
  that covers active sites
• troponin - attached to actin and tropomyosin
  strands has strong affinity for Ca2

34
Thin Filament
35
Cytoskeleton (structural) proteins

• M-band located in middle of thick filament
  provides structural support to myosin filaments
  contains creatine kinase (CK)
• Titan connects myosin filament to Z-disk
  stabilizes myosin in middle of sarcomere.
• Z-disk thin filaments attachment composed of
  several cytoskeletal proteins

36
Actin-myosin orientation
37
(No Transcript)
38
Transverse Tubule

• in human skeletal muscle, each sarcomere has two
  transverse tubules running perpendicular to fiber

• T-tubules extend through fiber and have openings
  at sarcolemma allowing communication with plasma
• cardiac fibers have only one T-tubule which lies
  at Z-line

39
Sarcoplasmic Reticulum (SR)

• made up of terminal cisternae and longitudinal
  tubules
• serves as a storage depot for Ca2
• terminal cisternae abut T-tubules
• longitudinal tubules cover myofibrils and connect
  terminal cisternae

40

• 1. On what component does Ca2 bind to?
• Sarcoplasmic reticulum
• Myosin heads
• Troponin
• Tropomyosin

• 2. What protein returns Ca2 to the sarcoplasmic
  reticulum?
• Myosin head
• Ca2 pump
• Ca2 channels
• tropomyosin

41
Review questions

• Describe the myosin filament of a skeletal muscle
  fiber.  Include a detailed description and
  function of the myosin head.
• Describe the thin filament of a skeletal muscle
  fiber.
• Describe the cytoskeleton proteins and their
  functions in the sarcomere.
• Describe the sarcoplasmic reticulum and its role
  in excitation-contraction.

42
Excitation-Contraction

• How muscle contracts

43
Excitation-Contraction Coupling

• action potentials, generated at neuromuscular
  junction travel around sarcolemma and through
  T-tubules
• T-tubules signal SR to release Ca2 into
  sarcoplasm (cytosol)
• Ca2 saturates troponin (in non-fatigued state)
• troponin undergoes conformational change that
  lifts tropomyosin away from actin filament

44
E-C Coupling (cont.)

• myosin head attaches to active site on actin
  filament
• after attaching to actin, myosin head moves
  actin-myosin complex forward and releases ADP and
  Pi
• ATP binds with myosin head, which releases actin,
  and returns to original position
• in resting state, myosin head contains partially
  hydrolyzed ATP (ADP and Pi)

45
(No Transcript)
46
E-C Coupling Schematic
47
E-C Coupling (cont.)

• entire cycle takes 50 ms although myosin heads
  are attached for 2 ms
• a single cross-bridge produces 3-4 pN and
  shortens 10 nm
• as long as action potentials continue, Ca2 will
  continue to be released
• when action potentials cease, SR Ca2 pumps
  return Ca2 ceasing contractions
• skeletal motor units follow all or nothing
  principle

48

• Excitation-Contraction
• AP causes vesicles to release Ach
• Muscle AP travels down t-tubules
• SR releases Ca2 into sarcoplasm
• Ca2 binds to troponin
• Myosin heads bind to actin mysoin ATPase splits
  ATP
• ATP binds to myosin heat releases from actin
• Crossbridge action continues while Ca2 is
  present
• When AP stops, Ca2 pumped back to SR
• Tropomyosin covers active sites

49
EC Coupling

• QuickTime Movie of sliding filaments
• http//www.sci.sdsu.edu/movies/actin_myosin.html
• Click on Link
• Click on Actin Myosin Crossbridge 3D Animation

50

• 3. What will happen if ATP is depleted in muscle?
• Nothing
• Muscle will relax
• Muscle will not relax
• 4. What will happen if sarcoplasmic reticulum of
  fiber is enhanced?
• Fiber will develop tension more quickly
• Fiber will relax more quickly
• Nothing
• Both a and b will occur

51
Review questions

• Discuss the signaling process of the T-tubules
  that leads to Ca2 release by the sarcoplasmic
  reticulum.
• Describe ATP hydrolysis by the myosin filament.
• Discuss factors that could affect the rate of ATP
  hydrolysis by the myosin head as well as factors
  that affect tension development.

52
Skeletal Muscle Fiber Types

• generally categorized by histochemical criteria
• innervating nerve is primary determinant of fiber
  type
• motor units composed of homogenous fibers
• all human muscles contain mixture of three
  general fiber types
• slow twitch (ST, oxidative, red, Type I)
• fast twitch (FTa, fast-oxidative, white, Type
  IIa)
• fast twitch (FTb, glycolytic, white, Type IIx
  often called IIb)

53

• stained for myosin ATPase (pH 10.3) (dark
  stained)
• stained for myosin ATPase (pH 4.3) (light
  stained)
• stained for SDH
• (dark stained)

Type I
Type IIa
Type IIx
54
Muscle Twitch Characteristics

• frontalis/orbicularis oculi (15 ST)
• first dorsal interosseous (57 ST)
• soleus (80 ST)
• extensor digitorum brevis (60 ST)

55
Fiber Type Characteristics
Performance characteristics affected by

• size of motoneuron
• size of muscle fibers
• amount of SR
• Ca2-ATPase
• myosin ATPase
• aerobic capacity (amount of mitochondria)
• anaerobic capacity (amount of glycolytic enzymes)

56
Be able to explain the differences in the force
responses between motor units.
57
Fiber Type Performance Characteristics
Compare fiber types responses for the following
AND provide a reason for your response

• (absolute relative) force output
• time-to-peak tension
• relaxation time
• shortening velocity
• fatigability

58

• 5. Which fiber reaches peak tension most
  quickly?
• Type I
• Type IIa
• Type IIx
• 6. What is the reasoning for your response to
  Q5?
• faster myosin ATPase
• more Ca2 channels
• more Ca2 pumps
• faster action potentials
• none of the above are correct

59
(No Transcript)
60
Exam 1 Thu, Feb 8

• Begin preparing for exam NOW!
• Use posted learning objectives as basis for
  studying
• Read text to clarify material
• Initially, study by self, then study with
  classmates
• Teach each other course material question
  accuracy/completeness of others explanations
• See me if questions remain
• You may start the exam at 745 am
• Bring the medium-sized RED scoring sheet (sheet
  that enables you to bubble in your name)

61
Motor Unit Recruitment Pattern Size Principle
62
Quiz 1

• c
• b
• e
• b
• No ATP available for myosin head to detach from
  actin.
• c
• d
• a
• a

• ST fibers have less SR, thus Ca2 release and
  uptake are slower.
• c
• a
• e
• Force was decreasing.
• Decreasing EMG represents decreasing motor unit
  recruitment.

63
Muscle Movements

• isotonic develops tension while changing length
• isokinetic resistance to muscle changes with
  muscle length to ensure equal tension development
• isometric (static) develops tension but no
  length change
• concentric develops tension while shortening
• eccentric develops tension while lengthening

64
Muscle Performance Characteristics
Force and power development dependent on

• number of muscle fibers recruited
• muscle architecture
• angle of pull
• length of fiber
• velocity of shortening
• load place on muscle

65
Length-Tension Relationship
66
Length-Tension Relationship
67
How sarcomere length affects force outputThis
explains the length-tension relationship
68

• At which length would force output by the biceps
  muscle be greatest?
• When the arm is in full extension
• When the arm is flexed at 90-100º
• When the arm is at full flexion
• Strength (force) would be the same throughout the
  entire range of motion

69
Force-Velocity Relationship
70

• How would the EMG activity to a leg squat during
  the lowering (eccentric) phase compare to the
  upward (concentric) phase.
• EMG activity would be the same for both phases.
• EMG activity would be greater for the concentric
  phase.
• EMG activity would be greater for the eccentric
  phase.

71
EMG comparison of concentric and eccentric actions
72
Muscle Spindles (sensitive to stretch)
73
Golgi tendon organs(sensitive to strain)
74
Resistance Training Adaptations

• dependent on neural and physiological adaptations
• training specificity determines adaptations

75
Strength Training Adaptations
76
Neural Adaptations

• increased motor unit recruitment
• decreased neural inhibition of motor unit
  recruitment
• decreased antagonist muscle recruitment
• increased neural coordination

77
Muscle Fiber Adaptations

• increased fiber size (both types)
• increased hypertrophy (1º)
• increased hyperplasia (2º)
• occurs more to FT fibers than ST
• little or no change of fiber types
• testosterone explains only part of larger muscle
  mass in males

78

• How does
• an untrained individual increase strength?
• a trained individual further increase strength?
• neuromuscular adaptations
• hypertrophy
• both neuromuscular adaptations and hypertrophy

79
Exercise-Induced Muscle Damage and Soreness
Unaccustomed exercise stimulates sequence of
events that

• diminishes performance
• causes ultrastructure damage
• initiates inflammatory reaction
• causes delayed-onset muscular soreness (DOMS)

80
Muscle Damage/Repair Overview

• damage occurs during lengthening (eccentric)
  movements
• damage commonly occurs to sarcolemma, Z-disk
  (streaming), T-tubules/SR, myofibrils,
  cytoskeleton
• initial muscle damage followed by
  inflammatory-induced damage
• produces muscle swelling
• affects FT fibers more than ST fibers
• repair begins 3 d post-exercise

81
Z-line streaming
82
Muscle Fiber Damage Sarcolemma damage
83
Exercise-Induced Muscle Damage

• extent of injury more related to length than
  force or velocity
• weaker fibers become overstretched, which become
  damaged (Morgan, 1990)

84
Elastic filaments only linking thick filaments
Total tension is 80 of maximal tension
sarcomere is on descending limb of length-tension
relation.
Popping-Sarcomere Hypotheses
Additional elastic element
When half of sarcomere is over-stretched, tension
is increased on additional elastic element, which
increases passive tension.
Proske Morgan, J Physiol, 2001
85
Stages of Muscle Damage
1. During exercise

• Mechanical (strain) damage results in
• sarcolemma damage
• SR damage
• myofibrillar damage
• Ca2 influx

2. After exercise
Inflammatory response causes
86
Effects of Elevated intracellular Ca2

• activates proteases
• damages cytoskeleton proteins
• activates phospholipases
• generates free radicals
• damages plasma membranes

87
Acute Phase Response

• Promotes clearance of damaged tissue and
  initiates repair
• ? circulating neutrophils (w/in 1-12 h) and
  monocytes (w/in 1-3 d)
• enters injury site and phagocytizes damaged
  tissue
• release cytotoxic factors (e.g., oxygen radicals)

88
Typical Times of Peak Effects

• Ultrastructural damage ? 3-d postexercise
• DOMS ? 1-2 d postexercise

89
Effects of Eccentric Arm Curls(on a scale of 0
to 6)
Kolkhorst et al., ACSM, 2003
90
Effects of Eccentric Arm Curls
Kolkhorst et al., ACSM, 2003
91
CK from 60-min Downhill Running
Kolkhorst, unpublished observations
92
Effects on Performance/Soreness

• greater damage to FT fibers
• prolonged strength loss
• primary cause ? failure of SR-Ca2 release
• ultrastructure damage secondary cause of strength
  loss
• muscle swelling/DOMS
• DOMS caused by tissue breakdown products that
  sensitize pain receptors

93
Muscle Repair

• macrophage infiltration required for activation
  of satellite cells
• satellite cells located between basement membrane
  and plasma membrane
• in response to signal from injury site, satellite
  cells migrate to injury
• differentiate into myoblasts, which fuse into
  myotubes

94
Muscle repair
95
Immediately after crush injury
2 days

• At 2 d, damaged fibers have undergone necrosis,
  with digestion/removal by macrophages.
• At 5 d, several newly formed myotubes are
  visible.
• At 10 d, myotubes have transformed into fibers,
  many of which have linked up with fibers stumps
  on either side.

5 days
96
Adaptation to Eccentric Exercise

• adaptation occurs w/in 1 week
• ? number of sarcomeres?
• increases fiber length,
• Allows sarcomere to work at shorter lengths

97
Quiz 2

• e
• d
• Increased motor unit recruitment
• Measure EMG during max lift before and after
  training. Post-training EMG should be greater.
• e
• c
• d

• a
• d
• c
• Maximal number of cross-bridges occur at this
  muscle length
• b
• c
• If fiber contracts, it develops its maximal
  tension
• Yes, but fibers develop more tension during
  eccentric movement

98

• Which type of activity would likely cause the
  most severe DOMS or muscle damage?
• level running (involves about half concentric and
  half eccentric movements)
• rowing exercise (involves mostly pulling motion,
  a concentric movement)
• running down stadium stairs (involves more
  eccentric than concentric movements)
• cycling (entirely concentric movements)
• none of the above would cause DOMS

99

• Eccentric exercise
• causes the greatest damage at the shortest muscle
  lengths.
• causes the greatest damage to ST fibers.
• initiates an inflammatory response that causes
  further myofibril damage.
• stimulates macrophage infiltration to the damaged
  area, which is essential for muscle repair.
• both c and d are correct

100

• The greater the load placed on a muscle during a
  shortening movement, the _____ it can shorten.
  This illustrates the _____ relationship of
  skeletal muscle mechanics.
• slower power-load
• slower length-tension
• faster length-tension
• slower force-velocity
• faster force-tension

101

• According to the Force-Velocity relationship, how
  does force output of a fiber when shortening
  compare to when it is forced to lengthen?
• force output is greater when it is allowed to
  shorten
• force output is equal regardless of shortening or
  lengthening
• force output is less when it is allowed to shorten
