KNEE JOINT

1

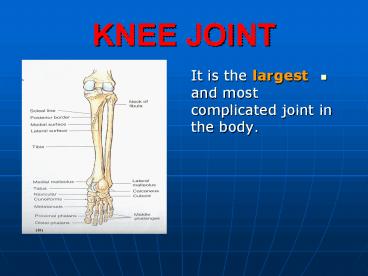

KNEE JOINT

• It is the largest and most complicated joint in
  the body.

2
FUNCTIONS

• 1. Weight bearing.
• 2.Essential for daily activities standing
  walking climbing stairs.
• 3.The main joint responsible for sports
  running, jumping , kicking etc.

3
ARTICULATING BONES

• 1. Lateral and medial articulations between the
  tibial condyles and their cartilaginous menisci
  and the corresponding femoral condyles.

4
ARTICULATING BONES

• 2. Intermediate articulation between the patella
  and femur.

5
THE FEMORAL CONDYLES

• The medial extends further forwards .
• The lateral is more oval.
• The condyles are convex from front to back.

6
TIBIAL CONDYLES

• (PLATEAUS) are flat .
• The medial is oval The lateral is round.
• The articular surfaces are covered with hyaline
  cartilage.

7
TYPE

• A synovial joint of the hinge variety between
  the medial and lateral condyles of the femur and
  the corresponding tibial condyles with some
  degree of rotation.

8
TYPE

• A synovial joint of the plane gliding variety
  between the patella and the patellar surface of
  the femur.

9
CAPSULE

• It is absent Anteriorly.
• It is
• Replaced by
• Quadriceps femoris tendon.
• Patella.
• Ligamentum patellae.

10
CAPSULE

• Posteriorly
• (a) Superior
• Attached proximal to the articular margins of the
  femoral condyles and to the intercondylar fossa.
• It is deficient above the lateral condyle for the
  passage of tendon of popliteus.

11
CAPSULE

• (b) Inferior
• Attached to the tibia EXCEPT when the tendon of
  Popliteus crosses the bone.

12
EXTRACAPSULAR LIGAMENTS

• 1. Ligamentum Patellae
• It is the inter mediate part of the tendon of
  quadriceps femoris .It is supported by the
  patellar retinaculi (expansions from the vasti)
• They strengthen the capsule on each side.

13
2. TIBIAL (MEDIAL) COLLATERAL

• A flat band.
• Attachment
• Above to the medial condyle of the femur.
• Below to the medial surface of the shaft of the
  tibia.
• Firmly attached to the medial meniscus.

14
3. LATERAL (FIBULAR) COLLATERA

• Cord like.
• Attachment
• Above lateral condyle of the femur.
• Below head of the fibula.
• Separated from the lateral meniscus by the tendon
  of popliteus.

15
4. OBLIQUE POPLITEAL

• An expansion of the Semimembranosus.
• It strengthens the capsule posteriorly.

16
INTRA CAPSULAR STRUCTURES

• 1. CRUCIATE LIGAMENTS.
• 2. MENISCI.
• 3. TENDON OF POPLITEUS.

17
CRUCIATE LIGAMENTS

• They are the main bond between the femur and
  tibia throughout the joints movements.
• They Cross each other within the joint cavity.
• They are named Anterior and Posterior according
  to their tibial attachments.

18
ANTERIOR CRUCIATE

• Tibial attachment
• Anterior intercondylar area.
• Course
• Upward, backward and laterally.
• Femoral attachment
• Posterior part of medial surface of the lateral
  condyle.

19
ANTERIOR CRUCIATE

• FUNCTION
• Prevent posterior displacement of the femur on
  the tibia and the tibia from being pulled
  anteriorly when the knee joint is flexed.
• It is taught in hyper extension.

20
POSTERIOR CRUCIATE

• Tibial attachment
• posterior inter condylar area.
• Direction
• upward, forward and medially.
• Femoral attachment
• Anterior part of the lateral surface of the
  medial condyle.

21
POSTERIOR CRUCIATE

• Function
• prevents anterior displacement of the femur on
  the tibia and the tibia from being pulled
  posteriorly when the knee joint is flexed.
• It is taught in hyper flexion.

22
MENISCI

• C shaped sheets of fibro cartilage.
• The peripheral border is thick and attached to
  the capsule.
• The inner border is thin and concave and forms a
  free edge.

23
MENISC

• The upper concave surfaces are in contact with
  the femoral condyles.
• The lower flat surfaces are in contact with the
  tibial condyles.

24
MENISCI

• Functions
• 1. Deepen the tibial articular surfaces.
• 2. Act as cushions between the two bones.

25
MEDIAL MENISCUS

• Crescentic in shape.
• More liable to injury due to its attachment to
  the medial collateral ligament and to the
  capsule.
• It is relatively immobile.

26
LATERAL MENISCUS

• More rounded in shape.
• Its anterior and posterior ends lie within the
  ends of the medial meniscus.
• Posteriorly it is separated from the fibular
  collateral ligament by the tendon of popliteus.
• Less liable to injury.

27
INJURY OF THE MENISCI

• The menisci are frequently injured especially in
  footballers and cricketers.
• The medial is torn three times more often than
  the lateral.
• The injury is produced by the rotation of the
  femur on the tibia or the reverse with the knee
  joint partially flexed and carries the weight of
  the body.

28
INJURY OF THE MENISCI

• The torn part of the meniscus is wedged between
  the tibial and femoral condyles.
• No further movement is allowed and the joint is
  kept locked.

29
SYNOVIAL MEMBRANE

• It lines the lateral and medial parts of the
  capsule.
• Anteriorly
• It forms the supra patellar bursa.
• It is attached to the inter condylar area of the
  tibia and to the lateral and medial borders of
  the patella.

30
SYNOVIAL MEMBRANE

• It is reflected backward from the posterior
  surface of the ligamentum patellae to form the
  Infrapatellar fold.
• The free borders of the fold are the Alar folds.
• The space between these folds contains fat
  (Infrapatellar pad of fat).

31
SYNOVIAL MEMBRANE

• Posteriorly
• It Passes out to surround the cruciate
  ligaments.
• It is continuous with the surface layer of the
  menisci.
• It covers the tendon of popliteus and forms a
  bursa around it (popliteal bursa).
• It forms the semimembranosus bursa.

32
ANTERIOR BURSAE

• They are four
• 1. Suprapatellar
• It is 3 fingerbreadths above the patella.
• Always continuous with the joint cavity.
• Held in position by the articularis genus muscle.
• Accumulation of fluid in the joint causes excees
  fluid in the bursa leading to floating patella.

33
ANTERIOR BURSAE

• 2. Prepatellar
• If enlarged it causes (House Maids) bursa.

34
ANTERIOR BURSAE

• 3.Superficial Infrapatellar. (PARSONS bursa
• 4.Deep Infrapatellar.

35
POSTERIOR BURSAE (6)

• 1. POPLITEAL
• Always continuous with the joint cavity.
• 2.SEMIMEMBRANOSU
• Usually communicates with the joint cavity.
• 3 4. GASTROCNEMIUS
• Around sartorius,gracilis and semitendinosus.

36
MOVEMENTS

• 1. FLEXION
• Hamstrings( supplied by the sciatic nerve).
• Assisted by sartorius, popliteus and gracilis.
• Checked by back of calf in contact with the back
  of the thigh.

37
MOVEMENTS

• 2. EXTENSION
• Quadriceps Femoris (supplied by the femoral
  nerve.)
• Limited by tension of the cruciate and collateral
  ligaments.

38
MOVEMENTS

• 3. ROTATION
• (A) MEDIAL Sartorius, gracilis and
  semitendinosus.
• (B) LATERAL Biceps femoris

39
NERVE SUPPLY

• Femoral.
• Obturator.
• Sciatic.
• Common peroneal.
• Tibial.

40
UNLOCKING

• At the commencement of Flexion of the extended
  knee.
• Aim
• To slack the ligaments especially the cruciate.
• FEMUR Lateral rotation (the foot is on the
  ground)
• TIBIA Medial rotation.
• Muscle POPLITEUS

41
LOCKING

• The joint assumes the position of full extension.
• It becomes a rigid structure.
• The menisci are compressed between the tibial and
  femoral condyles.
• Tightening of all the major ligaments.
• The femur is medially rotated on the tibia.

42
RELATIONS

• Anterior
• Prepatellar bursa.

43
RELATIONS

• Posterior
• Boundaries and contents of Popliteal Fossa.
• Medial
• SGS muscles.
• Lateral
• Biceps femoris and common peroneal nerve.

44
STABILITY

• 1. Muscles
• QUADRICEPS particularly the inferior fibers of
  the vasti lateralis and medialis.
• Many sport injuries can be preventable through
  appropriate training and conditioning of the
  muscle.

45
STABILITY

• 2. Ligaments
• The knee joint can function well following a
  ligamentous strain if the quadriceps is intact.

46
INJURY OF THE JOINT

• TRIAD OF INJURY
• 1. Medial collateral ligament.
• 2. Medial meniscus.
• 3. Anterior cruciate ligament.
• The joint becomes swollen because it is filled
  with blood (hemarthrosis).

47
ANTERIOR CRUCIATE INJURY

• Tear of the anterior cruciate ligament is more
  common than the posterior.
• The tibia can be pulled excessively forward on
  the femur

48
POSTERIOR CRUCIATE INJURY

• The tibia can be pulled excessively backward on
  the femur.

49
INJURY OF THE CRUCIATE LIGAMENTS

• Management
• Knee is kept immobilized in slight flexion.
• Active physiotherapy of the quadriceps femoris at
  once.
• Operative repair (incase of torn of the capsule
  and collateral ligaments).

50
ANKLE JOINT

• TYPE
• Hinge synovial
• ARTICULATING BONES
• 1. Lower end of the tibia
• 2. Two malleoli.
• 3. Body of the talus.
• 4. The inferior transverse tibiofibular ligament
  deepens the socket for the body of the talus.

51
ANKLE JOINT CONTD

• CAPSULE
• Encloses the joint and attached near the
  articular margins except anteriorly where
  anteriorly it is attached to the neck of the
  talus in front of the articular edge.
• It is thin in front and behind.
• Posteriorly it fuses with the inferior
  transverse tibiofibular ligament.

52
SYNOVIAL MEMBRANE

• Lines the capsule.
• Reflected anteriorly on to the neck of the talus
  as far as the articular cartilage.
• May extend a short distance between the tibia and
  fibula.

53
LIGAMENTS

• MEDIAL( DELTOID)
• Attached by its apex to the tip of the medial
  malleolus.
• Composed of deep and superficial fibers.
• DEEP FIBERS
• Attached to the non articular area on the medial
  surface of the body of the talus.
• SUPERFICIAL FIBERS
• Attached to

54
LIGAMENTS CONTD

• Sustentaculum tali.
• Plantar calcaneonavicular ligament.
• Medial side of talus.
• Tuberosity of navicular bone.

55

• LATERAL LIGAMENT
• Weaker than the medial.
• It consists of three bands
• 1. ANTERIOR TALOFIBULAR
• Between the lateral malleolus and the lateral
  surface of the talus.
• 2. CALCANEOFIBULAR
• From the tip of the lateral malleolus to the
  lateral surface of the calcaneum.

56

• 3. POSTERIOR TALOFIBULAR
• Between the lateral malleolus and the posterior
  tubercle of the talus.

57
STABILITY OF THE JOINT

• 1. Shape of the articulating bones.
• 2. Strength of the ligaments.
• 3.The surrounding tendons.

58
RELATIONS
59
MOVEMENTS

• DORSIFLEXION
• Tibialis anterior, extensors of the digits and
  big toe, peroneus tertius.
• LIMITED BY
• Tension of tendo calcaneus.
• Posterior fibers of the medial ligament.
• Calcaneofibular ligament.

60

• PLANTAR FLEXION
• Tibialis posterior, peroneus (longus and brevis)
  gastrocnemius.
• LIMITED BY
• Tension of opposing muscles.
• Anterior fibers of the medial ligament.
• Anterior talofibular ligament.

61
