Title: Power Quality Tools


1

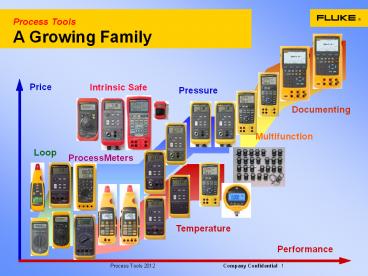

Process Tools A Growing Family
Price
Intrinsic Safe
Pressure
Documenting
Multifunction
Loop
ProcessMeters
Temperature
Performance
2
Does the Customer work on 4 - 20 mA loops?
3
Loop ToolsDo you work on 4-20 mA loops?
787 and 789 - Worlds only 1000V IEC1010 Cat III
DMMs with 20mA Current Source
  • Fluke Loop Tools are reliable, rugged and
    accurate
  • Required for basic maintenance of analog process
    loops

707 and 707Ex High Performance one handed
operation. Intrinsic safe (707Ex)
705 - Lowest cost, best in class performance
715 - Our highest precision portable mA/V source
4
Fluke 771 mA Process Clamp Meter
Innovative approach to measuring mA loop signals
  • Measure mA signals without breaking the loop
  • Best in class mA measurement accuracy and
    resolution
  • Save time and money troubleshooting PLC analog
    I/O and process loops
  • Detachable clamp with extension cable
  • Dual display with both mA and of span readouts
  • Measurement spotlight illuminates hard to see
    wires.

Measure 4-20 mA signals without breaking the loop.
5
Introducing the new Fluke 772 and 773
  • Fluke-771, 772 and 773 all
  • Measure 4 to 20 mA signals without breaking the
    loop
  • 772 features 771 users requested
  • mA source and simulate
  • 24V loop power
  • 773 adds (to 772 baseline)
  • Voltage source and measure
  • Two channel operation
  • Simultaneous mA source/measure
  • Analog output representing signal measured by
    clamp
  • Enables logging to an external DMM

These new features make up-selling easy from the
771
6
Fluke-787 and 789 ProcessMeter
  • Additional Fluke 789 Features
  • 24 V Loop supply
  • 100 larger dual display
  • Selectable HART mode
  • mA drive up to 1200 ohms (500 ohms on 787)
  • Zero and span buttons (0-100, mA output)
  • Easier calibration support
  • Infrared remote, use with Fluke-View Forms
  • Fluke 787 Key Features
  • Cat III 1,000 V Safety rated DMM
  • Fully functional 1000 V, RMS AC Voltmeter
  • mA source and simulate
  • mA step, auto-step and auto-ramping
  • Dual mA and display
  • External battery door

7
Best Under
Pressure
Fluke Pressure calibrators and gauges built for a
tough world
8
Pressure ToolsDo you work on pressure
transmitters, switches, gauges?
718 Worlds lightest pressure calibrator with
built-in pump
  • Excellent pressure transmitter calibration
    solutions
  • Switch test function saves time and makes a
    difficult task easy

New 700G series Gauges in 9 ranges from 15 psi to
10,000 psi
29 highly precise digital modules extend range
and capability
717-1G to 10,000G Cost effective field
solutions for a variety of applications
718Ex Intrinsic Safe Pressure calibration with a
CSA I.S. Class I, Div. 2 Group A-D certification
9
Fluke 717 Pressure Calibrator
  • 11 ranges for broad workload coverage (15 PSI,
    10,000 PSI new)
  • 0.025 Accuracy
  • 1/8 NPT pressure fitting
  • Non-corrosive gases and liquids
  • Extend measurement range with one of Flukes 29
    digital pressure modules
  • mA measure with loop supply
  • Integrated pressure switch test

Model Description
FLUKE-717 1G PRESSURE CALIBRATOR 1 PSIG
FLUKE-717 15G PRESSURE CALIBRATOR 15 PSIG
FLUKE-717 30G PRESSURE CALIBRATOR, 30 PSIG
FLUKE-717 100G PRESSURE CALIBRATOR, 100 PSIG
FLUKE-717 300G PRESSURE CALIBRATOR 300 PSIG
FLUKE-717 500G PRESSURE CALIBRATOR 500 PSIG
FLUKE-717 1000G PRESSURE CALIBRATOR 1000 PSIG
FLUKE-717 1500G PRESSURE CALIBRATOR 1500 PSIG
FLUKE-717 3000G PRESSURE CALIBRATOR 3000 PSIG
FLUKE-717 5000G PRESSURE CALIBRATOR 5000 PSIG
FLUKE-717 10000G PRESSURE CALIBRATOR 10000 PSIG
10
Fluke 718 Pressure Calibrator
  • 4 ranges, 1, 30, 100, 300 PSI
  • 0.025 Accuracy
  • Measure mA and pressure simultaneously
  • Integrated switch test
  • 24V loop supply
  • Integrated pressure switch test
  • Extend measurement range with one of Flukes 29
    digital pressure modules (8 I.S. pressure
    modules)

Model Description
FLUKE-718 1G PRESSURE CALIBRATOR 1 PSIG
FLUKE-718 30G PRESSURE CALIBRATOR 30 PSIG
FLUKE-718 100G PRESSURE CALIBRATOR 100 PSIG
FLUKE-718 300G PRESSURE CALIBRATOR 300 PSIG
FLUKE-718EX 30 I.S. PRESSURE CALIBRATOR 30 PSIG
FLUKE-718EX 100 I.S. PRESSURE CALIBRATOR 100 PSIG
FLUKE-718EX 300 I.S. PRESSURE CALIBRATOR 300 PSIG
FLUKE-71X HOSE KIT ACCESSORY
Pump up the pressure
11
Fluke 719 Electric Pressure Calibrator
  • Electric pump makes a difficult task simple
  • Best in class pressure and mA
  • 0.025 accuracy for pressure
  • 0.015 for mA
  • Feature rich
  • Fully functional loop calibrator
  • Pressure switch test
  • Uniquely targeted for pressure troubleshooting
    professional

Eliminates the hassle of hand pumping
12
New Fluke 700G Series Test Gauges
  • Nine pressure ranges from 15 PSI (1 bar) to
    10,000 PSI (690 bar)
  • High accuracy 0.05 total uncertainty for one
    year
  • Ease of use and ergonomic design help make
    pressure calibration easy
  • Work in areas classified to include explosive
    gasses, CSA and ATEX ratings
  • Log measurements in the field for upload to a PC
    using optional 700G/TRACK software
  • Rugged construction, reliable performance
  • Best in class 3-year Fluke warranty

13
Why choose Fluke pressure gauges?
  • Rugged ergonomic design, built to last
  • Three year warranty proves Fluke stands behind
    these gauges
  • Most other gauges in this class have 1-year
    warranty
  • High accuracy promises dependable calibration
    results
  • Simple and easy to use, get started without
    needing to read the manual
  • Option to buy logging software promises advanced
    features if desired

14
700G/TRACK Logging Software
  • 700G/TRACK software enables the 700G series
    gauges to log pressure measurements both in the
    field and in the lab
  • Demand logging direct to a PC
  • Configure gauges for a logging event in the field
  • Upload field logged measurement to a PC
  • Includes special PC to gauge cable

15
For a complete pressure testing solution, add a
test pump kit
  • Fluke-700PTPK Pneumatic test kit
  • Combine with any Fluke-700G04 to 700G07 to make a
    complete pressure testing kit
  • Generate pressure up to 600 PSI, 40 bar with the
    700PTP-1 test pump.
  • Fluke-700HTPK Hydraulic test kit
  • Combine with any Fluke-700G08 to 700G31 to make a
    complete pressure testing kit
  • Generate pressure up to 10,000 PSI, 700 bar with
    the included 700HTP-2 test pump
  • Both kits include connection hoses and fittings.
  • Leave the gauge connected to the pump and stow in
    the protective case

16
Pressure modules
  • 29 modules with full-scale values from 1" H20 to
    700 bar
  • 0.025 Accuracy, fully temperature compensated
    from 0C to 50C
  • 8 modules with IS rating
  • Measures Gage, Absolute, Vacuum and Dual
    Pressures
  • Single or differential input configurations
  • Interchangeable from calibrator to calibrator
  • Complete traceability is maintained

17
Achieving exceptional performance
  • Pressure sensors are very temperature sensitive
  • Modeling each sensor mathematically allows Fluke
    to remove most of the temperature error
  • each module contains a unique characterization
    stored in the module

18
Fluke 726 Precision Multifunction Process
Calibrator Do you need to calibrate temperature
and pressure?Do you need precision?
  • Best accuracy in a MPC
  • Wide workload coverage
  • Pressure enabled
  • Easy to use
  • (2) times more accurate than the 725
  • Totalize frequency
  • Store calibration to memory

Calibrate almost anything!
19
Intrinsically Safe Calibrators
  • For use in areas classified with the presence of
    explosive gasses
  • 718Ex and 725Ex utilize the (8) 700PEx pressure
    modules
  • Same basic functionality as the standard versions

20
Documenting Process Calibrators, Fluke-753 and
754Do you need to document your field
calibrations?
  • Source / measure all process parameters
  • Powerful, yet easy to use
  • Capture and document results
  • Support popular software
  • Truly handheld
  • Rugged and reliable
  • Upload to PC (753 and 754)
  • HART Capability (0nly for 754)

21
Measure and Source Capabilities
  • Measure Accuracy
  • Volts DC 0-300V 0.025 0.015 FS
  • Volts AC 0-300V 0.5 5 counts
  • mA 0-110mA 0.01
  • Freq. 1-50Khz 5 counts 0.015 FS
  • TC ENJLKTUBRSC 0.03 Deg C
  • Ohms 0-11,000 0.05 5 counts
  • RTD Pt100..1000,Cu, .03 Deg C
  • Pressure 29 modules 0.05 of range
  • Source Accuracy
  • Volts DC 0-15V 0.01 0.005 FS
  • mA 0-22mA 0.01 0.015 FS
  • Freq. 0-50Khz 1 count
  • TC ENJLKTUBRSC 0.2 Deg C
  • Ohms 0-11,000 ohms 0.01 4 counts
  • RTD Pt100..1000, 0.02 Deg C
  • Loop Pwr 26 volts

22
  • Company Name Fluke Corporation - India
  • Website http//www.fluke.com/fluke/inen/home/defa
    ult.htm
  • Address Division of DHR Holding India Pvt.
    Ltd. 10th Floor, Sigma
    Hiranandani Business Park, Powai
  • Mumbai, Maharashtra 400076
  • Contact Number 1 800 209 9110
