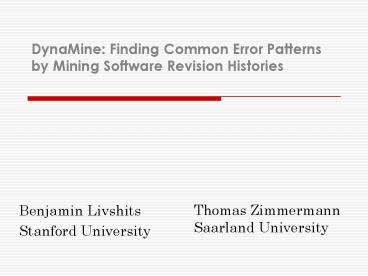

DynaMine Finding Common Error Patternsby Mining
Software Revision Histories

• Benjamin Livshits
• Stanford University

Thomas Zimmermann Saarland University
2
A Box Full of Nails

• A lot of
• promise
• potential
• excitement
• Not that many success stories
• Not sure what to apply it to
• Lets try this particularly exciting idea
• Miners looking at their tools
• Promises, promises
• Interesting usage patterns found by CVS mining
• Interesting error patterns found by CVS mining

3
My Background

• Tools for bug detection
• Analysis pointer analysis, etc.
• Mostly static, some dynamic
• Applications
• Security
• Buffer overruns
• Format string violations
• SQL injections
• Cross-site scripting
• HTTP response splitting
• Data lifetimes
• J2EE patterns
• Bad session stores
• Lapsed listeners
• Eclipse patterns
• Missing calls to dispose
• Not calling super
• Forgetting to deregister listeners

4
Glorified Bug Finding System

• A language for describing bug patterns
• Called PQL, see OOPSLA 2005
• 2 years of work
• Static and dynamic analysis combined
• We dont know what to look for
• Took a long time to find useful error patterns
• Programmers often dont recognize patterns
• Have pretty good tools
• How do we find more patterns to check?
• Want find error patterns in unfamiliar code

5
The Usual Suspects

• Much bug-detection research in recent years
• Focus generic patterns, sometimes
  language-specific
• NULL dereferences
• Security
• Buffer overruns
• Format string violations
• Memory
• Double-deletes
• Memory leaks
• Locking errors/threads
• Deadlock/race detection
• Atomicity
• Lets look at the space of error patterns in more
  detail

6
Classification of Error Patterns
NULL dereferences Buffer overruns Double-deletes L
ocks/threads
Generic patterns -- the usual suspects

• NULL dereferences
• Buffer overruns
• Double-deletes
• Locking errors/threads

Bugs in J2EE servlets
App-specific patterns particular to a system or a
set of APIs
Device drivers
Bugs in Linux code
Error Pattern Iceberg
7
Classification of Error Patterns
There are hundreds of WinAmp plugins out there
Generic patterns -- the usual suspects

• NULL dereferences
• Buffer overruns
• Double-deletes
• Locking errors/threads

Anybody knows any good error patterns specific to
WinAmp plugins?
App-specific patterns particular to a system or a
set of APIs
?

• Intuition
• Many other application-specific patterns exist
• Much of application-specific stuff remains a gray
  area so far
• Goal Lets figure out what the patterns are

8
Motivation Matching Method Pairs

• Start small
• Matching method pairs
• Only two methods
• A very simple state machine
• Calls must match perfectly, order matters
• Very common, our inspiration is
• System calls
• fopen/fclose
• lock/unlock
• GUI operations
• addNotify/removeNotify
• addListener/removeListener
• createWidget/destroyWidget
• Want to find more of the same
• And, if are lucky, more interesting patterns

9
DynaMine Our Insight

• Our problem
• Want to find patterns whose violation causes
  errors
• Want to find patterns for program understanding
• Our technique
• Look at revision histories
• Crucial observation
• Use data mining techniques to find method that
  are often added at the same time

Things that are frequently checked in together
often form a pattern
10
DynaMine Our Insight (continued)

• Now we know the potential patterns
• Profile the patterns
• Run the application
• See how many times each pattern
• hits number of times a pattern is followed
• misses number of times a pattern is violated
• Based on this statistics, classify the patterns
• Usage patterns almost always hold
• Error patterns violated a large number of the
  times, but still hold most of the time
• Unlikely patterns not validated enough times

11
Architecture of DynaMine
sort and filter
mine CVS histories
patterns
instrument relevant method calls
revision history mining
run the application
post-process
dynamic analysis
usage patterns
error patterns
unlikely patterns
report bugs
report patterns
reporting
12
Mining approach
13
Mining Basics

• Rely on co-change
• Simplification look at method calls only
• Look for interesting patterns in the way methods
  are called
• Example
• Sequence of revisions
• Files Foo.java, Bar.java, Baz.java, Qux.java

14
Mining Matching Method Calls

• Use our observation
• Methods that are frequently added simultaneously
  often represent a usage pattern
• For instance addListener()
  removeListener()

15
Data Mining Summary

• We consider method calls added in each check-in
• We want to find patterns of method calls
• Too many potential patterns to consider
• Want to filter and rank them
• Use support and confidence for that
• Support and confidence of each pattern
• Standard metrics used in data mining
• Support reflects how many times each pair appears
• Confidence reflects how strongly a particular
  pair is correlated
• Refer to the paper for details

16
Improvements Over the Traditional Approach

• Default data mining approach doesnt quite work
• Filters based on confidence and support
• Still too many potential patterns!
• Filtering
• Consider only patterns with the same initial
  subsequence as potential patterns
• Ranking
• Use one-line fixes to find likely error patterns

17
Matching Initial Call Sequences
1 Pair
3 Pairs 1 Pair
10 Pairs 2 Pairs
1 Pair 0 Pairs
0 Pairs
18
Using Fixes to Rank Patterns

• Look for one-call additions which likely indicate
  fixes
• Rank patterns with such methods higher

This is a fix! Move patterns containing
removeListener up
19
Applications under Study

• Apply these ideas to the revision history of
  Eclipse and jEdit
• Very large open-source projects
• Many people working on both, are all over the
  planet
• 122 on Eclipse
• 92 on jEdit
• Many check-ins
• Eclipse 2,837,854
• jEdit 144,495
• Long histories
• Eclipse since 2001
• jEdit since 2000

20
Some patterns(as promised)
21
Categories of Patterns

• Method calls during execution
• Care about the methods
• Care about the order
• Care about the parameters/return values
• Herere some common cases
• Matching method pairs
• State machines
• More complex patterns

22
Some Interesting Method Pairs (1)
23
Some Interesting Method Pairs (2)
Register/unregister the current widget with the
parent display object for subsequent event
forwarding
24
Some Interesting Method Pairs (3)
Add/remove listener for a particular kind of GUI
events
25
Some Interesting Method Pairs (4)
Use OS native locking mechanism for resources
such as icons, etc.
26
State Machines

• Order captured by a state machine
• Must be followed precisely omitting or repeating
  a method call is a sign of error.
• Simplest formalism for describing the object
  life-cycle.
• Matching method pairs specific case
• Very common in C
• Consider OS code
• Less common in Java, but

27
State Machines (1)

• o.enterAlignment o.redoAlignment
  o.exitAlignment
• Part of the org.eclipse.jdt.internal.formatter.Scr
  ibe package responsible for pretty-printing of
  code
• enterAlignment/exitAlignment pairs must match
• redoAlignment is invoked in exception cases

28
State Machines (2)

• o.beginCompoundEdit()
• (o.insert(...) o.remove(...))
• o.endCompoundEdit()
• Compound edits within jEdit can be undone at
  once
• beginCompoundEdit/endCompoundEdit act as brackets
• Other operations inbetween

29
State Machines (3)

• OS.PmMemCreateMC
• OS.PmMemStart OS.PmMemFlush OS.PmMemStop
• OS.PmMemReleaseMC
• Memory context manipulation (like memory pools)
• Wrappers around underlying OS functionality
• The middle part of the pattern is optional

30
More Complex Stuff (1)

• try
• monitor.beginTask(null, Policy.totalWork)
• int depth -1
• try
• workspace.prepareOperation(null,
  monitor)
• workspace.beginOperation(true)
• depth workspace.getWorkManager().beginU
  nprotected()
• return runInWorkspace(Policy.subMonitorFo
  r(monitor,
• Policy.opWork, SubProgressMonitor.PRE
  PEND_MAIN_LABEL_TO_SUBTASK))
• catch (OperationCanceledException e)
• workspace.getWorkManager().operationCance
  led()
• return Status.CANCEL_STATUS
• finally
• if (depth gt 0)
• workspace.getWorkManager().endUnprotecte
  d(depth)
• workspace.endOperation(null, false,
• Policy.subMonitorFor(monitor,
  Policy.endOpWork))
• catch (CoreException e)

31
More Complex Stuff (2)

• try
• monitor.beginTask(null, Policy.totalWork)
• int depth -1
• try
• workspace.prepareOperation(null,
  monitor)
• workspace.beginOperation(true)
• depth workspace.getWorkManager().beginU
  nprotected()
• return runInWorkspace(Policy.subMonitorFo
  r(monitor,
• Policy.opWork, SubProgressMonitor.PRE
  PEND_MAIN_LABEL_TO_SUBTASK))
• catch (OperationCanceledException e)
• workspace.getWorkManager().operationCance
  led()
• return Status.CANCEL_STATUS
• finally
• if (depth gt 0)
• workspace.getWorkManager().endUnprotecte
  d(depth)
• workspace.endOperation(null, false,
• Policy.subMonitorFor(monitor,
  Policy.endOpWork))
• catch (CoreException e)

32
More Complex Stuff (3)

• try
• monitor.beginTask(null, Policy.totalWork)
• int depth -1
• try
• workspace.prepareOperation(null,
  monitor)
• workspace.beginOperation(true)
• depth workspace.getWorkManager().beginU
  nprotected()
• return runInWorkspace(Policy.subMonitorFo
  r(monitor,
• Policy.opWork, SubProgressMonitor.PRE
  PEND_MAIN_LABEL_TO_SUBTASK))
• catch (OperationCanceledException e)
• workspace.getWorkManager().operationCance
  led()
• return Status.CANCEL_STATUS
• finally
• if (depth gt 0)
• workspace.getWorkManager().endUnprotecte
  d(depth)
• workspace.endOperation(null,
  false,
• Policy.subMonitorFor(monitor,
  Policy.endOpWork))
• catch (CoreException e)

33
Grammar for Workspace Transactions

• Requires human intelligence
• Requires a lot of it
• Is actually an excellent pattern havent seen
  runtime violations

S ? O O ? w.prepareOperation()
w.beginOperation() U
w.endOperation() U ? w.getWorkManager().beginUnp
rotected() S w.getWorkManager()
.operationCanceled() w.getWorkManager().
beginUnprotected()
34
Dynamic checking
35
Dynamically Check the Patterns

• Home-grown bytecode instrumentor
• Get a list of matching patterns
• Instrument calls to any of the methods to dump
  parameters
• Post-processing of the output
• Process a stream of events
• Find and count matches and mismatches
• o.register(d)
• o.deregister(d)
• o.deregister(d)

matched
???
mismatched
36
Experiments
37
Experimental Setup

• Applied to Eclipse and jEdit
• 3,600,000 lines of Java code combined
• Included many plugins
• Times
• 6 days to fetch and process CVS histories
• 30 minutes to compute the patterns
• An hour to instrument
• 15 minutes to run
• And we are done!

38
Experimental Summary

• Pattern classification
• 56 patterns total
• 13 are usage patterns
• 8 are error patterns
• 11 are unlikely patterns
• 24 were not hit at runtime
• Error patterns
• Resulted in a total of 264 dynamically confirmed
  pattern violations

39
Summary

• Knowing code patterns is important
• We explored using software histories
• Co-change often indicates patterns
• Use previous fixes (one-line changes) to drive
  error patterns
• Found interesting patterns
• Matching method pairs
• State machines
• More complex stuff
• Confirmed valid patterns
• Found pattern violations at runtime
• We have a paper in FSE 2005
