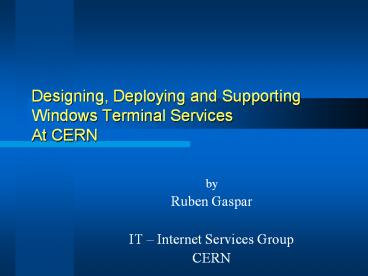

Designing, Deploying and Supporting Windows Terminal Services At CERN

1
Designing, Deploying and Supporting Windows
Terminal ServicesAt CERN

• by
• Ruben Gaspar
• IT Internet Services Group
• CERN

2
Overview

• What is?
• What for?
• Architecture
• Implementation
• System Management issues
• Conclusions

3
What are Terminal Services

• Alias Remote Desktop
• Allows a remote windows session from a computer
  to another computer, not necessarily running
  Windows
• Multi user environment supported in Windows 2000
  Server and Windows 2003 Server
• Also built-in Windows XP professional, but
  restricted to 1 simultaneous user (remote
  desktop)

4
Introduces duality on something that is today
very successful
Windows / Mac / Linux Client with
X-terminal software
Linux / Mac / Windows Client with remote
desktop software
LXPLUS
Windows Terminal Services
5
Motivations

• A step forward in Linux / Windows / Mac
  integration
• Reduces (but does not replace) the need for
• VMWare, Virtual PCs and windows emulators, Multi
  boot installation,
• does not replace because network access is
  required
• Users motivations
• I am on Macintosh/Linux and I need access to
  Windows applications
• I am not at CERN and I want access to the CERN
  environment
• Security (Controls, ACB, VPN, )
• I do not have that particular application
  installed, I cannot install it, but I need it.
• License reasons
• Complex installations centrally managed
• I have a slow computer and I want a faster one

6
The service

• Service started at 1st April 2004 following March
  Desktop Forum
• Limitation of 50 simultaneous sessions (manpower
  issue)
• Well defined Service Manifest establishes an SLA
• Active sessions have no time limit
• Idle and disconnected sessions will be logged off
  after 18 hours
• RSA RC4 (128 bits encryption key) required to
  connect
• Profile limited to 500 MB
• Only core 16 applications available to users.
  Additional applications can be installed only
  following management approval and must pass
  technical criteria. Dedicated service may be
  necessary for some applications (see later)
• It becomes the recommended solution for other
  services
• Public PC areas
• GPRS
• Designed to be clonable and customized to cover
  specific needs, while preserving central
  manageability (see later)
• Complete documentation available in the Internals
  site

7
Core Applications
8
The architecture

• A farm of servers behind a unique name
  cernts.cern.ch
• Load balancing automated across farm nodes
  session directory
• Able to reconnect to the correct node on
  disconnected sessions
• User profiles and settings independent on the
  application server node
• License Server provides a client pc with rights
  to access an application server
• Highly scalable, redundant, reliable

9
Architecture - Session Directory
5. Server authenticates JaneDoe and checks
Session Directory for existing session
8. Session broken down on TS-2. Client
reconnects to load-balancer with token and
credentials
TS-3
Session Directory
6. SD informs TS that user has a session on TS
3
TS-1
LB-1 TS-3JaneDoe
LB-1 TS-3JaneDoe
LB-1 TS-3JaneDoe
JaneDoe
JaneDoe
Load-Balancer (LB-1)
3. Server responds
1. User connects to load-balancer
7. TS returns user credentials with token and
tells client to reconnect
TS-2
4. User enterscredentials
2. Load Balancer (F5, Radware) routes user to
least-loaded server
9. Load-balancer examines token and directs
connection to TS3, passing through credentials
User session on TS-3
10. Original session from TS3 presented to user
TS-3
10
User profiles and settings

• Terminal services profile different from standard
  NICE profiles
• Avoid incompatibilities with desktop application
  settings
• One profile server for Windows terminal services
• Provide an homogenous look and feel (feeling of
  connecting always to the same machine)
• Desktop, Favorites, My Documents are redirected
• Same home directory server
• Provide an homogenous, similar environment
  between desktop and TS sessions

11
4
1
CERNTS.cern.ch
2
6
Standard Windows Desktop session
cernts03
cernts04
cernts0X
cernprofts
5
7
cernprof
3
LICENSE Server
Home Directory Server (My documents, Favorites,
Desktop)
12
License Server

• All Application servers in the farm require the
  existence of a license server that keeps tracks
  of client certificates
• This service was installed in the session
  directory server
• It is also used by non-central terminal services
  farms
• A central accounting mechanism for all
  Application servers within the organization
• Licenses rely on the Microsoft Campus agreement

13
Technical implementation

• Currently two machines CERNTS03/04
• Load balancing installed
• All machines in the same network segment.
  Foreseen 8 IPs.
• Data and System located in different Volumes
• Careful permission settings on File System
• Write privilege only on User profile location
• Quotas possible but not yet enforced
• Dedicated server for the session directory and
  license server
• Dedicated server for terminal service profiles
• Configured as Windows roaming profile servers
• Can be used also by non-official terminal servers
• All based on Dual Xeon CPU and Server 2003
  technology
• Standard backup mechanism
• Several scripts developed for monitoring the
  service and logging usage
• Aim to reach a complete automated service

14
Using the service

• Windows Terminal Services site
  http//cern.ch/terminalservices/
• Registration is mandatory
• Under discussion to void this requirement
• User can manage its TS profile
• Internet explorer users can connect from the
  browser
• http//cern.ch/wts/TSWeb/cerntslb.htm
• Service address cernts.cern.ch
• Client software available to all platforms
• Detailed instructions and documentation on the
  WTS web site
• See Windows clients, Linux clients, Macintosh
  clients

15

• DEMO

16
Terminal services site
17
Outlook 2003 at WTS
18
Saving a doc in your WTS profile
19
Usage Statistics

• Registered users 782 - Active Users 460
• License server has distributed 400 client
  licenses
• Client licenses expires after 90 days
• Peak of simultaneous sessions 45
• Remember Max limit set to 50
• Average sessions per day 36
• Average session duration per day 10h20

20
Average Simultaneous sessions
21
Applications Usage
22
Conclusions and Issues

• Feedback from the User community encouraging
• Stable set of applications
• Manpower available for long term service
  evolution still unclear
• Remember Max 50 users limit will be hit soon
• Applications management and Security (Patch, hot
  fix installation)
• Many requests to install additional application,
  centrally managed
• No clear process to decide what is core and non
  core
• Many pending requests from other groups to have
  cloned services running specific applications
• Currently we can give only technical advices
• They need to use official service infrastructure,
  profiles, licensing
• LHCB build service
• AB/CO controls applications
• ST/MA Asset Tracking and Maintenance Management
• EP/SFT for several custom applications
• IT/PS for some engineering applications
• Support (support-terminalservices_at_cern.ch)
• Second and third line support missing
• User questions and answers

23

• Questions
