The Use of Speech in SpeechtoSpeech Translation

1

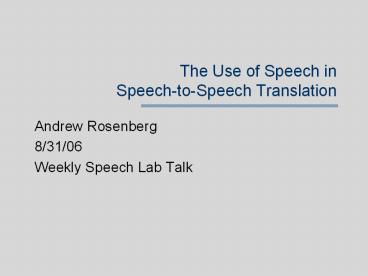

The Use of Speech in Speech-to-Speech Translation

• Andrew Rosenberg
• 8/31/06
• Weekly Speech Lab Talk

2
Candidacy Exam Organization
Use and Meaning of Intonation
Automatic Analysis of Intonation
Applications
Speech-to-Speech Translation
L2 Learning Systems
3
The Use of Speech in Speech-to-Speech Translation

• The Use of Prosodic Event Information
• On the Use of Prosody in a Speech-to-Speech
  TranslatorStrom et al. 1997
• A Japanese-to-English Speech Translation System
  ATR-MATRIXTakezawa et al. 1998
• Cascaded / Loose Coupled Approaches
• Janus-III Speech-to-Speech Translation in
  Multiple Languages Lavie et al. 1997
• A Unified Approach in Speech Translation
  Integrating Features of Speech Recognition and
  Machine TranslationZhang et al. 2004
• Integrated Approaches
• Finite State Speech-to-Speech TranslationVidal
  1997
• On the Integration of Speech Recognition and
  Statistical Machine TranslationMatusov 2005
• Coupling vs. Unifying Modeling Techniques for
  Speech-to-Speech TranslationGao 2003

4
The Use of Speech in Speech-to-Speech Translation

• The Use of Prosodic Event Information
• On the Use of Prosody in a Speech-to-Speech
  TranslatorStrom et al. 1997
• A Japanese-to-English Speech Translation System
  ATR-MATRIXTakezawa et al. 1998
• Cascaded / Loosely Coupled Approaches
• Janus-III Speech-to-Speech Translation in
  Multiple Languages Lavie et al. 1997
• A Unified Approach in Speech Translation
  Integrating Features of Speech Recognition and
  Machine TranslationZhang et al. 2004
• Integrated / Tightly Coupled Approaches
• Finite State Speech-to-Speech TranslationVidal
  1997
• On the Integration of Speech Recognition and
  Statistical Machine TranslationMatusov 2005
• Coupling vs. Unifying Modeling Techniques for
  Speech-to-Speech TranslationGao 2003

5
On the Use of Prosody in a Speech-to-Speech
TranslatorStrom et al. 1997

• INTARC - German-English Translator produced for
  VERBMOBIL project.
• Spontaneous, limited domain (appointment
  scheduling)
• 80 minutes of prosodically labeled speech
• Phrase Boundary (PB) Detector
• Gaussian classifier based on F0, energy and time
  features with a 4 syl. window (acc. 80.76)
• Focus Detector
• Rule based approach Identifies location of
  steepest F0 decline (acc. 78.5)
• Syntactic parsing search space is reduced by 65
• Baseline syntactic parsing uses
• Decoder factor product of acoustic and bi-gram
  scores
• Grammar factor grammar model probability of a
  parse using the hypothesized word
• Prosody factor 4-gram model of prosodic events
  (focus and PB)
• Semantic parsing search space is reduced by 24.7
• The semantic grammar was augmented, labeling
  rules as segment-connecting(SC) and
  segment-internal (SI)
• SC rules are applied when there is a PB between
  segments, SI are applied when there are not.
• Ideal phrase boundaries reduced the number of
  hypotheses by 65.4 (analysis trees by 41.9)
• Automatically hypothesized PBs required a backoff
  mechanism to handle errors and PBs that are not
  aligned with grammatical phrase boundaries.
• Prosodically driven translation is used when deep
  transfer (translation) fails
• A focused word determines (probabilistically) a
  dialog act which is translated based on available
  information from the word chain.

6
A Japanese-to-English Speech Translation System
ATR-MATRIXTakezawa et al. 1998

• Limited domain translation system (Hotel
  Reservations)
• Cascaded approach
• ASR sequential model 2k word vocabulary
• MT syntactically driven 12k word vocabulary
• TTS CHATR (now unit selection, then
  concatenative)
• Early Example of Interactive Speech-to-Speech
  Translation
• When the system has low confidence in either
  recognition or MT outputs, it prompts the user
  for corrections.
• Speech Information is used in three ways in
  ATR-MATRIX
• Voice Selection
• Based on the source voice, either a male or
  female voice is used for synthesis
• Hypothesized phrase boundaries
• Using pause information along with POS N-gram
  information the source utterance is divided into
  meaningful chunks for translation.
• Phrase Final Behavior
• If phrase final rise is detected, it is passed to
  the MT module as a lexical item potentially
  indicating a question.

7
The Use of Speech in Speech-to-Speech Translation

• The Use of Prosodic Event Information
• On the Use of Prosody in a Speech-to-Speech
  TranslatorStrom et al. 1997
• A Japanese-to-English Speech Translation System
  ATR-MATRIXTakezawa et al. 1998
• Cascaded / Loosely Coupled Approaches
• Janus-III Speech-to-Speech Translation in
  Multiple Languages Lavie et al. 1997
• A Unified Approach in Speech Translation
  Integrating Features of Speech Recognition and
  Machine TranslationZhang et al. 2004
• Integrated / Tightly Coupled Approaches
• Finite State Speech-to-Speech TranslationVidal
  1997
• On the Integration of Speech Recognition and
  Statistical Machine TranslationMatusov 2005
• Coupling vs. Unifying Modeling Techniques for
  Speech-to-Speech TranslationGao 2003

8
Janus-III Speech-to-Speech Translation in
Multiple LanguagesLavie et al. 1997

• Interlingua and Frame-Slot based Spanish-English
  translation
• limited domain (conference registration)
  spontaneous speech
• Cascaded Approach
• Two semantic parse techniques
• GLR Interlingua parsing (transcript 82.9 ASR
  54)
• Manually constructed grammar to parse input into
  interlingua
• robust, doesnt not require grammatically
  correct input
• Search for the maximal subset covered by the
  grammar
• Generation is performed by an interlingua
  generator
• Phoenix (transcript 76.3 ASR 48.6)
• identifies key concepts and their structure
• parsing grammar contains specific patterns which
  represent domain concepts
• The patterns are then compiled into a recursive
  transition network
• Each concept has one or more fixed phrasings in
  the target language
• Phoenix is used as a backoff when GLR fails.
• Transcript 83.3 ASR 63.6
• Late stage disambiguation
• Multiple translations are processed through the
  whole system.
• Translation hypothesis selection occurs just
  before generation using scores from recognition,
  parsing and discourse processing.

9
A Unified Approach in Speech Translation
Integrating Features of Speech Recognition and
Machine TranslationZhang et al. 2004

• Process many hypotheses, then select one.
• In a cascaded architecture
• HMM-based ASR produces N-best recognition
  hypotheses
• IBM Model 4 MT processes all N.
• Rescore MT hypotheses based on weighted
  log-linear combination of ASR and MT features.
• Construct the feature weight model by optimizing
  a translation distance metric (mWER, mPER, BLEU,
  NIST)
• Experiment Results
• Corpus 162k/510/508 Japanese-English parallel
  sentences
• Baseline no optimization of MT features
• Substantial improvement was obtained by
  optimizing feature weights based on distance
  metric
• Additional improvement was achieved by including
  ASR features
• Translation of N-best ASR hypotheses improved
  sentence translation accuracy of incorrectly
  recognized 1-best hypotheses by 7.5

10
The Use of Speech in Speech-to-Speech Translation

• The Use of Prosodic Event Information
• On the Use of Prosody in a Speech-to-Speech
  TranslatorStrom et al. 1997
• A Japanese-to-English Speech Translation System
  ATR-MATRIXTakezawa et al. 1998
• Cascaded / Loosely Coupled Approaches
• Janus-III Speech-to-Speech Translation in
  Multiple Languages Lavie et al. 1997
• A Unified Approach in Speech Translation
  Integrating Features of Speech Recognition and
  Machine TranslationZhang et al. 2004
• Integrated / Tightly Coupled Approaches
• Finite State Speech-to-Speech TranslationVidal
  1997
• On the Integration of Speech Recognition and
  Statistical Machine TranslationMatusov 2005
• Coupling vs. Unifying Modeling Techniques for
  Speech-to-Speech TranslationGao 2003

11
Finite-State Speech-to-Speech TranslationVidal
1997

• FSTs can naturally be applied to translation.
• FSTs for statistical MT can be learned from
  parallel corpora. (OSTIA)
• Speech input is handled in two ways
• Baseline cascaded approach
• Integrated approach
• Create an FST on text, replace each edge with an
  acoustic model of the lexical item
• A major drawback of using this approach is large
  training data requirement.
• Align the source and target utterances, reducing
  their asynchronicity
• Cluster lexical items, reducing the vocabulary
  size
• Proof of concept experiment
• Text 30 lexical items used in 16k paired
  sentences (Spanish- English)
• Greater than 99 translation accuracy is achieved
• Speech 50k/400 (training/testing) paired
  utterances, spoken by 4 speakers
• Best performance 97.2 translation acc. 97.4
  recognition accuracy
• Requires inclusion of source and target 4-gram
  LMs in FST training.
• Travel domain experiment
• Text 600 lexical items in 169k/2k paired
  sentences
• 0.7 translation WER w/ categorization 13.3 WER
  w/o
• Speech 336 test utterances (3k words) spoken by
  4 speakers

12
On the Integration of Speech Recognition and
Statistical Machine TranslationMatusov et al.
2005

• Use word lattices weighted by HMM ASR scores as
  input to a weighted FST for translation
• Noisy Channel Model
• Using an alignment model, A
• Instead of modeling the alignment, search for the
  best alignment
• Evaluation
• Material 4 parallel corpora
• Spontaneous speech in the travel domain
• 3k - 66k paired sentences in Italian-English,
  Spanish-English and Spanish-Catalan
• Vocabulary size 1.7k-15k words
• On all metrics (mWER, mPER, BLEU, NIST), the
  translation results are as follows
• Correct text
• Word lattice w/ acoustic scores
• Fully integrated ASR and MT (FUB Italian-English
  only)
• Word lattice w/o acoustic scores
• Single best ASR hypothesis (lower mPER than
  lattice w/o scores on FUB I-E)
• Denser ASR lattices yield reduced translation WER
  (on FUB Italian-English)

13
Coupling vs. Unifying Modeling Techniques for
Speech-to-Speech TranslationGao 2003

• Application of direct modeling to ASR, with the
  goal of direct modeling of interlingua text for
  MT.
• A direct model of target text from source
  acoustics could also be constructed using this
  approach.
• Composing models (e.g., noisy channel models) can
  lead to local or sub-optimal solutions
• Direct Modeling tries to avoid these by creating
  a single maximum entropy model
• p(textacoustics,...)
• Direct modeling can also include other
  non-independent observations (features).
• Major considerations
• To simplify computational complexity, acoustic
  features are quantized.
• Since the feature vector can get very large,
  reliable feature selection is necessary.
• In preliminary experiments, 150M features were
  reduced to 500K via feature selection

14
The Use of Speech in Speech-to-Speech Translation

• The Use of Prosodic Event Information
• On the Use of Prosody in a Speech-to-Speech
  TranslatorStrom et al. 1997
• A Japanese-to-English Speech Translation System
  ATR-MATRIXTakezawa et al. 1998
• Cascaded / Loosely Coupled Approaches
• Janus-III Speech-to-Speech Translation in
  Multiple Languages Lavie et al. 1997
• A Unified Approach in Speech Translation
  Integrating Features of Speech Recognition and
  Machine TranslationZhang et al. 2004
• Integrated / Tightly Coupled Approaches
• Finite State Speech-to-Speech TranslationVidal
  1997
• On the Integration of Speech Recognition and
  Statistical Machine TranslationMatusov 2005
• Coupling vs. Unifying Modeling Techniques for
  Speech-to-Speech TranslationGao 2003

15
Thank you.
