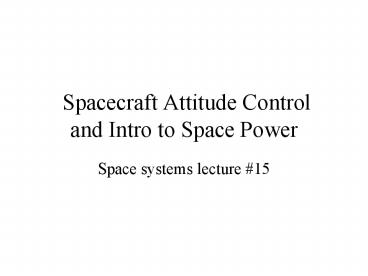

Spacecraft Attitude Control and Intro to Space Power

1
Spacecraft Attitude Controland Intro to Space
Power

• Space systems lecture 15

2
Agenda

• Angular Momentum
• Spinning satellites
• Active Attitude Control
• Space Power
• Homework 4

3
Angular momentum

• A satellite is a rigid body with an angular
  momentum H ?I (mivixri)M VCMx r
• Satellite has both internal ( about CM -Center of
  Mass) and external motion components of angular
  momentum
• Internal angular momentum and its changes
  determine attitude control
• Internal angular momentum is changed by torques

4
Moment of Inertia
5
Spinning satellites
H
Some satellite simply spin like gyroscopes to
maintain attitude and control precession to
control it
6
Attitude Control Tools

• Reaction control jets
• Magnetic torquers
• Reaction wheels

7
Key Equations
8
Momentum Wheels
Many satellites use momentum wheels to control
attitude
9
Momentum Wheels
N
S
Magnetic field
Many satellites use on board magnetic torque
rods to maintain attitude and control it
10
Key Equations
11
Momentum Dump
Momentum wheels
Desired range
Rotation frequency
12
Momentum Dump
Satellites dump angular momentum by torquing the
momentum wheels and firing control thrusters to
produce an opposing torque
13
Celestial Sphere
14
Clementine
Clementine used full attitude determination and
control since it the spacecraft was made to
gather imaging data and all cameras were bolted
to the spacecraft frame
15
Star tracker algorithm
Algorithm drew 100s of triangles among stars and
compared lengths of sides to table values to find
constellations
16
Clementine Image of Earth Over Moon
Clementine achieved high camera pointing accuracy
due to good attitude control Attitude control is
vital to mission success in space as well as life
17
Overshoot and correction
18
Space Power Systems
19
Agenda

• Space Power Systems Overview
• Batteries
• Solar Power
• Radioisotope Thermal Generators RTGs
• Fuel cells
• Auxiliary Power Units
• Space Nuclear power

20
Batteries

• Nickel Cadmium
• Very Rechargeable
• Mature technology
• Nickel Hydrogen
• New
• Very Rechargeable
• Good Discharge Recovery

21
Batteries

• Lead Acid
• Very Rechargeable
• Mature technology
• Heavy
• Lithium
• High energy
• Light
• Zinc Silver
• Very High Current

22
Battery Comparison
23
Nickel Hydrogen Battery
24
Primary Power Sources
Inner planets Solar Panels
Outer planets RTGs
25
Solar System
26
Solar Batteries

• Oldest Source of Continual Power in Space
• 100W/ meter2
• Silicon
• Low Efficiency10
• Radiation Sensitive
• Low cost
• Gallium Arsenide GaAs
• Efficient20
• Radiation Insensitive
• Costly

27
Solar Batteries
28
Orbits Radiation Belts
Solar batteries are degraded by radiation in the
van Allen Belts and so must be either hardened or
kept out of van Allen penetrating orbits
29
Radiation Degradation of Solar Battery Material
30
Orbits Eclipse Duration
31
Homework 4

• 1. (30 points)Use the equation for angular
  momentum conservation to calculate the of
  rotations a reaction wheel of 1cm thickness and
  10 cm diameter and mass 10 grams must turn in
  order to rotate a 1ton 1meter diameter 1meter
  long satellite through 30degrees.
• 2.(30points) How much battery mass at 40Whr/kg ,
  assuming 50 power margin, for a satellite in
  tight orbit around Phobos , the inner Moon of
  Mars, using 100W continuously ( assume spherical
  Phobos at 1.9gm/cc density)
• 3. (30points) How much solar panel area do we
  need for this probe to operate in low mars orbit
  with a 50 power margin.
