An Overview of DOE-Funded Geothermal R

1

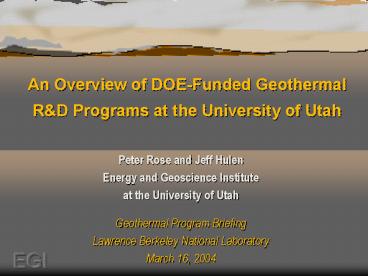

An Overview of DOE-Funded Geothermal RD
Programs at the University of Utah

• Peter Rose and Jeff Hulen
• Energy and Geoscience Institute
• at the University of Utah
• Geothermal Program Briefing
• Lawrence Berkeley National Laboratory
• March 16, 2004

EGI
2
AGENDA

• Tracer Technology, Chemical Stimulation,
  Electrical Geophysics, Two-Phase Flow
  MeasurementPeter Rose
• Geology, Hydrothermal Alteration, Geochemistry,
  Remote Sensing..Jeff Hulen

EGI
3
Tracing Fluid Flow in Geothermal Reservoirs
Peter Rose and Mike Adams

• Objective
• To develop tools for tracing injected fluids and
  interpreting fluid-flow processes

EGI
4
Tracer Technology AccomplishmentsPeter Rose and
Mike Adams

• Liquid-phase tracers
• Laboratory development and field testing of a
  family of eight fluorescent tracers for use in
  high temperature (gt300oC) reservoirs
• Detection limits reduced by a factor of 100 to 40
  parts per quadrillion through laser-induced-fluore
  scence detection
• The development and demonstration of the use of
  fluorescent compounds as thermally reactive
  tracers
• The evaluation of analytical methods for
  estimating reservoir pore volume from tracer data
• Vapor-phase tracers
• Laboratory development and field testing of
  several tracers for application in
  steam-dominated reservoirs
• Solubility modeling for the interpretation of
  return-curve patterns
• Reduction of detection limit by factor of 100
  using solid-phase micro-extraction

EGI
5
Technology Transfer Adoption of the Naphthalene
Sulfonate Tracers by Geothermal Operators
EGI
6
Follow-On Tracer Research

• Develop adsorptive tracers for characterizing
  reservoir fracture surface areas
• Develop and demonstrate two-phase tracers for
  measuring flow processes in liquid-depleted
  reservoirs

EGI
7
National Laboratory and Industry Collaboration

• Paul Spielman, Coso Operating Company
• Mike Shook, Idaho National Energy and
  Environmental Laboratory

EGI
8
Chemical Stimulation of Wellbores and
Near-Wellbore FormationsPeter Rose and Mike Adams

• Objectives
• To design and evaluate chemical dissolution
  agents for use in wellbore stimulation
• Evaluate the feasibility of using chemical agents
  for stimulating near-wellbore formations as an
  alternative to hydraulic and thermal stimulation
  approaches

EGI
9
Chemical Stimulation of Wellbores and
Near-Wellbore Formations (Cont.)Peter Rose and
Mike Adams

• Approach
• Determine the decay kinetics and reactivity of
  candidate dissolution agents under conditions
  that simulate a geothermal environment
• Strong mineral acids with improved acid
  inhibition
• Weak organic acids
• Chelating agents
• Conduct wellbore field experiments to verify the
  laboratory experiment
• Model the wellbore mineral dissolution process
  using reactive-transport models and calibrate
  using field data
• Develop models of near-wellbore stimulation
  processes and conduct experiments to verify
  models

EGI
10
Strong University, National Laboratory, and
Industry Collaboration

• Derek Elsworth, Penn State
• Joe Moore, U of U
• Carol Bruton, LLNL
• Karsten Pruess and Tianfu Xu, LBNL
• Paul Spielman, COC

EGI
11
Measuring Two-Phase Flow Rates at Geothermal
WellheadsPeter Rose and John Stodt

• Objective To design, fabricate and evaluate
  electrical-resistivity methods and
  instrumentation for measuring two-phase flow
  rates (and thereby enthalpy) continuously and in
  real time at geothermal wellheads

EGI
12
Prototype Resistivity Meter Designed and
Fabricated by Paul Spielman at Coso Operating
Company
EGI
13
Controller and Data Logger Designed and
Fabricated by John Stodt at EGI
EGI
14
Electrical GeophysicsPhil Wannamaker

• Objectives
• Integrated geothermal systems modeling
  (Karaha-Telaga Bodas andesitic analog)
• Resolving system structural ambiguities (Dixie
  Valley single/multi fault controversy)
• New-generation EM surveying technology brought to
  geothermal (MT/DC multi-profile array system from
  mining industry)

EGI
15
Electrical Geophysics (contd) Phil Wannamaker

• Objectives and New Directions
• Integration with 3D reservoir modeling (STAR and
  TETRAD simulators)
• Merging EM resolution principles with inversion
  regularization (2D 3D)
• Economical, reliable, publicly available 3D
  imaging for industry needs

EGI
