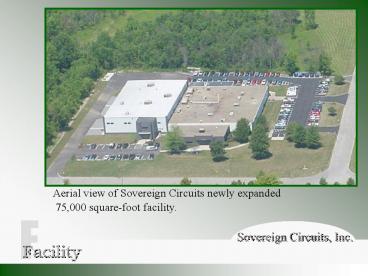

Aerial view of Sovereign Circuits newly expanded
75,000 square-foot facility.
F
Sovereign Circuits, Inc.
Facility
2
OPERATIONS
ENGINEERING
SALES
3
P
Pre-Production
4
Complete traceability of materials from start to
finish.
Operator Identifying Cores
STORES DEPARTMENT
Precise location of order instantly available.
STORES
Scanning Traveler
5
Class 10,000 Clean Room
c
Chem Clean Photo
6
Automatic Processing of Exposed Inner Layers
D
evelop exposed layer
E
tch developed layer
S
trip resist from etched layer
? Thin core capabilities down to 2 mils. ? Cupric
chloride etch system. ? Capable of 3 mil lines
and spaces.
Minimal Handling
D
DES Line
7
Automatic alignment and post etch punching of
inner layer cores.
S
? 4 slot, 8 hole tooling system for ultimate
registration.
Inspection of layers and plated boards for defect
detection.
S
? CAD Data Reference Capabilities
A
Automatic Optical Inspection
8
L
Lay-Up Room
12 Pin Tooling 4 Stages of Lay-Up
Machining of component parts for flex and
rigid-flex boards.
Clicker Press
Precision Fab
9
B
Bonding
Multilayer Bonding 2 Autoclave Presses 1 Full
Vacuum Hydraulic Press
Autoclaves provide versatility of pressure,
temperature, and mixed panel size loading. Full
vacuum hydraulic allows for lower pressure on
conventional multilayer products.
10
Plasma etch for predictable etchback or desmear
of drilled holes.
All drills have air bearing spindles. 3
Multi-head drills for hole sizes down to 11
mil. 1 Single spindle drill for hole sizes down
to 6 mil. Real Time X-ray for assessment of
optimum drilling location.
D
Drilling
11
A clean, well lit, safe, and airy facility,
staffed by well trained personnel.
Careful handling of product at all times is of
paramount importance, including movement between
departments.
12
C
Chem Lab
Using Lab Wizard software.
Chemical Analysis Lab Continual monitoring and
analysis of all chemical processes. Statistical
Process Control
13
Electroless Copper Deposition
Wet Process Area Includes
electroless, pattern plate, precious metals
plate, tab plate, hot air solder level, tin-lead
plate, and hot oil fuse.
E
Electroless/Electrolytic Lines
Precious Metals Electroplating Matte
Nickel Bright Nickel Hard and Soft Gold
Palladium
Pattern Plate Copper and Tin
14
For in-house treatment of chemical effluents to
meet E.P.A. requirements.
w
Waste Treatment Plant
15
Spray Coat Machine Gives even and predictable
thickness, eliminates 'skips,' as seen on
screened soldermasks. Colors available - green,
red, blue, black and clear. Dry film soldermask
also available.
L
Liquid Photoimageable Soldermask
16
3 'Microcraft' Moving Probe Test Machines,
capability to 500 V 1 Trace 948 Tester (Bed of
Nails), capability to 100 V Static Hi-Pot Test to
1500 V
E
Electrical Test
17
A Selection of Finishes Are Available
S
Hot Air Solder Level, for Many Common
Applications.
Omikron Immersion White Tin - When Flatness of
Solderable Area is Critical Environmentally
Friendly.
S
S
Fused Tin - Lead.
S
Nickel, Palladium, and Gold (Hard and Soft Gold).
S
Pure Tin Over Nickel.
Screen Printable Carbon Ink.
S
OSP Coating of Bare Copper.
S
ALL WITH OR WITHOUT SILKSCREEN LEGEND.
18
'V' Scoring Machine
2 Multi-Spindle Routers 1 Single Spindle Router
'Skip' Scoring Bevels Countersinks Counterbores
R
Routing / Profile
19
Visual Inspection Confirmation of Drawing /
Specification Requirements Certifying Compliance
I
Inspection
20
P
Physical Requirements Testing
21
B
Product Diversity
Boards
RIGID
RIGID FLEX
CORE
Illustrated - ? 16 Layer Rigid with Ball Grid
Array ? 8 Layer with Aluminum Passive Core ? 10
Layer Rigid Flex with Blind Vias and Nickel /
Gold
22
s
Shipping
Quick-Turn Delivery
Express Delivery
Standard Delivery
Courier Service Available
ALL THE ELEMENTS FOR SUCCESS
23
For more information or to schedule a factory
visit, please contact us at Sovereign Circuits,
Inc. 12080 DeBartolo Drive North Jackson, Ohio
44451 Phone [phone] Fax
330-538-2434 e-mail sales_at_sovereign-circuits.com
Or Visit our Website www.sovereign-circuits.com
