Title: Rapid Realization of Communication Services System RRComSSys


1
Rapid Realization of Communication Services
System (RRComSSys)

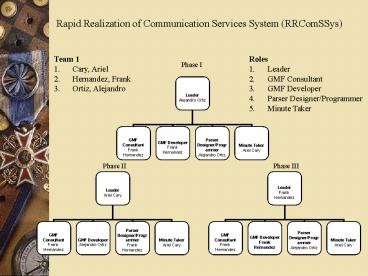

  • Team 1
  • Cary, Ariel
  • Hernandez, Frank
  • Ortiz, Alejandro
  • Roles
  • Leader
  • GMF Consultant
  • GMF Developer
  • Parser Designer/Programmer
  • Minute Taker

Phase I
Phase II Phase III
2
Project Overview
  • Rapid Realization of Communication Services
    System, a system that will allow users to create
    communication models using a declarative
    Communication Modeling Language (CML) with a
    user-friendly graphical infrastructure.
  • This system allows the implementation of a
    variety of communication models, simply by
    dragging shapes and connecting them into the
    modeling environment, and in a matter of minutes
    get a working model implemented to communicate
    any number of end users.

3
Project Schedule
4
User Interfaces Creation
Visual Development Environment (VDE)
5
User Interface Execution
6
Package Decomposition
7
Comm. Modeling Environment
8
Schema Transformation Engine
9
Synthesis Engine
10
Simplified Modeling Class Diagram
11
Profile Metamodel
12
Profile Modeling Environment
13
Profile Execution
14
Test Case

15
Use Case
  • Use Case Create Terminal
  • Use Case ID 1.8_CrtTerm
  • Use Case Level High-level.
  • Scenario The CVM developer puts a terminal shape
    on the canvas.
  •   Actor CVM Developer.
  •   Description
  • 1.     The CVM developer clicks the shape on the
    shape palette that he or she wants to include in
    the CVM model.
  • 2.     The system highlights the shape on the
    palette.
  • 3.     While holding the mouse button pressed,
    the CVM developer drags the shape onto the canvas
    and releases the mouse button.
  • 4.   The system draws the selected shape on the
    canvas and assigns default values for its
    attributes.

16
Sequence Diagram
17
Statechart Diagram
18
  • Questions?
  • Madness? THIS IS SPARTA!
