Using SystemonaChip as a Vehicle for VLSI Design Education

1

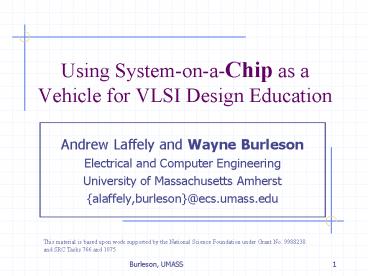

Using System-on-a-Chip as a Vehicle for VLSI
Design Education

• Andrew Laffely and Wayne Burleson
• Electrical and Computer Engineering
• University of Massachusetts Amherst
• alaffely,burleson_at_ecs.umass.edu

This material is based upon work supported by the
National Science Foundation under Grant No.
9988238 and SRC Tasks 766 and 1075
2
Challenges in VLSI Education

• Advancing Processing Technology
• Higher level design tools
• Realistic yet tractable design projects
• Preparation for jobs in semiconductor and other
  sectors.
• Making best use of faculty/student time and
  university resources

3
ECE 559/659 VLSI Design Project (10 grads, 20
seniors)
Course Objectives

• Learn design process for a complex VLSI in deep
  sub-micron CMOS
• Learn VLSI design skills and tools, including
  working in teams
• Learn about a particular application component
  and its VLSI implementation
• Learn to present formal design reviews using
  oral, written, graphical and web-based techniques

4
Key Aspects of the Course

• aSoC (home-grown SoC platform)
• Provides a unifying framework to class
• Allows for subdivision but inter-relation of
  projects
• Interesting cutting edge architecture based on
  NSF- and SRC-funded research at UMASS and
  elsewhere
• Covers many aspects of VLSI Design
• Realistic constraints on area, timing, power and
  I/O
• Graduate and undergraduate teamwork
• Graduate students provide leadership, motivation
  and experience
• Commercial tools and design flow
• Review-based evaluation
• Oral and web-based reports for 4 different
  reviews
• proposal, feasibility, implementation,
  integration

5
Adaptive System-on-a-Chip (aSoC)

• Tiled architecture with mesh interconnect
• Point to point communication pipeline
• Allows for heterogeneous cores
• Differing sizes, clock rates, voltages
• Low-overhead core interface for
• On-chip bus substitute for streaming applications
• Based on static scheduling
• Fast and predictable

6
Communication Interface
Core

• Custom design to maximize speed and reduce power
• Core-ports
• Crossbar
• Controller
• Instruction memory
• Local frequency and voltage supply

Core-ports
North
North
South
South
East
East
West
West
Outputs
Inputs
Local Config.
Local Frequency Voltage
Decoder
Controller
Crossbar
North to South East
PC
Instruction Memory
7
Class Projects

• SoC Infrastructure1,3
• Communication Interface
• Interconnect3
• Power Distribution
• Clock System
• Power Management

• Cores
• Motion estimation for video encoding2,3
• AES Cryptography3
• Cache2,3
• Huffman Coding
• 3D Graphics1,2,3
• Discrete Cosine Transform2,3
• Smart Card2,3

1 Used in PhD Dissertation 2 Used in Masters
Thesis 3 Used in Publications
8
Design Flowhttp//vsp2.ecs.umass.edu/vspg/658/TA_
Tools/design_flow.html

• Architecture to Layout
• Architecture Block diagram of system and
  behavioral description
• Logic Gate level or schematic description
• Circuit Transistor sizing
• Layout Floorplanning, clock and power
  distribution
• Tools
• VerilogXL behavioral representation
• VTVT standard cell library
• Synopsys standard cell gate level netlist
  generation
• Silicon Ensemble standard cell netlist to layout
• Cadence LayoutPlus schematic and layout design
• NCSU CDK design and extraction rules
• Cadence Layout vs. Schematic layout verification
• HSPICE circuit simulator

9
aSoC Implementation and Integration
2500 l
.18m TSMC technology Full custom
3000 l
10
Advanced Signaling Techniques (building on
SRC-funded work)
Differential current sensing
Booster Insertion
Multi-level current signaling
Phase coding
11
Circuit Level Simulation (HSPICE)Evaluating
Subsystems with realistic models

• Capacitance, resistance and inductance
• Process variations
• Process generations

12
Interconnect CharacterizationComparing delay
and power of signaling techniques for different
tile sizes at 250nm, 180nm, 130nm, 100n
13
Voltage Scaling Approach

• Core-ports
• Single buffer for each stream to cross
  clock/voltage barrier between core and interface
• Reading/Writing success rates indicate core
  utilization
• Input blocked Core too slow
• Output blocked Core too fast
• Controller
• Interprets core-port success rates to adjust
  local clock and voltage

Core
Processing Pipeline
Local Vdd
Local Clock
Buffer
Input Core-port
Output Core-port
Clock and Supply Controller
Blocked
Blocked
Interconnect
14
Vdd Selection Criteria
Normalized Core Critical Path Delay vs. Vdd
12
Normalized Delay

• As Vdd decreases delay increases exponentially
• Use curve to match available clock frequencies to
  voltages
• The voltage and frequency change reduces power by
  79, 96, and 98.7
• P aC(Vdd)2f

10
1/8 Speed
8
6
1/4 Speed
4
1/2 Speed
2
Max Speed
0
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
0.73
1.16
Voltage
15
Clock Distribution
Tile

• Tiled architecture extends life of globally
  synchronous systems
• Precise H-tree implementation
• Load is small and equal at each branch
• Skew can be reduced by 70 with advanced deskew
  circuits1

1 S. Tan et al. Clock Generation and
Distribution for the First IA-64 Microprocessor
IEEE JSSC, Nov. 2000
16
Power Distribution

• Heterogeneous cores may require multiple power
  supply voltages
• Tile structure enables uniform interwoven grid
• Larger grid for higher current demands
• Reduced resistance
• Higher capacitance

Gnd
Vml
Vl
Vmh
Vh
17
Architecture Evaluation(Motion Estimation)
Memory

• Array-based architecture
• Pipelined ME
• Parameterized search window size
• Full search
• Choose 16x16 or 8x8 windows
• Reduce power

FIFOs
Address Generation Unit
Processing Element Array
18
Modify Existing Designs

• Take existing Verilog code or hardware and
  improve or change functionality (e.g. add motion
  estimation algorithms, provide AES key-length
  flexibility)
• Evaluate changes in performance and overhead

- Old PE Layout - New
PE Layout
19
Conclusions

• Advancing Process Technology
• Target .18u for affordable fab but also do
  scaling studies
• Higher level design tools
• Combine synthesis and custom techniques
• Realistic yet tractable design projects
• Re-use existing projects and provide unifying
  themes
• Preparation for jobs in semiconductor and other
  sectors.
• Focus on system design and appropriate levels of
  abstraction
• Teach how to learn new tools
• Making best use of faculty/student time and
  university resources
• Leverage research
• Combine grad and undergrad
• Re-use materials, tools
