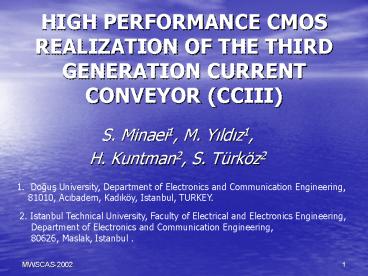

HIGH PERFORMANCE CMOS REALIZATION OF THE THIRD GENERATION CURRENT CONVEYOR CCIII

1
HIGH PERFORMANCE CMOS REALIZATION OF THE THIRD
GENERATION CURRENT CONVEYOR (CCIII)

• S. Minaei1, M. Yildiz1,
• H. Kuntman2, S. Türköz2

• Dogus University, Department of Electronics and
  Communication Engineering,
• 81010, Acibadem, Kadiköy, Istanbul, TURKEY.

2. Istanbul Technical University, Faculty of
Electrical and Electronics Engineering,
Department of Electronics and Communication
Engineering, 80626, Maslak, Istanbul .
2
ABSTRACT

• In this paper a new CMOS high performance
  dual-output realization of the third generation
  current conveyor (CCIII) is presented. The
  proposed CCIII provides good linearity, high
  output impedance at port Z and excellent
  input/output current gain. PSPICE simulation
  results using MIETEC 1.2? CMOS process model are
  included to verify the expected values.

3
1. INTRODUCTION

• Current conveyors and unity-gain amplifiers are
  widely used by analog designers
• Signal processing
• Active network synthesis

• Recently third generation of this block has also
  been proposed by Fabre et al 3.

• The third generation current conveyors (CCIIIs)
  can be considered as a current controlled current
  source with a unity gain.

4

• High performance current mirrors are required in
  the structure of the CCIII to provide
• Good dynamic swing
• High output resistance which enables
  cascadability.

• The main features of the CCIII are
• Low gain errors (high accuracy)
• High linearity
• Wide frequency response.

5

• In this paper, we propose a novel implementation
  of dual-output CCIII based on an improved
  active-feedback cascode current mirrors (IAFCCM).

• The proposed CCIII is compared with the
  conventional CCIII proposed in 3 and cascode
  CCIII. It provides
• High output resistance at port Z and
• High dynamic swing.

6
2. CIRCUIT DESCRIPTION

• The port relations of an ideal dual-output CCIII
  is shown in Figure 1.

Figure 1. Electrical symbol of the CCIII

• The positive and negative signs define a positive
  and negative current-controlled conveyor.

7

• The conventional third generation current
  conveyor is shown in Figure 2a 3.

• The conventional third generation current
  conveyor is shown in Figure 2 3.

Figure 2a. Conventional third generation current
conveyor (CCIII).
Figure 2b. Conventional (CCIII) core view from X
and Y ports.
8

• A major advantage of this CCIII is its simple
  structure.
• An important drawback of the conventional CCIII
  is the finite output resistance (Roz).
• The Z output resistance of this current conveyor
  is,
• Roz (rds21)//(rds22)
• where rdsi denotes the output resistance of
  the ith transistor respectively.

• Third generation current conveyor using cascode
  current mirrors is shown in figure 3.
• The cascode current mirrors between ports X-Y,
  X-Z, and Y-Z- as shown in Figure 3.
• Increase the accuracy of the current
  transformations in the CCIII.

9
Figure 3. Third generation current conveyor using
cascode current mirrors.

• The Z output resistance of the cascode CCIII is
  calculated as
• Roz ? (rds29 rds25 gm29)// (rds30rds26 gm30)

10

• To increase the output resistance we propose a
  new CCIII based on using improved active-feedback
  cascode current mirror (IAFCCM) 10 in the
  output stages of the conveyor.
• The proposed CCIII is shown in Figure 4.
• The output resistance of the proposed CCIII is
  calculated as
• Roz gm32 gm30 rds31 rds32 (rds30// rds28)
  //gm40 gm38 rds39 rds40 (rds38// rds34)

11
Figure 4. The proposed third generation current
conveyor CCIII.
12
3. SIMULATION RESULTS AND COMPARISON

• The performance of the proposed CCIII shown in
  Figure 4, is verified by SPICE simulation program
  using,
• MIETEC 1.2?m CMOS process model parameters
• PMOS transistor dimensions are W/L720µm/2.4µm
  and,
• NMOS transistor dimensions are W/L240µm/2.4µm.
• The voltage supply used for the proposed CCIII is
  ?2.5V.

• The main performances of the conventional,
  cascode and proposed
• CCIII are summarized in Table 1.
• From Table 1 it can be seen that the performance
  of the proposed CCIII
• is improved in terms of,
• Linearity
• gain accuracy
• output resistance.

13
Figure 5. The relation between VX-VY for the
proposed CCIII
Figure 6. The relation between IX-IY-IZ for the
proposed CCIII.
Figure 7.The frequency response of the VX/VY
Figure 8. The frequency response of the IZ/IX
and IZ-/IX
14
Table 1. Circuit performances.
15
4. CONCLUSION

• The proposed circuit uses improved
  active-feedback cascode current mirrors (IAFCCM),
  which increases output resistance at port-Z.
• The proposed circuit is compared with the
  conventional and cascode CCIIIs. The simulation
  results confirm high performance of the circuits
  in terms of
• Linearity
• Voltage gain accuracy
• Current gain accuracy..

16
5. REFERENCES

• Sedra A., Smith K. A Second-generation current
  conveyor and its applications, IEEE Trans. On
  Circuit Theory, 1970, 17, pp.132-133.
• Sedra A., Roberts G. The current conveyor
  history, progress and new results, IEE
  Proceeding Part G , 1990, 137, pp. 78-87.
• Fabre A. Third generation current conveyor a
  new helpful active element, Electronics Letters,
  1995, 31, pp.338-339.
• Chow H.-C., Feng W.-S., New symmetrical buffer
  design for VLSI application, International
  Journal of Electronics., 2001, 88, pp.779-797.
• Wang H.-Y., Lee C.-T. Systematic synthesis of
  R-L and C-D immittances using single CCIII,
  International Journal of Electronics, (2000), 87,
  pp.293-301.
• Horng J.-W., Weng R.-M., Lee M.-H., Chang C.-W.
  Universal active current filter using two
  multiple current output OTAs and one CCIII,
  International Journal of Electronics., 2000, 87,
  pp. 241-247.
• Mahmoud S.A., Soliman A.M., Novel MOS-C
  oscillators using the current feedback op-amp,
  International. Journal of Electronics, 2000, 87,
  pp. 269-280.
• Abuelmaatti M. T., Alzaher H.A. Multi-function
  active-only current-mode filter with three inputs
  and one output, International Journal of
  Electronics, 1998, 85, pp. 431-435.
• Kuntman H., Çiçekoglu O, Özoguz S. , A modified
  third generation current conveyor, its
  characteristic and applications, Frequenz, 2002,
  56, pp. 47-54.
• Zeki A., Kuntman H. Accurate and high output
  impedance current mirror suitable for CMOS
  current output stages, Electronics Letters,
  1997, 33, pp. 1042-1043.
