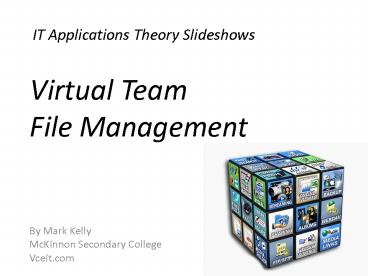

IT Applications Theory Slideshows
Virtual Team File Management

• By Mark Kelly
• McKinnon Secondary College
• Vceit.com

2
Managing Transmitting files

• Encryption
• Access hierarchy
• Backups
• Virus scanners
• Classifying and naming files
• Directory/folder/site structures
• Version control

3
Managing Files

• Use a file manager like Windows Explorer.

• File
• Opening
• Copying
• Moving
• Renaming
• Deleting
• Categorising
• Viewing
• Archiving
• etc

Preferably a better file manager.
4
A better file manager File Commander
5
And other tools

• There are many utilities which help manage
  particular types of files, or carry out
  specialised actions

6
Managing Picture Files

• Picture
• Previews
• Resizing
• Reformat
• Sort
• Create webpage
• Contact sheet
• File Info

7
Mass File Renaming
Instantly renames thousands of files with great
flexibility. Saves HOURS of labour when working
with large numbers of files.
8
Thumbnailed web photo galleries
Converts any number of photos into pages full of
small thumbnailed images linked to the large
pictures.
9
Find where disk space is used/wasted
10
Searching for files
Find files matching given criteria (e.g. name,
file type, contents) anywhere on a computer or
network.
11
Search Replace over many files
Some text editors let you carry out a search and
replace over many files at once. Far easier
than making the same edit on 1200 files
individually!
12
Transmitting Files

• Files can be sent using the normal web HTTP
  protocol but its not the best way.
• File Transfer Protocol (FTP) is the standard way
  of transferring files over the internet
  especially big files and large numbers of files.
• FTP client is like a 2-pane file manager with
  your local files in one pane and the remote files
  on the webserver in the other pane.

13
Filezilla an open source FTP client
14
Commercial file-sharing services
15
Commercial file-sharing services
16
Email attachments

• Easy to send
• Limited by size of recipients mailbox or ISP
  restrictions

17
Dont recommend

• Snail mail
• Couriers
• We need ICT solutions!

18
Data Security

• Virtual teams often work with confidential or
  secret data
• All data needs to be protected against loss or
  damage
• Sensitive information needs protection against
  theft

19
Passwords

• Passwords can be applied to
• Individual computers
• Network access
• Website access
• FTP access
• Opening documents
• Changing documents

A password-protected database
20
Biometric ID

• Passwords are weak protection
• Easily forgotten, discovered, guessed
• Biometric ID measures a unique physical attribute
  of an individual, e.g.
• Fingerprint
• Iris pattern (the coloured bit of the eye)
• Retinal pattern (the blood vessels at the back of
  the eye)
• Cant be copied, faked, stolen as passwords and
  swipe cards can

21
Encryption

• Makes information unreadable for unauthorised
  people
• Public Key encryption does not have an unlocking
  key - the weak point of all previous encryption
  systems
• Public key encryption (look up RSA, PGP, SSL) is
  very, VERY hard to break
• Even if an encrypted document is stolen or
  copied, it is worthless to the thief

22
Encryption

• SSL (Secure Socket Layer) encrypts web traffic
• Is active when the padlock in your browser snaps
  shut
• Messages between web servers (e.g. banks) and
  visitors are encrypted by the sender and
  decrypted by the recipient
• Secure sites sometimes identifiable by a HTTPS//
  prefix

23
Access hierarchy

• Different users get different levels of access to
  data
• Level of access based on what they need to get
  their work done
• Prevents unskilled, stupid or evil people
  deliberately, carelessly or accidentally
  destroying data

24
Safe Disposal

• Deleted files are easily recovered
• To be safe, unwanted files should be wiped
• Military-grade wiping involves overwriting data
  at least 7 times with rubbish data
• Computers being disposed of should have their
  hard disks reformatted.
• But reformatting can be reversed!
• Some organisers shred used hard disks to be sure.
  The disks are physically pulverised.

25
Hard disk destruction
Hours of crushing fun
http//www.youtube.com/watch?vsQYPCPB1g3o
http//www.youtube.com/watch?v8qImGK8bHjE
26
Access hierarchy

• Databases, for example, can assign rights such
  as
• See some data, but not all
• See all data, but not add/delete/change change it
• Add data but not delete any
• Add and delete data but not change any
  programming or presentation layouts
• Access all areas

27
Access Privileges in Filemaker
28
Backups

• Backup copying data so it can be restored if
  the original is lost or damaged
• Must be done regularly (daily!)
• Must be stored offsite
• Procedure must be tested and documented

29
Backup types

• Full copy absolutely everything new and old
  data and programs
• Incremental (partial, differential) copy only
  files that are new or have been changed since the
  last full backup.

30
Typical Scheme

• Weekly full backups
• Daily incremental backups
• To restore data, reload the latest full backup
  and then add on all the incremental backups made
  since then.
• Look up grandfather-father-son scheme, a
  variety of rotation backup

31
Backup Media

• Media what the data is saved to
• Tape large capacity, slow, wears out,
  expensive. Very common
• Removable hard disk fast, large capacity,
  cheap.
• CD/DVD relatively low capacity, easily damaged.
  Non-magnetic, so not hurt by electromagnetic
  fields as are tapes, HDDs.

32
Backup Media

• Selection criteria
• Read/write speed
• Capacity
• Lifetime of recorded data
• Durability of media

33
Virus scanners

• Must have up-to-date virus definitions
• Must be running all the time
• Must be accurate
• false-positives wrongly believes a virus exists

• false-negatives fails to identify a virus
• Even market-leading products are imperfect
• Some free products (e.g. Avira) outperformed
  Symantec McAfee in a test in 2009.

34
Other scanners

• Malware spyware, adware. Either does bad
  things (e.g. monitoring users actions) or is
  badly programmed and badly affects the stability
  of computers.

35
Other scanners

• Trojan Horses bad software installed by users
  who think its innocent. Payloads
• Keylogger records passwords, credit card info,
  bank account logins sends them to hackers.
• Spamming agent your computer acts as a zombie
  sending spam on behalf of the hacker
• Distributed Denial Of Service (DDOS)attack your
  computer is taken over and joins a concerted
  attack on a server chosen by the hacker.

36
Firewalls

• Closes unused internet communication ports
• Your computer has 65535 of them, but you only use
  about 3.
• Hackers can gain entry to a PC through unguarded
  ports
• Firewalls close the unused ports
• Open ports are watched to ensure only authorised
  programs use them (preventing Trojans sending
  spam or DDOS attacks)

37
Software Firewalls

• Can be software or hardware firewalls
• Software Windows Firewall, Zone Alarm
• Needs training when first installed. You teach
  it which programs are allowed to connect to the
  internet

38
Hardware firewalls

• Routers on all Local Area Networks, and in
  nearly all home/office cable/ADSL modems
• Can use Stateful Packet Inspection (SPI) to
  examine inside data packets to see if theyre
  harmful.
• Protect against incoming bad data, but not
  outgoing bad data. If youre already infected by
  a Trojan, a router wont stop your PC sending
  spam, keylogs etc

39
PLEASE NOTE

• A firewall (hardware or software) will not stop
  viruses!
• A firewall will not stop viruses!
• A firewall will not stop viruses!
• A firewall will not stop viruses!
• A firewall will NOT stop viruses!
• Im glad we got that clear

40
Classifying and naming files

• Random file naming leads to confusion, time
  wasting and difficulty finding information
• Store all documents in one location, not
  sprinkled around the computer and network!
• Other team members might need to access your
  documents, so they need to be able to find them
  simply by filename.
• With thousands of files, a ramshackle pile of
  careless filenames will become unmanageable.

41
(No Transcript)
42
File naming

• All team members must use the same sort of
  software preferably the same version (e.g. MS
  Word 2007)

43
Filenaming

• Use a regular pattern in your filenames
• E.g. all invoices begin with INV- with customer
  surnameinitials-date-your initials
• INV-smithjs-20081228-KEL.xls
• Note the date code above year (2008) month (12)
  day (28) so they sort nicely
• All team members must agree to and cooperate with
  the file naming scheme

44
Directory/folder/site structures

• Logical directory structure and naming is vital
  on networks and web/FTP servers
• Should be hierarchical. E.g. website for team on
  the corporate site
• corporate.com (organisations site)
• Corporate.com/vt (virtual teams directory)
• Corporate.com/vt/calendars (all calendars stored
  here)
• Corporate.com/vt/calendars/fred.cal (freds
  calendar)

45
Directory/folder/site structures

• Where would the team store minutes of their
  meetings?
• Corporate.com/vt/minutes
• Corporate.com/vt/minutes/2009
• Corporate.com/vt/minutes/2009/hardware_team
• Corporate.com/vt/minutes/2009/hardware_team/minute
  s_20091231.htm

46
Valid alternative

• Corporate.com/vt/minutes
• Corporate.com/vt/minutes/hardware_team
• Corporate.com/vt/minutes/hardware_team/2009
• Corporate.com/vt/minutes/hardware_team/2009/minute
  s_20091231.htm

• Both are organised and hierarchical
• Different organisation of team/year importance.
• Decision may depend on whether they will need to
  search more by team or date.
• Naming schemes should complement the way the team
  will work.

TIP Avoid the temptation to abbreviate too much
e.g. a path like Corporate.com/vt/min/hw/09/m09123
1.htm could easily become unintelligible.
47
Version control

• Keeps tracks of documents as they are being
  developed
• Avoids confusion about which is the latest
  version
• Simple to achieve

48
Version Control

• Never re-save a document with the same name
• Can never recover the overwritten version
• First save as document-v1.doc
• Edit it, save as document-v2.doc
• Re-edit. Save as document-v3.doc

49
Software Versioning

• E.g FredSoft 7.1.2
• Major version 7
• Minor version 1
• Subversion 2

50
Version Control

• Easy to keep track of which is newest
• Especially if you have copies on your PC,
  network, home PC, website and smartphone!
• Also, can revert to a previous version if you
  discover youve ruined the document.
• All team members must comply with the versioning
  scheme.
• Can delete old versions when all is finished.

51
Version Control System

• Automates version numbering of team documents
• Keeps track of when documents are copied, edited,
  saved etc
• Major software often has inbuilt versioning
  features (e.g. Word, wiki software)

52
Version control

• See TRACK CHANGES in MS Word.
• Tracks all changes made to a document.
• Can undo changes made by someone else.

53
IT APPLICATIONSSLIDESHOWS

• By Mark Kelly
• McKinnon Secondary College
• vceit.com

These slideshows may be freely used, modified or
distributed by teachers and students anywhere on
the planet (but not elsewhere). They may NOT be
sold. They must NOT be redistributed if you
modify them.
