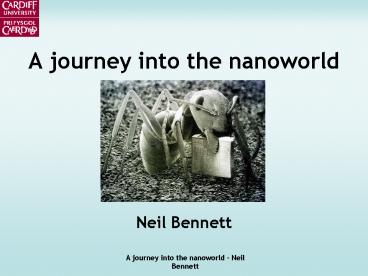

A journey into the nanoworld

1
A journey into the nanoworld

• Neil Bennett

2
Outline

• What is nanotechnology and why do we want it?
• The big idea molecular electronics
• How do we see nanoscale objects
• My work
• Nanobots
• Grey goo

3
Some revision

• What does nano mean again?

4
Length scales
Pentium 4 feature size
White blood cell
5
What is nanotechnology?

• lt 100nm
• Multidisciplinary
• New materials, electronic devices, mechanical
  devices, health treatments
• Nanostructures influenced by quantum mechanics

6
Ok, so whats quantum mechanics?

• Small objects behave as both waves and particles
• Exist in quantised states
• See Schrödinger's cat

7
Nano-myths
Nanotechnology is a "science project" whose
commercial products will only emerge some years
in the future.

• Nano-facts
• Currently more than 370 products on the market
  utilizing nanotechnology.
• These range from car tires and sports equipment
  to electronics, clothing, and cosmetics.
• Market worth over 32 billion in 2005.

8
Why do we need nanoscale science?

• Things just keep getting smaller
• Soon devices will too small to fabricate with
  current methods

9
The big idea molecular electronics

• Perhaps we could make a transistor out of
  molecules
• Two questions
• How do you make it?
• How will it function?

10
How do we make nano-devices?

• Top-down
• Lithography - limited by wavelength of light (a
  few hundred nm)
• X-rays, Electron or Ion beams can be used instead
  giving 50nm features
• Bottom-up
• Molecular self assembly
• Biological recognition

11
Focused ion beam

• Material can be deposited or etched away with
  high resolution

12
Sophisticated self assembly

• Can structures be designed and self-assembled?
• The different strands are made by genetic
  engineering approaches.
• Good potential for future.

13
Nanotechnology in action Tuneable photonic
crystals

• Colour depends on magnetic field strength

14
Seeing on the nanoscale

• How do we see below the diffraction limit?
• X-ray diffraction
• Electron microscope
• Scanning probe techniques

15
X-ray diffraction large molecules
X-ray diffraction was used to resolve DNA
Structure!
16
Electron microscopes
Carbon nanotubes
17
Whats that supposed to be?
18
Whats that supposed to be?
19
Whats that supposed to be?
20
Scanning probes

• Use a sharp probe to sense objects

• Scanning tunnelling microscope (STM)
• Electrical current

• Atomic force microscope (AFM)
• Forces

21
Atomic manipulation - STM

• Move individual atoms with the probe tip
• Interesting effects
• but time consuming

22
AFM Atomic force microscopy

• Oscillating probe feels forces
• Simple harmonic motion pendulum!
• Sharp tip enables nanometre resolution

23
Some images

• Silicon atoms imaged by STM
• Surface of sample must be very clean to image
  single atoms!

24
Some images

• Virus particles imaged by AFM
• Biological samples are very soft must take care
  not to damage whilst imaging

25
Some images
Polymer Network

• Electrical potential of a Polymer network
• Imaged by Electrostatic force microscopy

26
My work
Scanning probe microscope
Me
27
My work

• Nano-fishing
• Pick up molecules with probe tip

28
molecule
Metal surface atoms
Artists impression not to scale
29
My work

• Nano-fishing
• Pick up molecules with probe tip
• Measure electrical current through the molecule
• Effect of temperature, length, chemistry,
  environment

30
Nanobots

• Robots with nanoscale components
• Target cancer cells or radicals
• Build new technologies from the molecule upwards
• Self replicate?

31
Grey Goo!
SELF-REPLICATING ROBOTS TAKE OVER THE WORLD!
Runaway replicators turn everything in their path
to grey goo!
32
(No Transcript)
33
Real nanobots Life!

• Bolts, hinges and microchips?
• Nanobots might be more like living cells
• E.g. the bacterial flagellum
• Self assembled motor driven by electrical signals

34
Nanotoxicity

• Real potential danger
• Effects on respiratory and nervous system unknown
• inert particles can still be dangerous
• think asbestos
• gold nano particles

35
Conclusions

• Nano is the future!
• Nano is quirky
• Nano is invisible
• Nano is all around us
• and finally,
• Nano could damage your health, but dont worry
  about grey goo

36
(No Transcript)
37
More info

• Scanning probes
• University of Bristol
• http//spm.phy.bris.ac.uk/
• Carbon nanotubes
• Cambridge University
• http//www-g.eng.cam.ac.uk/cnt/
• DNA nanostructures
• Professor Andrew Turberfield, University of
  Oxford http//www.bionanotechnology.ox.ac.uk/
• Nano-fishing
• Richard Nichols, Liverpool, http//pcwww.liv.ac.uk
  /nichols/

38
Nanotech already in use

• New materials - Golf clubs!
• Sunscreens
• gel-based nanoscale catalysts
• OLED color screens (made of nanostructured
  polymer films)
• Quantum dot technologies
• Desired applications
• Strong, lightweight materials form nanotubes
  soon?....
• Solar powered Hydrogen extraction (fuel)
• Targeted chemotherapy - nano-caged drugs
