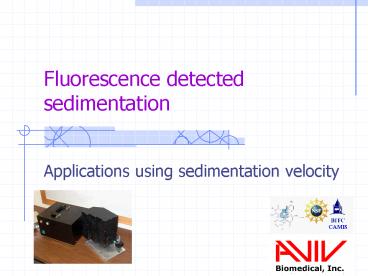

Fluorescence detected sedimentation

1
Fluorescence detected sedimentation

• Applications using sedimentation velocity

2
Outline

• Basics of sedimentation velocity
• How the AU-FDS works
• Applications
• Examples of applications
• Where it can take us

3
Types of sedimentation
Graphs courtesy of Peter Schuck
4
Sedimentation velocity
S
D
5
AU-FDS opticsConfocal fluorescence optics
PMT
Laser
Spatial filter
Collimation
Dichroic filter
Dichroic mirror
Expansion
Objective lens
Fluorescent event
6
Data CollectionOne radius, several rotations

• Aviv AU-FDS
• Rapid-scan absorbance

FDS
FDS
RSA
RSA
Slit assembly
Radial steps
One rotation
7
Data acquisition strategy

• Aviv AU-FDS
• Rapid-scan absorbance

• Continuous light source
• Acquire light intensities and rotor timing pulse
• Asynchronous with rotor
• Sort out the data in computer memory

8
Simultaneous dataacquisition

• Aviv AU-FDS
• Rapid-scan absorbance

• FDS and RSA data
• Data for all cells
• Signal averaging

1
2
3
9
AU-FDS applications
10
Determining s and Mw
40 nM GFP in 100 mM KCl, 10 mM Tris, pH 8.0
11
Using a labeled lipid DPPC-NBD rsEPCR
400 nM DPPC-NBD rsEPCR 20 mM Tris, 100 mM NaCl
and 3 mM CaCl2, pH 7.5
12
Using a lipid label DPPC-NDB rsEPCR
rsEPCR DPPC 2.87 s
rsEPCR alone 2.63 s
13
GFP-labeled construct in cell lysate
14
Monitoring interacting systems
15
Detecting trace molecule
40 nM GFP in varying concentrations of E. coli
lysate
16
40 nM GFP in concentrated solutions of different
charge
17
Human serum studies
18
Alexa488-BSA in TBS or Human serum
19
Using labeled lipid in serum4?M DPPE
Albumin
Free DPPE?
20
Alexa-488 IgG in serum
500 nM Alexa in TBS or human serum
21
40 nM GFP in serum
Serum albumin
22
40 nM GFP rat Anti-GFP IgG
Rachel Kroe
23
Kd for GFP/Anti-GFP Interaction by fluorescence
polarization

• The Kd for this interaction is 1 nM
• Sedimentation shows the interaction is 11 and
  not 11 21

Rachel Kroe
24
GFP/Anti-GFP in Human serum
100 nM GFP/100 nM Anti-GFP in Serum
Rachel Kroe
25
Acknowledgements
Rachel Kroe Brett Austin BITC Jeff
Hansen CAMIS Borries Demeler NIH
Edward Eisenstein NSF
