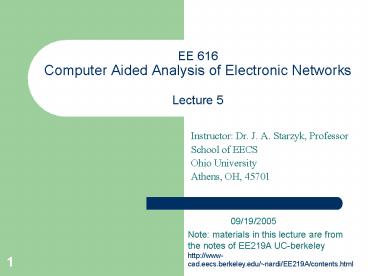

EE 616 Computer Aided Analysis of Electronic Networks Lecture 5

1
EE 616 Computer Aided Analysis of Electronic
NetworksLecture 5

• Instructor Dr. J. A. Starzyk, Professor
• School of EECS
• Ohio University
• Athens, OH, 45701

09/19/2005
Note materials in this lecture are from the
notes of EE219A UC-berkeley http//www-
cad.eecs.berkeley.edu/nardi/EE219A/contents.html
2
Outline

• Nonlinear problems
• Iterative Methods
• Newtons Method
• Derivation of Newton
• Quadratic Convergence
• Examples
• Convergence Testing
• Multidimensonal Newton Method
• Basic Algorithm
• Quadratic convergence
• Application to circuits

3
DC Analysis of Nonlinear Circuits - Example
Need to Solve
4
Nonlinear Equations

• Given g(V)I
• It can be expressed as f(V)g(V)-I
• ? Solve g(V)I equivalent to solve f(V)0

Hard to find analytical solution for f(x)0
Solve iteratively
5
Nonlinear Equations Iterative Methods

• Start from an initial value x0
• Generate a sequence of iterate xn-1, xn, xn1
  which hopefully converges to the solution x
• Iterates are generated according to an iteration
  function F xn1F(xn)

• Ask
• When does it converge to correct solution ?
• What is the convergence rate ?

6
Newton-Raphson (NR) Method

• Consists of linearizing the system.
• Want to solve f(x)0 ? Replace f(x) with its
  linearized version and solve.
• Note at each step need to evaluate f and f

7
Newton-Raphson Method Graphical View
8
Newton-Raphson Method Algorithm
Define iteration
Do k 0 to .?
until convergence

• How about convergence?
• An iteration x(k) is said to converge with
  order q if there exists a vector norm such that
  for each k ? N

9
Newton-Raphson Method Convergence
But
by Newton definition
10
Newton-Raphson Method Convergence
Subtracting
Dividing
Convergence is quadratic
11
Newton-Raphson Method Convergence
Local Convergence Theorem
If
Then Newtons method converges given a
sufficiently close initial guess (and
convergence is quadratic)
12
Newton-Raphson Method Convergence
Example 1
Convergence is quadratic
13
Newton-Raphson Method Convergence
Example 2
Note not bounded away from zero
Convergence is linear
14
Newton-Raphson Method Convergence
Example 1, 2
15
Newton-Raphson Method Convergence
16
Newton-Raphson Method Convergence Check
17
Newton-Raphson Method Convergence Check
18
Newton-Raphson Method Convergence
19
Newton-Raphson Method Local Convergence
Convergence Depends on a Good Initial Guess
20
Newton-Raphson Method Local Convergence
Convergence Depends on a Good Initial Guess
21
Nonlinear Problems Multidimensional Example
Nodal Analysis
Nonlinear Resistors
Two coupled nonlinear equations in two unknowns
22
Multidimensional Newton Method
23
Multidimensional Newton Method Computational
Aspects

• Each iteration requires
• Evaluation of F(xk)
• Computation of J(xk)
• Solution of a linear system of algebraic
  equations whose coefficient matrix is J(xk) and
  whose RHS is -F(xk)

24
Multidimensional Newton Method Algorithm
25
Multidimensional Newton Method Convergence
Local Convergence Theorem
If
Then Newtons method converges given a
sufficiently close initial guess (and
convergence is quadratic)
26
Application of NR to Circuit EquationsCompanion
Network

• Applying NR to the system of equations we find
  that at iteration k1
• all the coefficients of KCL, KVL and of BCE of
  the linear elements remain unchanged with respect
  to iteration k
• Nonlinear elements are represented by a
  linearization of BCE around iteration k
• ? This system of equations can be interpreted as
  the STA of a linear circuit (companion network)
  whose elements are specified by the linearized
  BCE.

27
Application of NR to Circuit EquationsCompanion
Network

• General procedure the NR method applied to a
  nonlinear circuit (whose eqns are formulated in
  the STA form) produces at each iteration the STA
  eqns of a linear resistive circuit obtained by
  linearizing the BCE of the nonlinear elements and
  leaving all the other BCE unmodified
• After the linear circuit is produced, there is no
  need to stick to STA, but other methods (such as
  MNA) may be used to assemble the circuit eqns

28
Application of NR to Circuit EquationsCompanion
Network MNA templates
Note G0 and Id depend on the iteration count k
? G0G0(k) and IdId(k)
29
Application of NR to Circuit EquationsCompanion
Network MNA templates
30
Modeling a MOSFET(MOS Level 1, linear regime)
d
31
Modeling a MOSFET(MOS Level 1, linear regime)
32
DC Analysis Flow Diagram
For each state variable in the system
33
Implications

• Device model equations must be continuous with
  continuous derivatives and derivative calculation
  must be accurate derivative of function
• (not all models do this - Poor diode models and
  breakdown models dont - be sure models are
  decent - beware of user-supplied models)
• Watch out for floating nodes (If a node becomes
  disconnected, then J(x) is singular)
• Give good initial guess for x(0)
• Most model computations produce errors in
  function values and derivatives.
• Want to have convergence criteria x(k1) -
  x(k) lt ? such that ? gt than model errors.

34
Summary

• Nonlinear problems
• Iterative Methods
• Newtons Method
• Derivation of Newton
• Quadratic Convergence
• Examples
• Convergence Testing
• Multidimensonal Newton Method
• Basic Algorithm
• Quadratic convergence
• Application to circuits

35
Improving convergence

• Improve Models (80 of problems)
• Improve Algorithms (20 of problems)
• Focus on new algorithms
• Limiting Schemes
• Continuations Schemes

36
Outline

• Limiting Schemes
• Direction Corrupting
• Non corrupting (Damped Newton)
• Globally Convergent if Jacobian is Nonsingular
• Difficulty with Singular Jacobians
• Continuation Schemes
• Source stepping
• More General Continuation Scheme
• Improving Efficiency
• Better first guess for each continuation step

37
Multidimensional Newton MethodConvergence
Problems Local Minimum
Local Minimum
38
Multidimensional Newton MethodConvergence
Problems Nearly singular
f(x)
Must Somehow Limit the changes in X
39
Multidimensional Newton MethodConvergence
Problems - Overflow
f(x)
X
Must Somehow Limit the changes in X
40
Newton Method with Limiting
41
Newton Method with LimitingLimiting Methods

• Direction Corrupting

• NonCorrupting

Heuristics, No Guarantee of Global Convergence
42
Newton Method with LimitingDamped Newton Scheme
General Damping Scheme
Key Idea Line Search
Method Performs a one-dimensional search in
Newton Direction
43
Newton Method with LimitingDamped Newton
Convergence Theorem
If
Then
Every Step reduces F-- Global Convergence!
44
Newton Method with LimitingDamped Newton
Nested Iteration
45
Newton Method with LimitingDamped Newton
Singular Jacobian Problem
X
Damped Newton Methods push iterates to local
minimums Finds the points where Jacobian is
Singular
46
Newton with Continuation schemes Basic Concepts
- General setting

• Newton converges given a close initial guess
• ? Idea Generate a sequence of problems, s.t. a
  problem is a good initial guess for the following
  one

? Starts the continuation
?Ends the continuation
?Hard to insure!
47
Newton with Continuation schemes Basic Concepts
Template Algorithm
48
Newton with Continuation schemes Basic Concepts
Source Stepping Example
49
Newton with Continuation schemes Basic Concepts
Source Stepping Example
Diode
Source Stepping Does Not Alter Jacobian
50
Newton with Continuation schemes Jacobian
Altering Scheme
Observations
Problem is easy to solve and Jacobian definitely
nonsingular.
Back to the original problem and original Jacobian
(1),1)
51
Summary

• Newtons Method works fine
• given a close enough initial guess
• In case Newton does not converge
• Limiting Schemes
• Direction Corrupting
• Non corrupting (Damped Newton)
• Globally Convergent if Jacobian is Nonsingular
• Difficulty with Singular Jacobians
• Continuation Schemes
• Source stepping
• More General Continuation Scheme
• Improving Efficiency
• Better first guess for each continuation step
