Chapter 18' VirtualCircuit Networks: Frame Relay and ATM

1

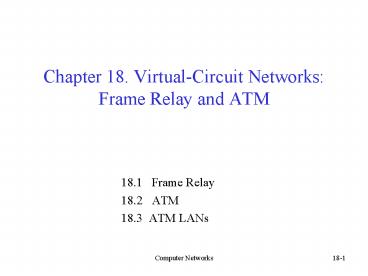

Chapter 18. Virtual-Circuit NetworksFrame Relay
and ATM

• 18.1 Frame Relay
• 18.2 ATM
• 18.3 ATM LANs

2
Wide area network and switching methods
3
Circuit switching

• Create a real circuit (dedicated line) between
  source and destination
• Physical layer technology

4
Packet Switching Datagram Approach

• Mostly used in the network layer
• Routing (selecting the best route for a packet)
  is performed at each router

5
Packet Switching Virtual Circuit Approach

• Packets (frames) are switched along a
  pre-determined path from source to destination
• Virtual circuit network has two addresses
• Global address which is unique in the WAN
• Virtual circuit identifier which is actually used
  for data transfer
• VCI has switch scope it is used between two
  switches
• Each switch can use its own unique set of VCIs

6
VCI Phases

• Two approaches for the VC setup
• Permanent virtual circuit (PVC)
• Switched virtual circuit (SVC) setup, data
  transfer, teardown

7
Data Transfer Phase

• All switches need to have a table entry for the
  virtual circuit

8
Data Transfer using VCI
9
SVC Setup Request and Acknowledgment
10
Frame Relay

• Frame Relay is a virtual circuit wide area
  network
• VCIs in Frame Relay are called DLCIs(Data Link
  Connection Identifier)

11
Frame Relay Features

• Frame relay operates at a higher speed. It can
  easily be used instead of a mesh of T-1 or T-3
  lines (1.544 Mbps or 44.376 Mbps)
• Frame relay operates just the physical and data
  link layers. It is good as a backbone to provide
  services to protocols that already have a network
  layer protocol, such as Internet
• It allows bursty data
• It allows a frame size of 9000 bytes
  accommodating all LAN frame sizes
• It is less expensive than other traditional WANs
• It has error detection at the data link layer
  only. There is no flow control pr error control
• X.25 ? Leased Lines ? Frame Relay

12
Frame Relay vs. T-line Network
13
Frame Relay vs. X.25 Network
14
Frame Relay Layers

• Frame relay operates only at the physical and
  data link layers

15
Comparing Layers X.25 Frame Relay
16
Frame Relay Frame
17
Congestion Control

• Frame relay requires congestion control, because
• Frame Relay does not have a network layer
• No flow control at the data link layer
• Frame Relay allows the user to transmit bursty
  data
• Congestion avoidance
• Two bits in the frame are used
• BECN(Backward Explicit Congestion Notification)
• FECN(Forward Explicit Congestion Notification)
• Discard eligibility(DE)
• Priority level of the frame for traffic control
• Discarding frame to avoid the congestion or
  collapsing

18
BECN
19
FECN
20
Four Cases of Congestion
21
Extended Address Three Address Formats
FRAD
22
ATM

• Asynchronous Transfer Mode
• ATM is the cell relay protocol designed by ATM
  forum and adopted by ITU-T
• ATM uses asynchronous TDM
• Cells are transmitted along virtual circuits
• Design Goals
• Large bandwidth and less susceptible to noise
  degradation
• Interface with existing systems without lowering
  their effectiveness
• Inexpensive implementation
• Support the existing telecommunications
  hierarchies
• Connection-oriented to ensure accurate and
  predictable delivery
• Many functions are hardware implementable

23
Multiplexing using Cells

• The variety of packet sizes makes traffic
  unpredictable
• A cell network uses the cell as the basic unit of
  data exchange
• A cell is defined as a small, fixed sized block
  of information
• Cells are interleaved so that non suffers a long
  delay
• A cell network can handle real-time transmissions
• Network operation is more efficient and cheaper

24
Synchronous vs. Asynchronous TDM
25
ATM Architecture

• UNI user-to-network interface
• NNI network-to-network interface

26
Virtual Connection

• Connection between two endpoints is accomplished
  through
• Transmission path (TP)
• Virtual path (VP)
• Virtual circuit (VC)
• A virtual connection is defined by a pair of
  numbers VPI and VCI

27
VPI and VCI Hierarchical Switching
28
Identifiers and Cells
29
VP Switch and VPC Switch
30
ATM Layers
31
ATM Layer and Headers
32
Application Adaptation Layer (AAL)

• Convert data from upper-layer into 48-byte data
  units for the ATM cells
• AAL1 constant bit rate (CBR) video and voice
• AAL2 variable bit rate (VBR) stream ?
  low-bit-rate traffic an short-frame
• traffic such as audio (ex
  mobile phone)
• AAL3/4 connection-oriented/connectionless data
• AAL5 SEAL (Simple and Efficient Adaptation
  Layer)
• No sequencing and error
  control mechanisms

33
AAL1
34
AAL2
35
AAL3/4
36
AAL5
37
ATM LAN

• ATM is mainly a wide-area network (WAN ATM)
  however, the technology can be adapted to
  local-area networks (ATM LANs). The high data
  rate of the technology has attracted the
  attention of designers who are looking for
  greater and greater speeds in LANs.

38
Pure and Legacy ATM LAN
39
Mixed Architecture ATM LAN
40
LAN Emulation (LANE)

• Connectionless versus connection-oriented
• Physical addresses versus virtual-circuit
  identifiers
• Multicasting and broadcasting delivery
• Interoperability
• Client/Server model in a LANE
• LANE Configuration Server (LECS), LANE Server
  (LES), LANE Client (LEC)
• Broadcast/Unknown Server (BUS)

41
Mixed Architecture Using LANE
