Virtual Optoelectronics with SGI at Strathclyde

1

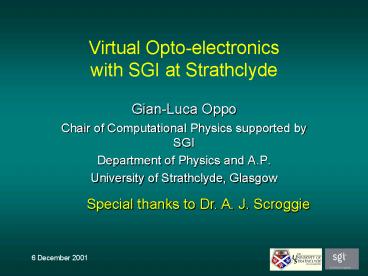

Virtual Opto-electronics with SGI at Strathclyde

• Gian-Luca Oppo
• Chair of Computational Physics supported by SGI
• Department of Physics and A.P.
• University of Strathclyde, Glasgow

Special thanks to Dr. A. J. Scroggie
2
Opto-electronics

• Integration of optical and electronic
  technologies
• It employs light to process and transfer data
  (e.g. lasers)
• Main applications communications (more than 70
  of terrestrial phone lines in the UK are
  optical), CD-DVD players, sensors, components,
  technology for medicine etc.
• Present market world-wide over 100 billions U
• Present status on the stock market HEALTHY in
  spite of recent downturns

3
Optoelectronics in Scotland

• Employs more than 5000 people at present
• Steady and fast growth. Turnover over 600 million

• Well established companies (Marconi, BAE,
  Pilkington, Agilent, etc.) as well as a large
  number of new and innovative companies of recent
  years (Kymata, Coherent Scotland, Intense
  Photonics, Kamelian, Optos ..)
• Many spin-offs from Scottish Univeristies
• Great industry-academia partnerships
• Major support from Scottish Enterprise

4
Virtual Optoelectronics at Strathclyde

• Cheap assessment of devices ahead of
  fabrication
• The VIDEOS and VISION Projects
• Example 1 Virtual devices
• Example 2 Virtual laser laboratory
• Example 3 Handling optical data in a virtual
  environment
• Example 4 A virtual application trapping atoms
  in optical sprinklers

5
SGI Facilities for VOE at Strathclyde

• 12 parallel processors ONYX 2 (small) Virtual
  Reality T.
• 16 parallel processors Origin 300 (just
  installed)
• Three 4 processors Origin 200 14 SGI
  workstations
• New VIDEOS award ?

The VIDEOS Project

• Virtual Interactive Design of Electronics and
  Opto-electronics Systems (2 parallel
  supercomputers)
• Collaboration with EEE at Glasgow University
• Supported by SHEFC RDG grant

6
The VIDEOS Project
Semiconductor Lasers and Devices Harmonic
Sub-harmonic frequency generators Photonic
Crystals Couplers Solitons Short Pulses in
VECSEL VCSEL
Multi-mode emission of a ridge waveguide
semiconductor laser
7
Virtual Optoelectronics in the Vision Project
VIRTUAL DEVICES
BIOPHOTONICS
SEMI CONDUCTORPHYSICS
SENSORS ULTRASONIC
ULTRA-SHORT PULSES
APPLICATIONS
8
Example 1 Virtual Devices

• Numerical simulations of Laser systems and other
  Opto-electronics devices
• High level of accuracy of numerical models
• Parallel implementation on HPC machines
• Possible reliable comparison with experiments
• Virtual Prototypes

9
Example 2Virtual Laser Laboratories
Interactive Projects

• Research Project Dilemma

Theory Too difficult ! Experiments Too
expensive ! SOLUTION Virtual Laboratories
Absorber
10
Example 2Virtual Laser Laboratory
11
Example 3 Handling Complex Data in a Virtual
Environment

• Optical detection
• Removal of noise (filtering)
• Data decoding reconstruction
• High dimensional correlations
• Comparison with data from virtual models
  prototypes
• Three, four higher dimensional renderings
• Data coding and long distance transmission

12
Example 4 Virtual Application of OE.Trapping
Atoms in Optical Sprinklers

• New shape of a Laser output intensity
• Central hole and narrow dark line
• Fast rotation in time

• Possibility of trapping atoms in the beam centre
• Slow atoms remain trapped while fast ones leave
  the beam

13
Example 4 Virtual Application of OE.Trapping
Atoms in Optical Sprinklers
w
14
Conclusions

• Virtual Optoelectronics with High Performance
  Computing is a reality
• Powerful combination of graphics and numerical
  simulations
• Applications in Research and Industrial RD
• Preparation of future generation of skilful
  employees
• Thanks to J Cowen, I Wallace and S Wilson
