Brillouin Scattering and Synchrotron XRay Measurements

1

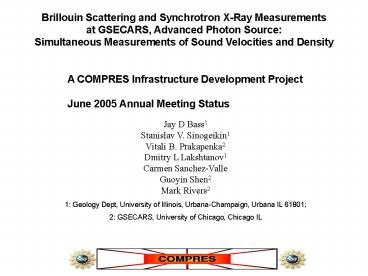

Brillouin Scattering and Synchrotron X-Ray
Measurements at GSECARS, Advanced Photon Source
Simultaneous Measurements of Sound Velocities
and Density
A COMPRES Infrastructure Development
Project June 2005 Annual Meeting Status
Jay D Bass1 Stanislav V. Sinogeikin1 Vitali B.
Prakapenka2 Dmitry L Lakshtanov1 Carmen
Sanchez-Valle Guoyin Shen2 Mark Rivers2 1
Geology Dept, University of Illinois,
Urbana-Champaign, Urbana IL 61801 2 GSECARS,
University of Chicago, Chicago IL
2

• Goals and motivations for building a Brillouin
  system at BMD-13
• Simultaneous measurements of
• Density by x-ray diffraction
• Sound velocities by Brillouin scattering
• Determination of an absolute pressure scales.
• The equation of state and velocities as a
  function of pressure could be determined without
  resort to a secondary pressure standard.
• Velocity-density measurements under a wide range
  of P-T conditions.
• High-T-P EOS parameters of materials (single
  crystal elastic constants, velocities, adiabatic
  and isothermal bulk moduli, shear modulus, and
  their P-T derivatives thermal expansion and
  Gruneisen parameter as a function of P and T)
• A central Brillouin facility, open to the entire
  community and not widely available elsewhere
  (except in a few specialized labs).

3
Interpretation of global seismic information
Japan
Central America
Izu Bonin
Indonesia
Earths Surface
Fiji-Tonga
CMB 2890 km depth
(Kárason and Van der Hilst, AGU Monograph, 2000)
4
Brillouin spectroscopy
obtain sound velocities (Vi VP or VS)
5

• Key design considerations
• User-friendly possible to operate without being
  an expert.
• Quick setup and break-down of Brillouin
  experiments
• Fast and reliable alignment procedure, requiring
  minimum setup time.
• Complete remote control (of optics and
  electronics, data collection, outside the hutch
• Compatible with both powder and single crystal
  diffraction techniques
• Different scattering geometries 50, 80, 180
  degrees.
• Compact ( limited space in beamline station)
• Does not interfere with the other experimental
  techniques on the beamline
• Satisfy all laser safety requirements for Class
  IV laser

6

• Timeline
• 2002-2004. Ordering equipment (e.g. Fabry-Perrot
  interferometer).
• Detailed design of the Brillouin system.
• Building up prototype at UIUC
• Testing , making blueprints, machining parts
  that could not be purchased.
• September 2004. Installing a second level table
  at BMD-13. Installing Fabry- Perot
  interferometer in BMD-13.
• October 2004. Installing most optical components
  at BMD-13.
• January 2005. Installing laser and permanent
  translation stages. Collecting the first
  Brillouin spectrum of standard MgO single crystal
  on Jan 16, 2005.
• February 2005. Commissioning. First measurements
  in DAC single crystal-NaCl to 30 GPa, single
  crystal MgO to 25 GPa polycrystalline B2-NaCl to
  53 GPa.
• Summer and fall 2005. Installation of additional
  components. Simultaneous high-T high-P
  measurements. Preparation for general users.
• 2006. Open for general users.

7
Building The Prototype System at U Illinois
8
Building prototype system in Urbana
9
BMD-13 hutch before installation of the Brillouin
system
10
Schematic diagram and photographs of the
Brillouin system installed at sector 13-BMD at APS
11
Complete Brillouin system combined with X-ray
diffraction hardware
12
Schematic diagram of the Brillouin system
installed at sector 13-BMd at APS
(Upper level)
Permanent optical elements M - mirror L - lens
BS - beam splitter PR - dispersion prism R -
retroreflector SF - spatial filter PMT -
photo-multiplier tube. Laser beam / image
conditioning elements (controllable from outside
the hatch, blue boxes) SSh - safety laser
shutter PRot - polarization rotator LDp - laser
beam depolarizer ICP - intensity control
polarized for stalilization beam IBS imaging
beam splitter CF - color filter NDF - neutral
density filter. Observation / feedback elements
(red boxes) PD - photodiode VC - video camera
MVC - microscope with video camera. Beam / image
alignment elements (yellow boxes) ID - iris
diaphragm ABBS - alignment beam beamsplitter
RBS - retroreflecting beamsplitter
13
(No Transcript)
14
Schematic diagram of the Brillouin system
installed at sector 13-BMd at APS
(Lower level)
Motorized translation components (controllable
from outside the hatch, blue boxes) HMTS -
horizontal motorized translation stage VMTS -
vertical motorized translation stage MLFA -
motorized laser focusing assembly MSCA -
motorized signal collecting assembly SPOA -
sample positioning and orientation assembly
SL-LB - sample light / light block. Observation /
feedback elements (red boxes) VC - video camera
BT - beam target. X-ray components MAR - MAR
Imaging plate XBS - X-ray beam stop CS -
cleanup slit.
15
(No Transcript)
16
X-ray and Brillouin control area for BMD-13
17
Computer interface for controlling X-ray and
Brillouin optics and electronics
18
Schematic view of simultaneous Brillouin
scattering and X-ray diffraction in DAC
19
Simultaneous X-ray and Brillouin experiments
performed in BMD-13 in February 2005

• NaCl in B1 phase to 30 GPa.
• MgO to 25 GPa.
• Aggregate acoustic velocities, elastic moduli and
  equation of state of polycrystalline NaCl in B2
  phase to 53 GPa.
• In all absolute pressure scale experiments gold
  ruby ( platinum powdered NaCl) were added to
  experimental charges to cross calibrate these
  pressure standards against absolute equations of
  state of NaCl and MgO

20
Single crystal NaCl (B1) at 30 GPa (left) and
polycrystalline NaCl (B2) at 53 GPa (right) in
DAC in Nepressure medium
AuPtNaCl
21
MgO in MEW pressure medium. Typical DAC loading
for absolute pressure scale measurements.
22
Single crystal X-ray diffraction and calibration
Brillouin spectrum of MgO at ambient pressure
23
X-ray image and Brillouin spectrum of
polycrystalline NaCl in B2 structure collected
simultaneously at 35 GPa
NaCl Vp
Diamond Vs
NaCl Vs
24
X-ray image and Brillouin spectrum of
single-crystal NaCl (B1) in Ne at 26 GPa
25
Brillouin spectrum of single crystal MgO in 100
direction in a Diamond anvil cell at 4 GPa.
Collection time is 3.3 min.
26
Acknowledgments

• COMPRES
• Jennifer Jackson
• Dave Mao
• J Shu
