Fast State Discovery for HMM Model Selection and Learning

1

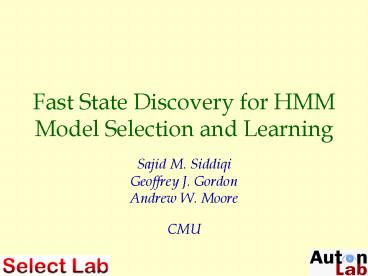

Fast State Discovery for HMM Model Selection and
Learning

• Sajid M. Siddiqi
• Geoffrey J. Gordon
• Andrew W. Moore
• CMU

2
Ot
t
Consider a sequence of real-valued observations
(speech, sensor readings, stock prices )
3
Ot
t
Consider a sequence of real-valued observations
(speech, sensor readings, stock prices ) We
can model it purely based on contextual properties
4
Ot
t
Consider a sequence of real-valued observations
(speech, sensor readings, stock prices ) We
can model it purely based on contextual properties
5
Ot
t
Consider a sequence of real-valued observations
(speech, sensor readings, stock prices ) We
can model it purely based on contextual
properties However, we would miss important
temporal structure
6
Ot
t
Consider a sequence of real-valued observations
(speech, sensor readings, stock prices ) We
can model it purely based on contextual
properties However, we would miss important
temporal structure
7
Ot
t
Current efficient approaches learn the wrong
model
8
Ot
t
Current efficient approaches learn the wrong
model
Our method successfully discovers the overlapping
states
9
Ot
t
Our goal Efficiently discover states in
sequential data while learning a Hidden Markov
Model
10
Motion Capture
11
Definitions and Notation

• An HMM is ?A,B,? where
• A N?N transition matrix
• B observation model ?s ,?s for each of N
  states
• ? N?1 prior probability vector
• T size of observation sequence O1,,OT
• qt the state the HMM is in at time t. qt ?
  s1,,sN

12
Operations on HMMs
13
Operations on HMMs
14
Previous Approaches

• Multi-restart Baum-Welch N is inefficient, highly
  prone to local minima

15
Previous Approaches

• Multi-restart Baum-Welch N is inefficient, highly
  prone to local minima

16
Previous Approaches

• Multi-restart Baum-Welch N is inefficient, highly
  prone to local minima

17
Previous Approaches

• Multi-restart Baum-Welch N is inefficient, highly
  prone to local minima

We propose Simultaneous Temporal and Contextual
Splitting (STACS) A top-down approach that is
much better at state-discovery while being at
least as efficient, and a variant V-STACS that is
much faster.
18
Bayesian Information Criterion (BIC) for Model
Selection

• - Would like to compute the posterior probability
  for model selection
• P(model sizedata) / P(datamodel size) P(model
  size)
• log P(model sizedata) / log P(datamodel size)
  log P(model size)

19
Bayesian Information Criterion (BIC) for Model
Selection

• - Would like to compute the posterior probability
  for model selection
• P(model sizedata) / P(datamodel size) P(model
  size)
• log P(model sizedata) / log P(datamodel size)
  log P(model size)
• - BIC assumes a prior that penalizes complexity
  (favors smaller models)
• log P(model sizedata) ¼ log
  P(datamodel size,?MLE) (FP/2) log T
• where FP number of free parameters, T
  length of data sequence, ?MLE is the ML
  parameter estimate

20
Bayesian Information Criterion (BIC) for Model
Selection

• - Would like to compute the posterior probability
  for model selection
• P(model sizedata) / P(datamodel size) P(model
  size)
• log P(model sizedata) / log P(datamodel size)
  log P(model size)
• - BIC assumes a prior that penalizes complexity
  (favors smaller models)
• log P(model sizedata) ¼ log
  P(datamodel size,?MLE) (FP/2) log T
• where FP number of free parameters, T
  length of data sequence, ?MLE is the ML
  parameter estimate
• - BIC is an asymptotic approximation to the true
  posterior

21
Algorithm Summary (STACS/VSTACS)

• Initialize n0-state HMM randomly
• for n n0 Nmax
• Learn model parameters
• for i 1 n
• Split state i, optimize by constrained EM
  (STACS)or constrained Viterbi Training (VSTACS)
• Calculate approximate BIC score of split model
• Choose best split based on approximate BIC
• Compare to original model with exact BIC
  (STACS)or approximate BIC (VSTACS)
• if larger model not chosen, stop

22
STACS

• input n0, data sequence O O1,,OT
• output HMM ? of appropriate size
• ? n0-state initial HMM
• repeat
• optimize ? over sequence O
• choose a subset of states ?
• for each s ? ?
• design a candidate model ?s
• choose a relevant subset of sequence O
• split state s, optimize ?s over subset
• score ?s
• end for
• if maxs(score(?s)) gt score(?)
• ? ? best-scoring candidate from ?s
• else

23
STACS

• Learn parameters using EM, calculate the Viterbi
  path Q

• input n0, data sequence O O1,,OT
• output HMM ? of appropriate size
• ? n0-state initial HMM
• repeat
• optimize ? over sequence O
• choose a subset of states ?
• for each s ? ?
• design a candidate model ?s
• choose a relevant subset of sequence O
• split state s, optimize ?s over subset
• score ?s
• end for
• if maxs(score(?s)) gt score(?)
• ? ? best-scoring candidate from ?s
• else

24
STACS

• Learn parameters using EM, calculate the Viterbi
  path Q
• Consider splits on all states
• e.g. for state s2

• input n0, data sequence O O1,,OT
• output HMM ? of appropriate size
• ? n0-state initial HMM
• repeat
• optimize ? over sequence O
• choose a subset of states ?
• for each s ? ?
• design a candidate model ?s
• choose a relevant subset of sequence O
• split state s, optimize ?s over subset
• score ?s
• end for
• if maxs(score(?s)) gt score(?)
• ? ? best-scoring candidate from ?s
• else

25
STACS

• Learn parameters using EM, calculate the Viterbi
  path Q
• Consider splits on all states
• e.g. for state s2
• Choose a subset D Ot Q(t) s2

• input n0, data sequence O O1,,OT
• output HMM ? of appropriate size
• ? n0-state initial HMM
• repeat
• optimize ? over sequence O
• choose a subset of states ?
• for each s ? ?
• design a candidate model ?s
• choose a relevant subset of sequence O
• split state s, optimize ?s over subset
• score ?s
• end for
• if maxs(score(?s)) gt score(?)
• ? ? best-scoring candidate from ?s
• else

26
STACS

• Learn parameters using EM, calculate the Viterbi
  path Q
• Consider splits on all states
• e.g. for state s2
• Choose a subset D Ot Q(t) s2
• Note that D O(T/N)

• input n0, data sequence O O1,,OT
• output HMM ? of appropriate size
• ? n0-state initial HMM
• repeat
• optimize ? over sequence O
• choose a subset of states ?
• for each s ? ?
• design a candidate model ?s
• choose a relevant subset of sequence O
• split state s, optimize ?s over subset
• score ?s
• end for
• if maxs(score(?s)) gt score(?)
• ? ? best-scoring candidate from ?s
• else

27
STACS

• Split the state

• input n0, data sequence O O1,,OT
• output HMM ? of appropriate size
• ? n0-state initial HMM
• repeat
• optimize ? over sequence O
• choose a subset of states ?
• for each s ? ?
• design a candidate model ?s
• choose a relevant subset of sequence O
• split state s, optimize ?s over subset
• score ?s
• end for
• if maxs(score(?s)) gt score(?)
• ? ? best-scoring candidate from ?s
• else

28
STACS

• Split the state
• Constrain ?s to ? except for offspring states
  observation densities and all their transition
  probabilities, both in and out

• input n0, data sequence O O1,,OT
• output HMM ? of appropriate size
• ? n0-state initial HMM
• repeat
• optimize ? over sequence O
• choose a subset of states ?
• for each s ? ?
• design a candidate model ?s
• choose a relevant subset of sequence O
• split state s, optimize ?s over subset
• score ?s
• end for
• if maxs(score(?s)) gt score(?)
• ? ? best-scoring candidate from ?s
• else

29
STACS

• Split the state
• Constrain ?s to ? except for offspring states
  observation densities and all their transition
  probabilities, both in and out
• Learn the free parameters using two-state EM over
  D. This optimizes the partially observed
  likelihood P(O,Q\D ?s)

• input n0, data sequence O O1,,OT
• output HMM ? of appropriate size
• ? n0-state initial HMM
• repeat
• optimize ? over sequence O
• choose a subset of states ?
• for each s ? ?
• design a candidate model ?s
• choose a relevant subset of sequence O
• split state s, optimize ?s over subset
• score ?s
• end for
• if maxs(score(?s)) gt score(?)
• ? ? best-scoring candidate from ?s
• else

30
STACS

• Split the state
• Constrain ?s to ? except for offspring states
  observation densities and all their transition
  probabilities, both in and out
• Learn the free parameters using two-state EM over
  D. This optimizes the partially observed
  likelihood P(O,Q\D ?s)
• Update Q over D to get R

• input n0, data sequence O O1,,OT
• output HMM ? of appropriate size
• ? n0-state initial HMM
• repeat
• optimize ? over sequence O
• choose a subset of states ?
• for each s ? ?
• design a candidate model ?s
• choose a relevant subset of sequence O
• split state s, optimize ?s over subset
• score ?s
• end for
• if maxs(score(?s)) gt score(?)
• ? ? best-scoring candidate from ?s
• else

31
STACS

• Scoring is of two types

• input n0, data sequence O O1,,OT
• output HMM ? of appropriate size
• ? n0-state initial HMM
• repeat
• optimize ? over sequence O
• choose a subset of states ?
• for each s ? ?
• design a candidate model ?s
• choose a relevant subset of sequence O
• split state s, optimize ?s over subset
• score ?s
• end for
• if maxs(score(?s)) gt score(?)
• ? ? best-scoring candidate from ?s
• else

32
STACS

• Scoring is of two types
• The candidates are compared to each other
  according to their Viterbi path likelihoods

• input n0, data sequence O O1,,OT
• output HMM ? of appropriate size
• ? n0-state initial HMM
• repeat
• optimize ? over sequence O
• choose a subset of states ?
• for each s ? ?
• design a candidate model ?s
• choose a relevant subset of sequence O
• split state s, optimize ?s over subset
• score ?s
• end for
• if maxs(score(?s)) gt score(?)
• ? ? best-scoring candidate from ?s
• else

vs.
33
STACS

• Scoring is of two types
• The candidates are compared to each other
  according to their Viterbi path likelihoods
• The best candidate in this ranking is compared to
  the un-split model ? using BIC, i.e.
• log P(model data ) ? log P(data model)
  complexity penalty

• input n0, data sequence O O1,,OT
• output HMM ? of appropriate size
• ? n0-state initial HMM
• repeat
• optimize ? over sequence O
• choose a subset of states ?
• for each s ? ?
• design a candidate model ?s
• choose a relevant subset of sequence O
• split state s, optimize ?s over subset
• score ?s
• end for
• if maxs(score(?s)) gt score(?)
• ? ? best-scoring candidate from ?s
• else

vs.
vs.
34
Viterbi STACS (V-STACS)

• input n0, data sequence O O1,,OT
• output HMM ? of appropriate size
• ? n0-state initial HMM
• repeat
• optimize ? over sequence O
• choose a subset of states ?
• for each s ? ?
• design a candidate model ?s
• choose a relevant subset of sequence O
• split state s, optimize ?s over subset
• score ?s
• end for
• if maxs(score(?s)) gt score(?)
• ? ? best-scoring candidate from ?s
• else

35
Viterbi STACS (V-STACS)

• Recall that STACS learns the free parameters
  using two-state EM over D. However, EM also has
  winner-take-all variants

• input n0, data sequence O O1,,OT
• output HMM ? of appropriate size
• ? n0-state initial HMM
• repeat
• optimize ? over sequence O
• choose a subset of states ?
• for each s ? ?
• design a candidate model ?s
• choose a relevant subset of sequence O
• split state s, optimize ?s over subset
• score ?s
• end for
• if maxs(score(?s)) gt score(?)
• ? ? best-scoring candidate from ?s
• else

36
Viterbi STACS (V-STACS)

• Recall that STACS learns the free parameters
  using two-state EM over D. However, EM also has
  winner-take-all variants
• V-STACS uses two-state Viterbi training over D to
  learn the free parameters, which uses hard
  updates vs STACS soft updates

• input n0, data sequence O O1,,OT
• output HMM ? of appropriate size
• ? n0-state initial HMM
• repeat
• optimize ? over sequence O
• choose a subset of states ?
• for each s ? ?
• design a candidate model ?s
• choose a relevant subset of sequence O
• split state s, optimize ?s over subset
• score ?s
• end for
• if maxs(score(?s)) gt score(?)
• ? ? best-scoring candidate from ?s
• else

37
Viterbi STACS (V-STACS)

• Recall that STACS learns the free parameters
  using two-state EM over D. However, EM also has
  winner-take-all variants
• V-STACS uses two-state Viterbi training over D to
  learn the free parameters, which uses hard
  updates vs STACS soft updates
• The Viterbi path likelihood is used to
  approximate the BIC vs. the un-split model in
  V-STACS

• input n0, data sequence O O1,,OT
• output HMM ? of appropriate size
• ? n0-state initial HMM
• repeat
• optimize ? over sequence O
• choose a subset of states ?
• for each s ? ?
• design a candidate model ?s
• choose a relevant subset of sequence O
• split state s, optimize ?s over subset
• score ?s
• end for
• if maxs(score(?s)) gt score(?)
• ? ? best-scoring candidate from ?s
• else

38
Time Complexity

• Optimizing N candidates takes
• N? O(T) time for STACS
• N ? O(T/N) time for V-STACS
• Scoring N candidates takes N ? O(T) time
• Candidate search and scoring is O(TN)
• Best-candidate evaluation is
• O(TN2) for BIC in STACS
• O(TN) for approximate BIC in V-STACS

39
Other Methods

• Li-Biswas
• Generates two candidates
• splits state with highest-variance
• merges pair of closest states (rarely chosen)

40
Other Methods

• Li-Biswas
• Generates two candidates
• splits state with highest-variance
• merges pair of closest states (rarely chosen)
• Optimizes all candidate parameters over entire
  sequence

41
Other Methods

• Li-Biswas
• Generates two candidates
• splits state with highest-variance
• merges pair of closest states (rarely chosen)
• Optimizes all candidate parameters over entire
  sequence
• ML-SSS
• Generates 2N candidates, splitting each state in
  two ways

42
Other Methods

• Li-Biswas
• Generates two candidates
• splits state with highest-variance
• merges pair of closest states (rarely chosen)
• Optimizes all candidate parameters over entire
  sequence
• ML-SSS
• Generates 2N candidates, splitting each state in
  two ways
• Contextual split optimizes offspring states
  observation densities with 2-Gaussian mixture EM,
  assumes offspring connected in parallel

43
Other Methods

• Li-Biswas
• Generates two candidates
• splits state with highest-variance
• merges pair of closest states (rarely chosen)
• Optimizes all candidate parameters over entire
  sequence
• ML-SSS
• Generates 2N candidates, splitting each state in
  two ways
• Contextual split optimizes offspring states
  observation densities with 2-Gaussian mixture EM,
  assumes offspring connected in parallel
• Temporal split optimizes offspring states
  observation densities, self-transitions and
  mutual transitions with EM, assumes offspring
  in series

44
Other Methods

• Li-Biswas
• Generates two candidates
• splits state with highest-variance
• merges pair of closest states (rarely chosen)
• Optimizes all candidate parameters over entire
  sequence
• ML-SSS
• Generates 2N candidates, splitting each state in
  two ways
• Contextual split optimizes offspring states
  observation densities with 2-Gaussian mixture EM,
  assumes offspring connected in parallel
• Temporal split optimizes offspring states
  observation densities, self-transitions and
  mutual transitions with EM, assumes offspring
  in series
• Optimizes split of state s over all timesteps
  with nonzero posterior probability of being in
  state s i.e. O(T) data points

45
Results
46
Data sets

• Australian Sign-Language data collected from 2
  Flock 5DT instrumented gloves and Ascension
  flock-of-birds trackerKadous 2002 (available in
  UCI KDD Archive)
• Other data sets obtained from the literature
• Robot, MoCap, MLog, Vowel

47
Learning HMMs of Predetermined SizeScalability

• Robot data (others similar)

48
Learning HMMs of Predetermined Size
Log-Likelihood

• Learning a 40-state HMM on Robot data (others
  similar)

49
Learning HMMs of Predetermined Size
Learning 40-state HMMs
50
Model Selection Synthetic Data

• Generalize (4 states, T 1000) to (10 states, T
  10,000)

51
Model Selection Synthetic Data

• Generalize (4 states, T 1000) to (10 states, T
  10,000)
• Both STACS, VSTACS discovered 10 states and
  correct underlying transition structure

52
Model Selection Synthetic Data

• Generalize (4 states, T 1000) to (10 states, T
  10,000)
• Both STACS, VSTACS discovered 10 states and
  correct underlying transition structure
• Li-Biswas, ML-SSS failed to find 10-state model
• 10-state Baum-Welch also failed to find correct
  observation and transition models, even with 50
  restarts!

53
Model Selection BIC score

• MoCap data (others similar)

54
Model Selection
55
Sign-language recognition

• Initial results on sign-language word recognition
• 95 distinct words, 27 instances each, divided 81
• Average classification accuracies and HMM sizes

Accuracy final N
56
Modeling motion capture data

• 35-dimensional data (thanks to Adrien Treuille)

57
Modeling motion capture data

• Original data
•


58
Modeling motion capture data

• Original data STACS simulation
  (found 235
  states)
•


59
Modeling motion capture data

• Original data STACS simulation
  Baum-Welch

  (found 235 states) (on 235 states)
•


60
Modeling motion capture data

• Original data STACS simulation
  Baum-Welch

  (found 235 states) (on 235 states)
•

• Video

61
Discovering Underlying Structure

• Sparse dynamics - difficult to learn using
  regular EM
• STACS smoothly tiles the low-dimensional manifold
  of observations along with correct dynamic
  structure

62
Conclusion

• A better method for HMM model selection and
  learning
• discovers hidden states
• avoids local minima
• faster than Baum-Welch
• Even when learning HMMs with known size, better
  to discover states using STACS up to the desired
  N
• Widespread applicability
• classification, recognition and prediction for
  real-valued sequential data problems

63
(No Transcript)
64
(No Transcript)
65
(No Transcript)
66
The Viterbi path is denoted by Suppose we split
state N into s1,s2
67
The Viterbi path is denoted by Suppose we split
state N into s1,s2
?
?
?
?
?
?
?
?
68
The Viterbi path is denoted by Suppose we split
state N into s1,s2
69
The Viterbi path is denoted by Suppose we split
state N into s1,s2
