Title: Perbandingan kinerja Thunderbird

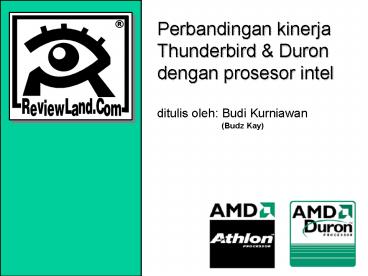

1
Perbandingan kinerjaThunderbird Durondengan
prosesor intelditulis oleh Budi Kurniawan
(Budz Kay)
2
PERSEPSI KENYATAAN SEPUTAR PROSESOR
?
  • POPULARITAS atau KECEPATAN?
  • BRAND AWARENESS
  • BIAYA IKLAN ? HARGA PRODUK
  • HARGA LEBIH MAHAL PERFORMA LEBIH BAGUS?

3
AMDThunderbird
  • Thunderbird700 1200 MHz
  • bus 100 (200MHz)
  • bus 133 (266MHz)
  • L1 cache 128KB
  • L2 cache 256KB
  • Diproduksi di - Austin, Texas USA- Dresden,
    German
  • Copper interconnect
  • Alumunium interconnect

Athlon generasi pertama
4
AMD Duron
  • Duron 600 850 MHz
  • bus 100 (200MHz)
  • L1 cache 128KB
  • L2 cache 64KB
  • Diproduksi di Austin, Texas
  • Alumunium interconnect

5
Perbandingan spesifikasi
6
MOTHERBOARD SDRAM UNTUK THUNDERBIRD DURON
  • VIA KT133 ? bus 100 contoh ABIT KT7, ASUS
    A7VNorthbridge VIA VT8363Southbridge VIA
    686A (ATA66)
  • VIA KT133A ? bus 133 contoh ABIT KT7A, ASUS
    A7V133Northbridge VIA VT8363A Southbridge
    VIA 686B (ATA100)
  • ABIT KT7 KT7A
  • Softmenu III ? overclock
  • 3-phase power
  • Cooling pada Northbridge

7
MOTHERBOARD DDR UNTUK THUNDERBIRD DURON
  • AMD 760 ? bus 133 DDR contoh Gigabyte GA-7DX,
    MSI K7TMaster
  • Northbridge AMD 761Southbridge VIA 686B atau
    AMD 766(ATA100)
  • ALiMaGiK ? bus 133 DDR contoh Iwill KA266
  • Northbridge Ali MaGiKSouthbridge ALi M1535
    (ATA100)

8
SEKILAS MENGENAI MEMORY DDR
  • Jenis DDR
  • DDR-200 (PC1600) ? bus 100 DDR
  • DDR-266B (PC2100) ? bus 133 _at_ CL 2.5
  • DDR-266A (PC2100) ? bus 133 _at_ CL 2
    bus 143 _at_ CL 2.5
  • Merk-merk Micron, Infineon.

9
OVERCLOCKING THUNDERBIRD DURON
10
OVERCLOCKING THUNDERBIRD DURON
DIPSWITCH ASUS A7V
Setting BIOS ABIT KT7- FSB dinaikkan-
multiplier dinaikkan- voltase core dinaikkan -
voltase I/O dinaikkan
BIOS ABIT KT7
11
CPU COOLER UNTUK THUNDERBIRD DURON
  • Untuk prosesor versi OEM
  • Pastikan menggunakan CPU Cooler yg
    direkomendasikan di site AMD. ?
    http//www.amd.com/products/athlon/thermals
  • Harus Socket-A compatible
  • Sesuaikan ukuran heatsink dgn motherboard
  • Motherboard harus memiliki CPU Thermal Sensor

RETAIL BOX
Harga berkisar 20 - 25
GLOBAL WIN FOP38 (7000 RPM)
THERMALTAKE CHROME ORB
TAISOL
12
MOTHERBOARD YG MENGGUNAKANTHERMAL SENSOR
!
ABIT KT7
SOLTEK SL-75KV-2X
MOTHERBOARD TANPA THERMAL SENSORASUS A7V, MSI
K7T Pro2, Aopen AK73 Pro
13
Thunderbird sebagai alternatif dari Pentium4
14
Thunderbird vs. Pentium 3 vs. Pentium 4Sysmark
2000 benchmark
BENCHMARK SETUP Motherboard- GIGABYTE GA-7DX-
ABIT KT7A- ABIT KT7- ABIT BX133- ASUS
P4TVideocardGeforce 2 GTS
15
Thunderbird vs. Pentium 3 vs. Pentium 4Game
benchmark
BENCHMARK SETUP Motherboard- GIGABYTE GA-7DX-
ABIT KT7A - ABIT KT7- ABIT BX133- ASUS
P4TVideocardGeforce 2 GTS
16
Thunderbird vs. Pentium 3 vs. Pentium 4MPEG4
Video encoding benchmark
BENCHMARK SETUP Motherboard- GIGABYTE GA-7DX-
ABIT KT7A- ABIT KT7- ABIT BX133- ASUS
P4TVideocardGeforce 2 GTS
17
Thunderbird vs. Pentium 4PC Worldbench2000 result
BENCHMARK SETUP Micron Millenia MaxGateway
Performance 1500Gateway Performance 1000RAM
256MBVideocardGeforce2 Ultra 64MB
18
Thunderbird vs. Pentium 3 vs. Pentium 43D Studio
Max 2 (render frame per jam)
BENCHMARK SETUP Motherboard- GIGABYTE GA-7DX-
ABIT KT7A- ABIT KT7- ABIT BX133- ASUS
P4TVideocardGeforce 2 GTS
19
Pentium4 lebih menawarkan sensasi dibanding
performa?
20
Duron sebagai alternatifdari Celeron Pentium3
21
Duron 600 vs. PIII 600 vs. Celeron 600Quake 3
benchmark
BENCHMARK SETUP MotherboardABIT KT7ABIT
BX133 VideocardGeforce 256 DDR
22
Duron 600 vs. PIII 600 vs. Celeron 6003D Mark
2000 benchmark
BENCHMARK SETUP MotherboardABIT KT7ABIT
BX133 VideocardGeforce 256 DDR
23
Duron 600 vs. PIII 600 vs. Celeron 600SiSoft
Sandra 2000 benchmark
BENCHMARK SETUP MotherboardABIT KT7ABIT
BX133 VideocardGeforce 56 DDR
24
Duron vs. Celeron pada kecepatan 800MHz
Celeron 300 s/d 700 MHzBerjalan pada FSB 66 MHz
Celeron 800 berjalan pada FSB 100
Duron 800berjalan pada FSB 100 DDR (200MHz)
25
Duron sebagai alternatifdari Celeron Pentium3
26
Duron 800 vs. PIII 700 vs. Celeron 800Quake 3
benchmark
BENCHMARK SETUP MotherboardABIT KT7ABIT
BX133 VideocardGeforce 2 GTS
27
Duron 800 vs. PIII 700 vs. Celeron 800Sysmark
2000 benchmark
BENCHMARK SETUP MotherboardABIT KT7ABIT
BX133 VideocardGeforce 2 GTS
28
AMD K6-2 jauh lebih baik drpd P233MMXBusiness
Winstone 99 benchmark
BENCHMARK SETUP Motherboard- ASUS P5A Ali
Alladin V rev. E- ASUS P2B 440BX VideocardTNT
29
Sekilas kinerja perusahaan AMD Intel di tahun
2000
  • Intel
  • Bug pada chipset i820 (Camino)- Kinerja RAMBUS
    kurang memuaskan mengingat harganya mahal-
    Terjadi kekurangan supplyPIII 1 GHz- PIII 1.13
    bermasalah ditarik dari peredaran - Pangsa
    pasar Intel berkurang secara drastis- Intel
    mengalami penurunan income

Pabrik AMD di Dresden, Jerman
AMD- Duron terpilih sebagai best value CPU-
Thunderbird mampu menembus 1.2GHz- AMD 760
chipset motherboard DDR
30
NET INCOMEPERUSAHAAN AMD vs INTELperiode 1999
s/d 2000
PERTUMBUHAN NET INCOME
Sumber Hoovers Business online
31
FUTURE PLANNING
32
Future planningMotherboard dual-CPU
-AMD 760MP (AMD762)-Dual CPU-4 slot memory DDR
-AGP-33MHz PCI-66MHz PCI-Integrated
SCSI-100mbps Ethernet
DUAL
TYAN AMD 760MP
