Title: Week 8 Quality Management Learning Objectives


1

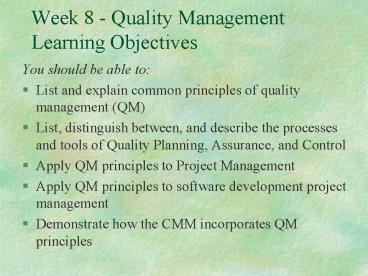

Week 8 - Quality ManagementLearning Objectives
  • You should be able to
  • List and explain common principles of quality
    management (QM)
  • List, distinguish between, and describe the
    processes and tools of Quality Planning,
    Assurance, and Control
  • Apply QM principles to Project Management
  • Apply QM principles to software development
    project management
  • Demonstrate how the CMM incorporates QM
    principles

2
Quality
  • is everyones job,
  • comes from prevention not inspection,
  • means meeting the needs of customers,
  • demands teamwork,
  • requires continuous improvement,
  • involves strategic planning,
  • means results,
  • requires clear measures of success.

3
History of QM/QC/QA
  • Deming plan, do, check, act
  • Juran improvement, planning, control
  • Crosby zero defects, management commitment
  • Ishikawa
  • quality circles, root cause of problems
  • Taguchi prevention vs. inspection
  • Feigenbaum worker responsibility

4
Quality Management
  • Organization-wide commitment culture
  • Results and measurement focus
  • Tools and technical support needed
  • Training and learning
  • Continuous improvement of each process
  • Is it necessary?
  • Can it be done better?

5
7 Malcolm Baldrige Award Categories
  • Pre-production
  • leadership
  • information and analysis
  • strategic quality planning
  • Production
  • human resource allocation
  • quality assurance
  • Post-production
  • quality results
  • customer satisfaction

6
ISO 9000 Standard5 Elements (500 points)
  • Quality Planning
  • Performance Information
  • Cost of Quality (economics)
  • Continuous Improvement
  • Customer Satisfaction

7
Quality in Project Management I
  • ISO 9000, TQM, CQI principles
  • Prevention over inspection
  • lower cost, higher productivity, more cust.
    satisfaction
  • Management responsibility and team participation
  • Plan-do-check-act (re Deming, etc.) - PDCA
  • Applied successfully in environments that have
    well-defined processes and products
  • More difficult in areas like software development

8
Quality in Project Management II
  • Customer satisfaction
  • validation the right job done
  • Conformance to specifications
  • verification the job done right
  • Fitness for use
  • can be used as intended
  • Satisfaction of implied or stated needs
  • All project stakeholders considered
  • Project Management making implicit needs
    explicit
  • Project Processes and Product
  • continuous improvement of both

9
Product Description
Quality Standards
Checklists
Quality Management Plan
Quality Planning
Project Scope
Work Results
Quality Policy
Quality Assurance
Operational Definitions
Quality Control
Quality Improvement Actions
10
Quality Planning (QP)
  • Identifying relevant quality standards
  • Determining how to meet them
  • QP inputs
  • quality policy adopted, disseminated
  • scope and product description
  • standards, regulations

11
Software Quality Planning
  • Functionality
  • features required and optional
  • Outputs
  • Performance
  • volume of data, number of users
  • response time, growth rate
  • Reliability MTBF (mean time between failures)
  • Maintainability

12
QP Outputs
  • Quality management plan
  • how team will implement quality policy
  • structure, responsibilities, resources, processes
  • (same as project plan?)
  • Operational definitions
  • metrics what it is and how its measured
  • Checklists
  • industry-specific

13
Quality Assurance (QA)
  • Evaluating project performance regularly to
    assure progress towards meeting standards
  • Inputs
  • quality management plan
  • operational definitions
  • results of measurements
  • Outputs
  • quality improvement actions
  • Tools QP tools, quality audits

14
QP/QA Tools
  • Cost / benefit analysis and tradeoffs
  • less rework higher productivity, lower costs,
    stakeholder satisfaction
  • Design of Experiments
  • comparison of options, approaches
  • Benchmarking
  • comparison of project practices to best practices
  • Cause and effect (fishbone, etc., diagrams)

15
Quality Control (QC)
  • Monitoring project results
  • Measuring compliance with standards
  • Determining causes if not in compliance
  • Identifying ways to eliminate causes
  • Performed throughout project life cycle

16
QC Inputs and Outputs
  • Outputs
  • Quality Improvement
  • Acceptance decisions
  • Rework
  • Process adjustments
  • corrective or preventive actions
  • Completed checklists
  • project records
  • Inputs
  • Work results
  • Quality Management Plan
  • Operational Definitions
  • Checklists

17
QC Tools
  • Pareto analysis
  • 80 / 20 rule
  • histogram frequencies
  • Statistical sampling
  • acceptable deviation
  • 6-sigma
  • 7-run rule
  • Inspection
  • measuring, examining, testing products
  • Control Charts
  • monitor output variables
  • detect instability in process
  • graphical display of results

18
Statistical Quality Control
  • Prevention
  • keeping errors out of the process
  • Inspection
  • keeping defects from the customer
  • Sampling attributes and variables
  • Tolerances acceptable ranges
  • Control limits acceptable levels

19
Testing (Software)
  • During most phases of product development
  • Unit tests
  • Integration testing
  • System testing
  • User acceptance testing

20
Improving Software Quality
  • Leadership
  • top management and organization-wide commitment
    to quality
  • Costs of quality
  • cost of non-conformance
  • costs prevention, appraisal, failures, testing
  • Work environment

21
PMI Maturity Model 5 levels
  • Ad-hoc chaotic, chronic cost schedule delays
  • Abbreviated processes in place, but not
    predictable
  • Organized documented, standards that are used
  • Managed measures are collected
  • Adaptive
  • feedback enables continuous improvement
  • project success is norm

22
Capability Maturity Model (CMM) - 5 levels
  • 1. Initial chaotic, heroic efforts,
    unpredictable
  • 2. Repeatable processes standards established
  • 3. Defined documented standards, training, use
  • 4. Managed quantitative measures, predictable
  • 5. Optimizing defect-prevention,
    organization-wide continuous improvement

23
CMM and Quality(see Appendix A goals for key
process areas)
  • Level 2
  • requirements management (customer focus)
  • project planning (quality planning)
  • project tracking and oversight (quality control)
  • software quality assurance
  • configuration management (prevention)

24
CMM Level 3 and Quality
  • organization process focus (commitment)
  • organization process definition (operational
    definitions)
  • training program
  • software product engineering (prevention)
  • intergroup organization (teamwork)
  • peer reviews (teamwork)

25
CMM Level 4 and Quality
  • Quantitative process improvement
  • Software quality management goals
  • planned and measured

CMM Level 5 and Quality
  • Defect Prevention (prevention)
  • Technology and Process Change Management
    (continuous improvement)

26
Achieving Software Quality
  • Focus on critical requirements early
  • Use metrics early and continuously
  • Provide development tools supporting
  • configuration control, change control
  • test automation, self-documentation
  • abstraction, reliability, reuse
  • Early and continuous demonstration-based
    evaluations
  • Major milestone demonstrations assessed against
    critical requirements

27
Software Quality Measurement
  • Software quality measured by ease of change
  • Examples of data collected
  • Number and types of changes
  • number of components / effort (FPs, SLOC,
    classes...)
  • number of change orders (SCOs)
  • number of defective and fixed components
  • Baseline total size (SLOC, FP, classes, etc.)
  • Scrap broken code, may or may not be fixed
  • Rework healthy early in project, should decrease

28
SCO Software Change Order
  • 1. rework a poor quality component (fix)
  • 2. rework to improve quality (enhancement)
  • 3. accommodate new customer requirement (scope
    change)
  • Configured Baseline
  • the set of products subject to change control
  • size of completed components

29
Software Quality Metrics
  • Modularity
  • breakage localization extent of change re
    baseline size
  • Adaptability
  • cost of change (effort needed to resolve and
    retest)
  • Maturity
  • number of SCOs over time MTBF during testing
  • Each of above 3 should decrease over time
  • Maintainability
  • productivity of rework / productivity of
    development

30
Operational Definitions
  • Defects measured by change orders SCOs
  • Open rework (breakage)
  • broken components measured by SCOs
  • Closed rework (fixes)
  • fixed SCOs
  • Rework effort effort expended fixing SCOs
  • Usage time baseline testing in normal use

31
Quantifying Quality Metrics
  • Modularity
  • breakage / SCOs
  • Adaptability
  • rework effort / SCOs
  • Maturity
  • usage time / SCOs (mean time between defects)
  • Maintainability
  • (percent broken) / (percent rework vs. total
    effort)
  • End-product and over time indicators

32
Peer inspections pros and cons
  • Pros
  • Team development
  • Accountability
  • Determine causes of defects
  • 20 critical components
  • Cons
  • Superficial
  • Not cost effective
  • Other QA activities are more effective
