WATER MANAGEMENT IMPROVEMENTS FOR RODKOHI SYSTEMS Engr' M' Zaheerul Ikram WATER RESOURCES RESEARCH I

1

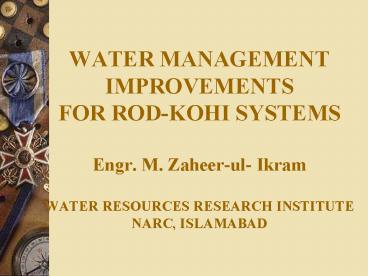

WATER MANAGEMENT IMPROVEMENTS FOR ROD-KOHI
SYSTEMSEngr. M. Zaheer-ul- IkramWATER
RESOURCES RESEARCH INSTITUTENARC, ISLAMABAD
2
ROD-KOHI SYSTEMS

• Non-Perennial Floodwater
• Sulaiman Ranges of D.I.Khan, D.G.Khan, Barkhan,
  Loralai and Zoab
• Kacchi Plain, Lasbela and Kharan Basin of
  Balochistan
• Kirther Range of Jamshoro (Thana Boula Khan),
  Dadu Larkana
• Perennial Kalapani
• D.I.Khan, D.G.Khan, Zhob, Loralai, Kacchi Plain

3
Potential for Development
Mater Feasibility Studies for Flood Management
of Hill-Torrents, NESPAK, 1998.
4
WHY ROD-KOHI IMPORTANT?

• Rod-Kohi helps for
• Water Spreading
• Maintaining Soil Moisture
• Maintaining Soil Fertility
• Recharging Groundwater
• Sustainability of Kalapani
• Supporting Surface Cover and Natural Vegetation

5
TECHNICAL ISSUES

• Inherent uncertainty and unpredictability
• Wet and dry years
• High risks and not equally distributed
• Active land formation - scour and siltation
• Silting of nullahs leading to flood hazards
• Inadequate and inappropriate diversion
• Inequity in distribution of share of water
• Tail-end water users - affected in both extremes
  of flood and drought

6
SOCIAL/INSTITUTIONAL ISSUES

• System deterioration
• Water rights
• Lack of institutional support to water users
• Lack of co-ordination among public sector
  institutions

7
ECONOMIC ISSUES

• Marginal returns
• Difficulty in competing with alternative sources
  of income
• High failure rate of schemes built by public
  sector
• Insufficient provision for water storage
  (domestic and stock water use)
• Substantial investments required

8
RD Activities
9
Water Distribution Structure at D.I.Khan
10
Water Regulating Diversion Structure at D.I.Khan
11
Water control , Diversion Regulating Structure
at Main Stream
12
Water Distribution Structure at D.I.Khan
13
Water Distribution Structure at Barkhan
14
Water Distribution Structure at Barkhan
15
Earthen Diversion Bund at D.I.Khan
16
Plastic Lining at Critical Sections
17
Water Application and Drainage Structures
18
Irrigating the Rod-Kohi field
19
Water Application and Drainage Structure
20
Water Conveyance Irrigation Systems
21
Remodeling of Rod-Kohi Tributary of Nullah Gomal
22
Remodeled Water Conveyance Irrigation System
23
Pipe-Flow Irrigation Systems On
Farmers Dugwells, Barkhan
24
Plantation of Fruit Trees under Pipe Flow
Irrigation Systems
25
Water Bank and Lined Water Channelat Mithawan
Watershed
26
Water Diversion and Control Structures with
Earthen Improvement, Mithawan Watershed
27
Command Area Development
28
Development of New Areas at Mithawan Watershed
29
Conveyance of Water in Rugged Mountainous Terrain

30
Aqueduct coupled with pre-cast parabolic Lining
31
Low Cost Lining of Water Channel
32
Lining of Water Channels
33
LDPE Film Lining 250 Micron
34
4.5 inch Brick Lining
Pre-casted Parabolic Lining
35
Water Harvesting and Check Dams
36
Earthen Water Storage Reservoir at Mithawan
Watershed
37
Earthen Ponds and Lining with Plastic Films at
Barkhan
38
Check Dam
39
Construction of Check Dam at Mithawan Watershed
40
Eyebrow Terraces for Mazri Plantation of Forest
Trees at Barkhan
41
Some failed interventions
42
Small Dam constructed by JICA for
initiating Watershed Management in
Mithanwan Watershed not holding water
43
Water control/ distribution system at Choti Balaa
(Mithawan Dam) silted after 2 floods
44
Water control and distribution system at Choti
Bala
45
Water control and distribution system at Choti
Bala
46
OPTIONS
47
Managing Outflow at Upstream

• Construction of storage dams at upstream to
  induce groundwater recharge and support watershed
  management activities
• Construction of check structures in highlands to
  reduce the velocity of water and trapping of silt

48
Reducing Existing Losses in Conveyance Network
Crop Fields

• Improving the water conveyance system
• Construction of water distribution system at the
  tertiary level
• Construction of field outlets
• Development of earthen ponds for domestic and
  stockwater use
• Addressing land levels

49
Enhancing Productivity-I

• Focus on pulses, fodders, wheat and oilseeds
• Research to breed cultivars which extract water
  from deeper depths
• Research to develop drought tolerant fruit plants

50
Enhancing Productivity-II

• Research to develop low-cost drinking and stock
  water use technologies
• Research to develop high efficiency irrigation
  systems and high-value agriculture
• Reorienting Agriculture Extension for the
  Rod-Kohi areas

51
Institutional

• Rod-Kohi Development Authorities in all the four
  provinces having disciplines of
• Water
• Agriculture
• Forestry
• Education
• Health
• Livestock

52
Future Needs

• Coordination among the public sector institutions
• Catchment management strategies to control
  sedimentation and reduce outflow.
• OFWM be given priority for diversion,
  distribution and application of water as program.
• To create awareness among the civil society
  groups and NGOs to highlight the importance and
  potentiality of the area.
• Rod-Kohi irrigation be included in the
  agricultural engineering faculties curriculum.
