Skewed FlipFlop Transformation for Minimizing Leakage in Sequential Circuits

1

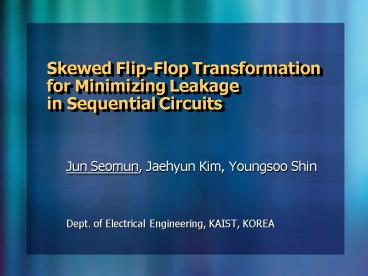

Skewed Flip-Flop Transformation for Minimizing
Leakagein Sequential Circuits

• Jun Seomun, Jaehyun Kim, Youngsoo Shin
• Dept. of Electrical Engineering, KAIST, KOREA

2
Leakage Power in Technology Scaling
250
Dynamic Power
Leakage Power
200
150
Power (W)
100
50
0
0.25µ
0.18µ
0.13µ
0.10µ
0.07µ
Technology
Intel Corporation, 2002
3
Overview of Mixed Vt Technique
Critical path
Initially all low Vt

• Mixed Vt CMOS
• Low Vt fast but high leakage
• High Vt low leakage but slow
• Value of mixed Vt is limited
• It considers only the combinational portion of
  circuits

4
Motivation

• Leakage of sequential elements
• Sequential elements take large proportion in many
  controllers

100
Comb.
Flip-flop
80
60
40
20
0
s382
s298
s344
s349
s400
s444
s526
s641
s713
s838
s9234
5
Why Not High Vt Flip-Flop?

• Large effects on the slack
• The delay overhead of high Vt flip-flops is
  larger than that of the other high Vt
  combinational gates
• Flip-flop typically affects more than one of the
  timing paths in a circuit

6
Skewed Flip-Flops

• Mixed Lgate flip-flop
• Lager Lgate transistor
• Smaller delay overhead than high Vt transistor
• Footprint of gate remains almost the same
• Selective assignment of larger Lgate in flip-flop
• Smaller delay overhead than entire assignment in
  flip-flop
• Maximum reduction can be obtained up to same
  amount of leakage reduction with the case when
  all gates are larger Lgate
• Unequal leakage along with values of D and Q
• Four kinds of SFFs
• Characterized to minimize leakage corresponding
  to four states (D Q)
• SF00, SF01, SF10 and SF11

7
Skewed Flip-Flops

• Design of an SFF (in case of SF00)
• Assume CK 0 in idle state (clock gating)

0
1
1
0
clk
CK
0
0
1
8
Skewed Flip-Flops

• Skewed flip-flops

SF00
SF01
SF10
SF11
clk
9
Leakage Characteristic of SFFs

• 45-nm PTM, 4 nm biasing

1200
1200
800
800
Current nA
Current nA
400
400
0
0
0/0
0/1
1/0
1/1
0/0
0/1
1/0
1/1
D/Q
D/Q
(a) SF00
(b) SF01
1200
1200
800
800
Current nA
Current nA
400
400
0
0
0/0
0/1
1/0
1/1
0/0
0/1
1/0
1/1
D/Q
D/Q
(c) SF10
(d) SF11
10
Timing Characteristic of SFFs

• 45-nm PTM, 4 nm biasing

40
40
30
30
Delay ps
Delay ps
20
20
10
10
0
0
Falling Tc-q
Falling Tc-q
Rising Tsu
Falling Tsu
Rising Tc-q
Rising Tsu
Falling Tsu
Rising Tc-q
(a) SF00
(b) SF01
40
30
30
20
Delay ps
20
Delay ps
10
10
0
0
Falling Tc-q
Falling Tc-q
Rising Tsu
Falling Tsu
Rising Tc-q
Rising Tsu
Falling Tsu
Rising Tc-q
(c) SF10
(d) SF11
11
SFF Transformation

• Utilize SFFs while maintaining timing constraints
• Input netlist idle state probabilities of
  flip-flops
• Output new netlist with skewed flip-flops

12
Half Skewed Flip-Flops (HSFs)

• For a smoother transition
• HSF0 unchanged setup time delay
• HSF1 unchanged clock-to-q delay

HSF0
HSF1
13
SFF Transformation Algorithm

• Select a flip-flop to be transformed
• Find critical path
• Find candidate
• Both ends of the most critical path
• Larger timing improvement

• Substitute
• (1) Most effective SFFs in terms of delay given
  position and phase of transition
• (2) If (1) fails, try HSFs
• (3) If (2) fails, use the original flip-flops

14
Experimental Results

• For ISCAS benchmark circuits (45-nm PTM library)

15
Comparison of Mixed Vt Flip-Flop
1.0
Mixed Vt FFs Mixed Vt comb.
0.9
SFX Mixed Vt comb.
0.8
0.7
0.6
s298
s344
s349
s400
s444
s526
s641
s713
s838
s382
s9234
16
Conclusion

• Proposed Skewed Flip-Flops
• The set of mixed Lgate flip-flops
• Skewed characteristics in terms of leakage and
  delay
• A heuristic algorithm that substitutes SFFs
• An average leakage saving of 16 is achieved,
  compared to the use of mixed Vt alone
