Sustainability and the Mahomet Aquifer

1

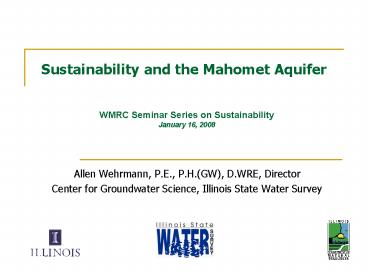

Sustainability and the Mahomet Aquifer
WMRC Seminar Series on Sustainability January 16,
2008

• Allen Wehrmann, P.E., P.H.(GW), D.WRE, Director
• Center for Groundwater Science, Illinois State
  Water Survey

2
Special thanks to
Ed Mehnert Hydrogeology Section Illinois State
Geological Survey
George Roadcap Derek Winstanley Illinois State
Water Survey
3
The Mahomet Aquifer Region
Watseka
WOODFORD CO
Peoria
NORTH
Morton
FORD CO
Normal
IROQUOIS CO
Pekin
Gibson City
Hoopeston
Bloomington
Paxton
TAZEWELL CO
CHAMPAIGN CO
VERMILION CO
MCLEAN CO
Havana
Rantoul
Mahomet
MASON CO
LOGAN CO
Danville
DEWITT CO
Clinton
Urbana
Lincoln
Champaign
MENARD CO
PIATT CO
CASS CO
Monticello
Petersburg
MACON CO
Bedrock high aquifer absent
Decatur
Proposed ethanol plants using Mahomet Aquifer as
principal source
Springfield
4
Sustainability
the ability to meet the needs of the present
generation without compromising the ability of
future generations to meet their needs. United
Nations Brundtland Commission, 1987
5
Groundwater Sustainability
development and use of groundwater in a manner
that can be maintained for an indefinite time
without causing unacceptable environmental,
economic, or social consequences. USGS
Circular 1186, 1999
6
The Hydrologic Cycle Climate, surface water, and
groundwater are linked
7
Porous Systems
Porosity volume of pore space / total volume of
porous material
8
Aquifers vs. Aquitards
An aquifer is a saturated bed, formation, or
group of formations which yields water in
sufficient quantity to be of consequence as a
source of supply.
An aquitard yields inappreciable quantities of
water to wells compared to an aquifer but
through which leakage of water is possible.
Aquitards often act as confining beds.
9
Unconfined vs. Confined Groundwater
An unconfined aquifer is one in which
groundwater possesses a free surface open to the
atmosphere. The upper surface of the zone of
saturation is called the water table.
A confined aquifer is one in which groundwater
is confined under pressure by overlying and
underlying aquitards or aquicludes and water
levels in wells rise above the top of the
aquifer. Also called an artesian aquifer.
10
Unconfined Aquifers
Land Surface
Unsaturated (Vadose) Zone
Water Table
Saturated Zone
Unconfined Aquifer
Bedrock
11
Confined Aquifers
Land Surface
Unsaturated (Vadose) Zone
Water Table
Unconfined Aquifer
Saturated Zone
Potentiometric Surface
Confining Layer - Aquitard
Confined Aquifer
Bedrock
12
Confined Aquifers Artesian Wells
Flowing artesian well
Land surface
Water table
Aquifer
13
Groundwater Stream Interaction
Regional Flow Systems
14
Groundwater Stream Interaction
Regional Flow Systems
15
Groundwater Stream Interaction
Regional Flow Systems
16
Groundwater Stream Interaction
Regional Flow Systems
17
Regional Bedrock Topography
Green higher elevations Light violet lower
elevations
18
The Mahomet Aquifer Region
Watseka
WOODFORD CO
Peoria
NORTH
Morton
FORD CO
Normal
IROQUOIS CO
Pekin
Gibson City
Hoopeston
Bloomington
Paxton
TAZEWELL CO
CHAMPAIGN CO
VERMILION CO
MCLEAN CO
Havana
Rantoul
Mahomet
MASON CO
LOGAN CO
Danville
DEWITT CO
Clinton
Urbana
Lincoln
Champaign
MENARD CO
PIATT CO
CASS CO
Monticello
Petersburg
MACON CO
Bedrock high aquifer absent
Decatur
Proposed ethanol plants using Mahomet Aquifer as
principal source
Springfield
19
Illinois Geologyglacial materials
20
Glacial Depositional Processes
21
Geology of the Mahomet Aquifer
22
Vertical Slice along the Mahomet Valley Thalweg
23

Major Sand Gravel Aquifers
24
Withdrawals from Sand Gravel Aquifers
25
Regional Community Groundwater Use
26
Cone of Depression
Well/Aquifer Interactions
27
Overlapping Cones of Depression Well Interference
Well/Aquifer Interactions
28
Overlapping Cones of Depression Well Interference
A
B
Well/Aquifer Interactions
29
Overlapping Cones of Depression Well Interference
B
A
Well/Aquifer Interactions
30
Overlapping Cones of Depression Well Interference
B
A
Well/Aquifer Interactions
31
Overlapping Cones of Depression
Well/Aquifer Interactions
32
Mahomet Aquifer Groundwater Levels
550
580
680
610
10-foot contour
Flow direction
33
Mahomet Water Levels by the Illinois River
Land Surface 485 MSL elevation
34
(No Transcript)
35
Potentiometric Surface of Eastern Mahomet
Aquifer, 2005
Rantoul
Champaign-Urbana
Danville
Monticello
36
Mahomet Potentiometric Heads near Champaign
37
Water Use Trend at Champaign
38
Withdrawals vs. Head in Mahomet Aquifer near
Champaign
39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
Impacts of pumping on water levels (head)
High-capacity well
Low-capacity well
Glacial till

P
P
P
Mahomet aquifer
43
Impact of pumping hydraulically linked aquifers
Glacial Till
P
Dewatered aquifer
Glasford Aquifer
P
Glacial Till
P
Mahomet Aquifer
44
Interaquifer Connections to the Sangamon River
Mahomet nonpumping head
Glasford nonpumping head
Glasford pumping head
Mahomet pumping head
Decatur 2
Glacial Till
SangamonRiver
Glasford Aquifer
Glacial Till
Mahomet Aquifer
Well/Aquifer Interactions
45
Vertical Slice along the Thalweg
46
ISWS Regional Flow Model Predicted Heads
47
Mahomet Aquifer 1890-1940 (1920s)
48
Drawdown near Champaign 1920s - 2005
49
Potentiometric Surface of the Glasford Aquifer
2007
50
Glasford Mahomet Head Difference
51
Observation Wells near Champaign
Existing
New
52
Model-Predicted Drawdown Q 23 mgd at Champaign
53
The Mahomet Aquifer Region
Watseka
WOODFORD CO
Peoria
NORTH
Morton
FORD CO
Normal
IROQUOIS CO
Pekin
Gibson City
Hoopeston
Bloomington
Paxton
TAZEWELL CO
CHAMPAIGN CO
VERMILION CO
MCLEAN CO
Havana
Rantoul
Mahomet
MASON CO
LOGAN CO
Danville
DEWITT CO
Clinton
Urbana
Lincoln
Champaign
MENARD CO
PIATT CO
CASS CO
Monticello
Petersburg
MACON CO
Bedrock high aquifer absent
Decatur
Proposed ethanol plants using Mahomet Aquifer as
principal source
Springfield
54
East-Central Illinois Water Supply Planning Area
55
The Hydrologic Cycle
A physical and biological framework for regional
water supply planning management
56
(No Transcript)
57
How to Manage Regional Water Supplies?

• Business as usual? Rule of Reasonable Use
• Change?
• Many pieces to the puzzle supply, demand,
  impacts of withdrawals, surface water
  groundwater interaction, water quality,
  conservation, reuse, climate change, droughts,
  planning time horizons, economics

58
Illinois Groundwater Law

• Rights are usufructuary meaning one has the
  right to use the water, as opposed to
  proprietary meaning rights of ownership.
• We can use the water, we do not own the water.
• Riparian Doctrine of Reasonable Use brings
  surface water and groundwater use law together

59
Illinois Groundwater Law

• A landowner has the right to make any
  reasonable use of groundwater as long as it
  relates to some beneficial activity on the
  overlying land even though significant
  interference might result to groundwater supplies
  of adjacent landowners
• In practice, an affected landowner has the right
  to sue for damages or interruption of supply and
  the court will decide on the reasonableness of use

60
How to Manage Regional Water Supplies?

• Previously not had a process or structure for
  regional planning management
• Governors E.O. 2006-01 established such an
  administrative process structure
• The East-Central Illinois Regional Planning
  Committee will need to develop a framework for
  making their management recommendations
• The concept of sustainability is a potential
  framework

61
Thanks!Visit us on the web

• http//www.sws.uiuc.edu

Or Google Illinois State Water Survey
