NeurosciencePain III

1

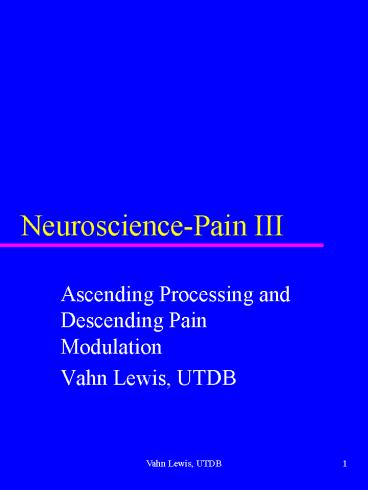

Neuroscience-Pain III

• Ascending Processing and Descending Pain
  Modulation
• Vahn Lewis, UTDB

2
The Trigeminal Projections
3
Ascending Pain Transmission

• The Spinothalamic Tract
• Neospinothalamic tract (bright pain,
  sensory-discriminative coding)
• Paleospinothalamic tract (multisynaptic,
  affect-motivational coding )

4
(No Transcript)
5
Projections of the Spinothalamic Tract
Only 20 of fibers from spinothalamic tract
reach the thalamus.
6
Thalamic projections

• Localization of head region in the thalamus
• Lateral inhibition and acupuncture?

7
Lateral
Medial
lt Sensory-Discriminative -------------Affective-Mo
tivational gt
8
Medial
Lateral
lt Caudal -------------------------------- Facial gt
9
The Cortical projections for pain

• Sensory Homunculus in the Cortex

Lateral
Medial
ltFacial--------------------------------Caudalgt
10
Painful Stimuli Can Activate Regions of the
Limbic Brain

• Pain can elicit emotional responses, memories,
  and learning.
• These aspects of the pain experience are due to
  involvement of the limbic regions of the brain.

11
Thalamus
Spinal Cord
12
Pain Response in Somatorsensory Cortex and
Cingualte Cortex
Multiple cortical areas relate to pain
processing. PET studies identify SI, SII,
frontal, cingulate, and insular cortical regions
responding to painful stimuli.
13
Descending Pain Modulation Pathways
14
Stimulation of Periaqueductal Gray (PAG)

• Activation can be profoundly analgesic
• Analgesia mediated by endogenous opiates(?)
• Moderate levels of endogenous opiates in this
  area
• Electrical stimulation is analgesic
• Morphine injected into PAG is analgesic
• Excitatory Amino Acid link to Nucleus Raphe
  Magnus (NRM)

15
Electrical Stimulation in N. Raphe Magnus (NRM)

• Analgesia mediated by serotonergic mechanisms
• Many 5HT containing cells in this area
• Analgesia can be produced by 5HT injected into
  spinal cord
• on cells and off cells (Feilds, 1988)

16
Nucleus Reticularis ParaGigantoCellularis (RPGC)

• Activation produces analgesia
• Analgesia mediated by noradrenergic neurons

17
Spinal (Trigeminal)

• Endogenous opiate in interneurons
• Enkephalin and dynorphin plentiful
• Intrathecal opiates are analgesic
• Dynorphin acts at both kappa and glutamate (NMDA)
  receptors
• Terminals from 5HT and NE neurons converge here

18
Possible Functions of Endogenous Analgesic
Systems

• Set thresholds for hyperalgesia
• Dynamic modulation of pain sense by attention
• PAG-NRM / N. RPGC-Dorsal horn system
• Stress induced analgesia (Opiate nonopiate)
• Pain reaction variability
• Gate Control Analgesia
• Stimulation induced analgesia (TENS)
• Counter irritant analgesia

19
Pain Induced Analgesia

• Defuse Noxious Inhibitory Control (Le Bars)
• Noxious (painful) stimulation can induce
  analgesia
• Heterosynaptic character
• Brainstem mediated
• Medullary Subnucleus Reticularis Dorsalis (SRD)
  candidate region

20
Summary

• Ascending pain pathways in the brain activate
  reticular formation, ,the thalamus, cortex,
  limbic regions.
• Descending -Modulating activity from the brain
  can modify the pain message passing through the
  dorsal horn.
• There are several pain modifying systems in the
  brain
