Title: A Dos Resilient Flowlevel Intrusion Detection Approach for Highspeed Networks

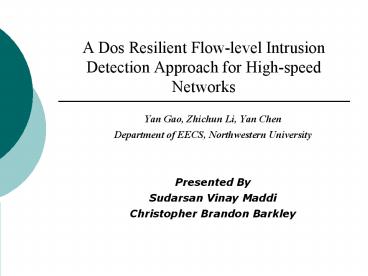

1
A Dos Resilient Flow-level Intrusion Detection
Approach for High-speed Networks
  • Yan Gao, Zhichun Li, Yan Chen
  • Department of EECS, Northwestern University
  • Presented By
  • Sudarsan Vinay Maddi
  • Christopher Brandon Barkley

2
Outline
  • Motivation
  • Background on Sketches
  • Design of the HiFIND system
  • Evaluation
  • Conclusion

3
The Problem
  • The increasing frequency, severity, and
    sophistication of viruses makes it critical to
    detect outbursts at routers and gateways instead
    of end hosts.

4
Current Intrusion Detection Systems
  • Signature-based Detection
  • Anomaly-based Detection

5
Signature-based Intrustion Detection
  • Examples BRO, Snort
  • Perform pattern-matching and report situations
    that match known attack types.
  • Advantage Accurately detects known attack types.
  • Disadvantage Attackers can modify or create
    attacks that avoid detection until a software
    update.

6
Anomaly-based Intrusion Detection
  • Example Manhunt
  • Build a model of acceptable behavior and flag
    exceptions using heuristics.
  • Advantage Model is built according to actual use
    and can detect previously unknown attacks.
  • Disadvantage Heuristic model can lead to false
    positives, system is inaccurate in the beginning
    (when it has little information).

7
Existing Network IDSes Insufficient
  • Signature based IDS cannot recognize unknown or
    polymorphic intrusions
  • Statistical IDSes for rescue, but
  • Flow-level detection unscalable
  • Vulnerable to DoS attacks
  • e.g. TRW IEEE SSP 04, TRW-AC USENIX Security
  • Symposium 04, Superspreader NDSS 05 for
    port scan detection
  • Overall traffic based detection inaccurate, high
    false positives
  • e.g. Change Point Monitoring for flooding
    attack
  • detection IEEE Trans. on DSC 04

8
Existing Network IDSes Insufficient
  • Key features missing
  • Distinguish SYN flooding and various port scans
    for effective mitigation
  • Aggregated detection over multiple vantage points

9
Other Limitations
  • Another limitation of existing IDSes is that they
    are implemented in software.
  • Software-based data recording have trouble
    keeping up with link speeds of high-speed
    routers.
  • To solve this data recording must be hardware
    implementable.

10
HiFIND System
  • The main goal is to develop an accurate
    High-speed Flow-level Intrusion Detection
    (HiFIND) system
  • Leverage the data streaming techniques
    reversible sketches
  • Select an optimal small set of metrics from
    TCP/IP headers for monitoring and detection
  • Aggregate compact sketches from multiple routers
    for distributed detection

11
Goals of HiFIND
  • Scalable to flow-level detection on high speed
    networks
  • DoS resilient
  • Distinguish SYN flooding from port scans
  • Enable aggregate detection over multiple
    gateways.
  • Seperate anomalies to limit false positives.

12
Deployment of HiFIND
  • Attached to a router/switch as a black box
  • Edge network detection particularly powerful

Monitor each port separately
Monitor aggregated traffic from all ports
Original configuration
13
Outline
  • Motivation
  • Background on Sketches
  • Design of the HiFIND system
  • Evaluation
  • Conclusion

14
Reversible Sketches
  • Traditional sketches do not store key information
    making it hard to infer a culprit flow.
  • Reversible sketches use a reversible hashing
    function to infer keys of culprits without
    storing explicit key information.
  • More info Reversible Sketches for Efficient and
    Accurate Change Detection over Network Data
    Streams by Schweller, Gupta, Parsons, and Chen of
    Northwestern University.

15
Two Dimensional k-ary Sketch
  • Instead of using one-dimensional hash table, use
    a 2D hash table matrix.
  • Allows to distinguish between types of attacks by
    keeping track of more information.
  • Ex. Columns are a hash of SIP,DIP, rows are a
    hash of Dport.

16
Outline
  • Motivation
  • Background on Sketches
  • Design of the HiFIND system
  • Architecture
  • Sketch-based intrusion detection
  • Intrusion classification with 2D sketches
  • Feature analysis
  • Evaluation
  • Conclusion

17
Architecture of the HiFIND system
18
Architecture of the HiFIND system
  • Threat model
  • TCP SYN flooding (DoS attack)
  • Port scan
  • Horizontal scan
  • Vertical scan
  • Block scan
  • Forecast methods
  • EWMA

19
Sketch-based Detection Algorithm
20
Sketch-based Detection Algorithm
  • RS(DIP, Dport, SYN - SYN/ACK)
  • Detect SYN flooding attacks
  • RS(SIP, DIP, SYN - SYN/ACK)
  • Detect any intruder trying to attack a particular
    IP address
  • RS(SIP, Dport, SYN - SYN/ACK)
  • Detect any source IP which causes a large number
    of uncompleted connections to a particular
    destination port

21
Intrusion Classification
  • Major challenge
  • Can not completely differentiate different types
    of attacks
  • E.g., if destination port distribution unknown,
    it is hard to distinguish non-Spoofing SYN
    flooding attacks from vertical scans by
  • RS(SIP, DIP, SYN - SYN/ACK)

22
Intrusion Classification
  • Bi-modal distribution

SYN floodings
SYN floodings
Vertical scans
Vertical scans
23
Two-dimensional (2D) Sketch
  • For example differentiate vertical scan from
    SYN flooding attack
  • The two-dimensional k-ary sketches
  • An example of UPDATE operation

24
DoS Resilience Analysis
  • HiFIND system is resilient to various DoS
    attacks as follows
  • Send source spoofed SYN packets to a fixed
    destination
  • Detected as SYN flooding attack
  • Send source spoofed packet to random destinations
  • Evenly distributed in the buckets of each hash
    table, no false positives
  • Reverse-engineer the hash functions to create
    collisions
  • Difficult to reverse engineering of hash
    functions
  • Unknown hash output of each hash function
  • Multiple hash tables and different hash functions
  • Even know the hash functions of sketches
  • Very hard to find collisions through exhaustive
    search

25
Distributed Intrusion Detection
SYN/ACK2
SYN2
SYN1
SYN/ACK1
  • Naive solution
  • Transport all the packet traces or connection
    states to the central site
  • HiFIND
  • Summarize the traffic with compact sketches at
    each edge router, and deliver them to the central
    site

26
Outline
  • Motivation
  • Background on Sketches
  • Design of the HiFIND system
  • Evaluation
  • Conclusion

27
Evaluation Methodology
  • Router traffic traces
  • Lawrence Berkeley National Laboratory
  • One-day trace with 900M netflow records
  • Northwestern University
  • One day experiment in May 2005 with 239M netflow
    records, 1.8TB traffic and 11 packet samples
  • Evaluation metrics
  • Detection accuracy
  • Online performance
  • Speed
  • Memory consumption
  • Memory access per packet

28
Highly Accurate
29
(No Transcript)
30
Detection Validation
  • SYN flooding
  • Backscatter Hscans and Vscans
  • The knowledge of port number
  • e.g. 5 major scenarios of the top 10 Hscans

31
Detection Validation
e.g. 5 major scenarios of the bottom 10 Hscans
32
Online performance evaluation
  • Small memory access per packet
  • 16 memory accesses per packet with parallel
    recording
  • Small memory consumption

33
Online performance evaluation
  • Recording speed
  • Worst case recording 239M items in 20.6 seconds
  • i.e., 11M insertions/sec
  • Detection speed
  • Detection on 1430 minute intervals
  • Average detection time 0.34 seconds
  • Maximum detection time 12.91 seconds
  • Stress experiments in each hour interval
  • Detecting top 100 anomalies with average 35.61
    seconds and maximum 46.90 seconds

34
Outline
  • Motivation
  • Background on Sketches
  • Design of the HiFIND system
  • Evaluation
  • Conclusion

35
Conclusion - Advantages
  • Achieves proposed goals including scalability and
    distinguishing attack types.
  • Highly accurate on test data.
  • Reduction in False Positives
  • Very low memory usage (13.2 MB)

36
Conclusion - Disadvantages
  • HiFIND did not detect some small horizontal port
    scans that TRW detected.
  • Authors said these were a combination of multiple
    small scans too stealthy for their thresholds
  • Future work to further investigate this and find
    a way to account for it.

37
Conclusion Paper Disadvantages
  • Authors vague on implementation, only mentioning
    it used a single FPGA board.
  • Authors not explicitly define terms (e.g.
    Sketches).
  • Authors do not explain or cite heuristics used to
    reduce false positives.

38
Thank You !
  • Questions?
