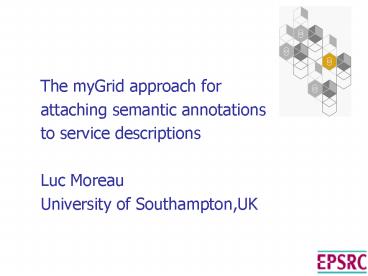

The myGrid approach for

1

• The myGrid approach for
• attaching semantic annotations
• to service descriptions
• Luc Moreau
• University of Southampton,UK

2
Overview

• Motivation
• Existing technologies and limitations
• Metadata attachment
• The Southampton Service Directory
• Conclusion

3
Overview

• Motivation
• Existing technologies and limitations
• Metadata attachment
• The Southampton Service Directory
• Conclusion

4
Service Discovery

• Service discovery is a difficult task in large
  scale, open distributed systems such as the Grid
  and Web, due to the potentially large number of
  services advertised.
• In order to filter out the most suitable
  services, many have advocated the use of semantic
  descriptions of services in a manner that is
  amenable to automatic processing Berners-Lee,
  Hendler, Lassila 2001, damls-iswc02
• AHM03 myGrid and service discovery talks

5
Semantic Discovery

• Semantic discovery is the process of discovering
  services capable of meaningful inter-operability,
  even though the languages or structures with
  which they are described may be different.
• Typically, a semantic discovery process relies on
  semantic annotations, containing high-level
  abstract descriptions of service requirements and
  behaviour.
• This presentation focuses on the means to
  register and discover services according to such
  semantic annotations.

6
Metadata (for the provider)

• An essential element in semantic discovery is to
  allow users to augment service descriptions with
  additional information, i.e. metadata.
• Providers may adopt various ways of describing
  their services, access policies, contract
  negotiation details etc.

7
Metadata (for the consumer)

• Resource consumers can also impose their own
  selection policies on the services they prefer to
  utilise
• provenance,
• derived quality service,
• reputation metrics etc.
• We want a system that allows multiple users (not
  just publishers) to add metadata to service
  descriptions.

8
Metadata about what?

• It is useful to add metadata to
• Service descriptions, and
• Any other concept that may influence the
  discovery process, e.g.
• supported operations,
• types of arguments,
• businesses,
• users.

9
Structured vs. unstructured

• Metadata may be structured according to published
  ontologies, so that it can be interpreted
  unambiguously by multiple users, especially in
  the case of a public registry.
• Alternatively, metadata may also be raw and
  unstructured, in the case of a personal registry
  used by a single user.

10
Overview

• Motivation
• Existing technologies and limitations
• Metadata attachment
• The Southampton Service Directory
• Conclusion

11
A typical UDDI service registration

• Name
• Key
• Location
• WSDL interface

12
A textual representation of a service description
in UDDI
13
UDDI Limitations

• The interface (describe as a WSDL file) is
  referred to by a UDDI construct called TModel,
  and is not contained in the UDDI registration
  itself. Still true with the new TN which does not
  cover a port type content.
• Similarly, TModels can also be used to refer to
  external classifications.
• In conclusion, in UDDI, there is no uniform way
  of querying about services, their interfaces and
  their classifications.

14
A typical abstract WSDL interface

• Set of port types
• Set of operations
• Set of messages and their message parts

15

• lt?xml version"1.0" encoding"UTF-8" ?gt
• ltwsdldefinitions targetNamespace"http//www.ebi
  .ac.uk//alignmentblastn_ncbiderived"
  xmlns"http//schemas.xmlsoap.org/wsdl/"
  xmlnswsdl"http//schemas.xmlsoap.org/wsdl/"gt
• ltwsdlmessage name"runRequest1"gt
• ltwsdlpart name"in0" type"xsdstring" /gt
• ltwsdlpart name"in1" type"xsdstring" /gt
• lt/wsdlmessagegt
• ltwsdlmessage name"runResponse1" /gt
• ltwsdlportType name"AnalysisWSAppLabImpl"gt
• ltwsdloperation name"run" parameterOrder"in0
  in1"gt
• ltwsdlinput message"implrunRequest1"
  name"runRequest1" /gt
• ltwsdloutput message"implrunResponse1"
  name"runResponse1" /gt
• ltwsdlfault message"implSoaplabException"
  name"SoaplabException"/gt
• lt/wsdloperationgt
• lt/wsdlportTypegt
• lt/wsdldefinitionsgt

Excerpt from an EBI sequence alignment service
interface
16

• lt?xml version"1.0" encoding"UTF-8" ?gt
• ltwsdldefinitions targetNamespace"http//www.ebi
  .ac.uk//alignmentblastn_ncbiderived"
  xmlns"http//schemas.xmlsoap.org/wsdl/"
  xmlnswsdl"http//schemas.xmlsoap.org/wsdl/"gt
• ltwsdlmessage name"runRequest1"gt
• ltwsdlpart name"in0" type"xsdstring" /gt
• ltwsdlpart name"in1" type"xsdstring" /gt
• lt/wsdlmessagegt
• ltwsdlmessage name"runResponse1" /gt
• ltwsdlportType name"AnalysisWSAppLabImpl"gt
• ltwsdloperation name"run" parameterOrder"in0
  in1"gt
• ltwsdlinput message"implrunRequest1"
  name"runRequest1" /gt
• ltwsdloutput message"implrunResponse1"
  name"runResponse1" /gt
• ltwsdlfault message"implSoaplabException"
  name"SoaplabException"/gt
• lt/wsdloperationgt
• lt/wsdlportTypegt
• lt/wsdldefinitionsgt

Inputs Details
No information about the meaning of these strings!
17
WSDL Limitations

• Syntactic type string is meant to denote a
  nucleotide sequence data (multiple formats
  supported).
• WSDL does not allow to distinguish the type
  required at the transport layer from the meaning
  of the data.
• In conclusion, WSDL is limited to XSD types and
  does not distinguish syntactic and semantic types.

18
Other Approaches

• BioMoby provides some semantic description for
  atomic services
• DAML-S supports semantic descriptions of
  services, but attachment mechanism is convoluted
  since it involves DAML-S profile, grounding and
  process.
• No direct integration with UDDI standard.

19
Overview

• Motivation
• Existing technologies and limitations
• Metadata attachment
• The Southampton Service Directory
• Conclusion

20
Metadata Attachment

• The capability to attach an arbitrary piece of
  information as a metadata to an entity of a
  service description.
• Metadata can be structured or not.
• Metadata can be used in queries.
• Should contain provenance information (date,
  author)

21
Attaching Ratings to Services
22
Registering myGrid services
myGrid services are characterised by the
following profile

• performs_task e.g. retrieving
• uses_resource e.g. SWISS PROT protein database
• is_function_of e.g. software tool used, e.g.
  BLAST
• uses_method e.g. algorithm used

23
(No Transcript)
24
Attaching metadata to arguments
25

• ltwsdldefinitions targetNamespace"http//www.ebi
  .ac.uk/alignmentblastn_ncbiderived" gt
• ltwsdlmessage name"runRequest1"gt
• ltwsdlpart name"in0" type"xsdstring" /gt
• ltwsdlpart name"in1" type"xsdstring" /gt
• lt/wsdlmessagegt

26
Argument semantic type
rdf_3 a ltwsdlMessagegt
ltwsdlhasQNamegt a ltwsdlQNamegt
ltwsdlhasNameSpacegt "http//www.ebi.ac.uk/align
mentblastn_ncbiderived"
ltwsdlhasLocalNamegt "runRequest1"
ltwsdlhasMessagePartgt rdf_1
a ltwsdlMessagePartgt
ltwsdlhasNamegt "in0"
ltwsdlhasTypeNamegt a
ltwsdlQNamegt
ltwsdlhasNameSpacegt "http//schemas.xmls
oap.org/xsd/"
ltwsdlhasLocalNamegt "string"
ltuddihasMetadatagt a
ltmygridsemantic_typegt
ltuddihasDategt "Fri Aug 22 111229
BST 2003" rdfvalue
ltmygrid2nucleotide_sequence_datagt
ltuddihasAuthorgt "Luc Moreau"
...

27
Overview

• Motivation
• Existing technologies and limitations
• Metadata attachment
• The Southampton Service Directory
• Conclusion

28
Class diagram
29
Publishing Metadata
// Business service. MetadataInfo
addMetadataToBusinessService (String serviceKey,
Metadata metadata) // Business entity.
MetadataInfo addMetadataToBusinessEntity (String
businessKey, Metadata metadata) // Message part
MetadataInfo addMetadataToMessagePart (String
messageNamespace, String messageName, String
partName, Metadata metadata)
30
Extending UDDI api
ServiceList findService (String
businessKey, Vector names, CategoryBag
categoryBag, TModelBag tModelBag, FindQuali
fiers findQualifiers, MetadataInfoBag
metadataInfoBag, int maxRows)
31
Southampton Service Directory

• Information stored in triple store, uniform
  queries through RDQL interface
• Full compatibility with UDDI v2, WSDL
• Attachment of metadata
• Simple DAML-S matchmaker and BioMoby-like
  convenience API.

32
Overview

• Motivation
• Existing technologies and limitations
• Metadata Attachment
• The Southampton Service Directory
• Conclusion

33
Conclusion

• Service is hosted as a Web Service, to be
  migrated to an OGSA service
• Integrated with Manchesters semantic reasoning
  engine
• How to support other APIs (Grid MDS or OGSA
  compatibility)
• Next our focus will be on management policies

34
Acknowledgment

• Simon Miles, Juri Papay, Keith Decker, Terry
  Payne, Michael Luck, David DeRoure,S John
  Dickman, Claudia di Napoli, Richard Lawley,
  Ananth Krishna, Victor Tan
• Carole Goble, Philip Lord, Chris Wroe, Robert
  Stevens
• The myGrid consortium
• myGrid industrial collaborators

35
