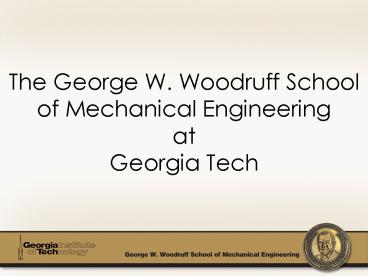

The George W. Woodruff School of Mechanical
Engineering atGeorgia Tech
2
Agenda

• Woodruff School Overview
• Mechanical Engineering Overview
• Student Activities
• Student Organizations
• Academic and Work Opportunities
• Research
• Senior Design Projects
• Student and Alumni Profiles

3
What is Mechanical Engineering?
4
Mechanical Engineering Is

• Which one is something mechanical engineers do?
• Work at Coca-Cola and design bottling equipment
  to use for bottling Coke.
• Work at NASA and be a part of designing the
  replacement for the Space Shuttle, known as
  Project Constellation.
• Work at Michelin and design the next version of
  the air-less tire.
• Work at Ford and help design the suspension on
  the next generation Ford Mustang.
• Design new wind turbines to turn wind capacity
  into renewable energy.
• Perform tissue research to build an artificial
  blood vessel that could be implemented into the
  human body.
• Work at a robotics company designing humanoid
  limbs.
• Design the largest ship, use to transport things
  like oil rigs.

5
Mechanical Engineering Is
Much more than working with cars!!!
Even the best cars!
6
Mechanical Engineering Is

• Finding creative solutions to problems!
• Perhaps the broadest of all the engineering
  disciplines.
• Working with motion, energy, forces, and
  materials.
• Concerned with analysis, design, manufacture and
  operation of areas such as
• Energy
• Defense
• Environment
• Health Bio
• Manufacturing
• Transportation

Scientists discover the world that exists
engineers create the world that never was.
-Theodore Von Karman
SourceL http//www.discoverengineering.org/Engin
eers/mech_engineering.asp
7
Career Flexibility

• Almost every company employs M.E.s
• Upon graduation, our students
• Work as engineers in industry
• Attend graduate schools in
• Mechanical engineering
• Bio-engineering
• Others
• Attend professional schools in
• Business
• Medicine
• Law

8
What are general things MEs do?

• Design
• Product Design
• Machine Design
• System Design
• Manufacturing, Process Development Quality
• Maintenance and Operations
• Research and Development
• Project Management
• Testing
• Sales or Technical Sales
• Other
• Law
• Management
• Business
• Medical Schools

9
Every Product Requires Mechanical Engineering at
Some Point

• Product design (if mechanical)
• Product manufacturing
• Electric power generation
• Raw material extraction and processing
• Production machinery
• Transportation and distribution
• Vehicles, aircraft, ships and engines to run them
• Highway construction equipment

10
What Industries Hire MEs?

• Automotive OEM Suppliers
• Construction Equipment
• Construction Companies
• Ship Railroad Companies
• Airplane Manufacturing
• Power Generation / Nuclear
• Alternative Fuel / Energy
• Utility Companies
• Oil and Gas Companies
• Chemical Companies
• Pharmaceutical Health Care
• Biomedical
• Sports Equipment Mfg.
• Computer-Aided Design
• Automation Robotics

• Electronics Industries
• Appliance Manufacturers
• HVAC Refrigeration
• Toy Manufacturing
• Furniture Manufacturing
• Paper Industry
• Food Beverage Industry
• Telecommunications
• Amusement Parks
• National Labs
• Aeronautical (NASA, etc.)
• Government Agencies
• Academia (Teaching)
• Financial Companies
• Consulting Companies

11
Woodruff School Overview
12
Woodruff School Degrees

• Undergraduate
• BSME Mechanical Engineering
• BSNRE Nuclear Radiological Engineering
• Masters
• MSME Mechanical Engineering
• MSMP Medical Physics
• MSNE Nuclear Engineering
• MSBIOE Bioengineering
• MSPSE Paper Science Engineering
• Doctoral
• Doctor of Philosophy (Ph.D.)

13
Research in Mechanical Engineering
14
Mechanical EngineeringAreas of Research

• Acoustics and Dynamics
• Automation and Mechatronics
• Bioengineering
• Computer Aided Design
• Fluid Mechanics
• Heat Transfer, Combustion and Energy Systems
• Manufacturing
• Mechanics of Materials
• Microelectromechanical Systems (MEMS)
• Nuclear Engineering
• Tribology

15
Mechanical Engineering Research

• ENEMY DETECTION
• A new sensor that measures the motion created by
  sound waves under water could allow the U.S. Navy
  to develop compact arrays to detect the presence
  of enemy submarines.
• These compact arrays would detect quiet
  underwater targets, while providing very clear
  directional information.

• The novel underwater sensor uses optical fibers
  to detect the direction from which a sound is
  coming under water.
• This directional component is an important
  improvement over the current technology.

16
Mechanical Engineering Research

• MATERIALS MAY SOON AID ORTHOPEDIC SURGERY
• Motivation To develop devices that may soon
  improve the treatment of human orthopedic
  conditions.
• Details

• The research focuses on shape-memory polymers
  and alloys solid materials that can change shape
  on demand.
• The ability of these materials to mold actively
  to human bone and tissue will make them useful in
  reconstructive surgery.
• Examples of the product applications are for use
  in knee surgery and those with diabetes who
  develop ankle pain.

17
Mechanical Engineering Research

• ACTIVE CONTROL OF AUTOMOTIVE DISC BRAKE SQUEAL
• Objective To investigate the use of dither
  control (intentionally applied noise) for the
  suppression of automotive disk brake squeal for
  GM.
• Overview Theoretical and experimental models
  are being used to develop an improved
  comprehension of the dynamics involved.

• Experimental Setup The experimental set-up
  (using a brake dynamometer) measures braking
  pressure, brake pad temperature, the normal force
  on the brake pads, braking torque, in-plane
  velocity of brake pads and rotor and acoustic
  measures with a microphone.

18
Mechanical Engineering Research

• NON-INVASEIVE TESTING FOR OSTEOPOROSIS
• Objective To further develop a non-invasive
  technique for analyzing and reporting microdamage
  in the trabecular bone the region most affected
  by osteoporosis.
• Motivation The trabecular bone serves as the
  shock absorber for human joints. Also, severe
  osteoporosis can be extremely painful and costly.

• Method To assess the acoustic emission from the
  trabecular bone by simultaneously acquire
  acoustic emission and stress/strain data.
• The trabeculuar bone specimens used in the
  experiment were extracted from bovine femurs.

Healthy Trabeculuar Bone
Trabecular Bone with Osteoporosis
19
Woodruff School Overview
20
Woodruff School Degrees

• Undergraduate
• BSME Mechanical Engineering
• BSNRE Nuclear Radiological Engineering
• Masters
• MSME Mechanical Engineering
• MSMP Medical Physics
• MSNE Nuclear Engineering
• MSBIOE Bioengineering
• MSPSE Paper Science Engineering
• Doctoral
• Doctor of Philosophy (Ph.D.)

21
Senior Design Projects
22
Senior Design Case Study 1

• Problem Current fret board manufacturing
  process has 25 scrap rate.
• Project Objective Find a more reliable, faster
  and cheaper method to manufacture fret boards for
  guitars.

23
Senior Design Case Study 1

• 12 Inch Radius
• .070 Depth Cut
• Multiple Scale Lengths

24
Senior Design Case Study 1

• Results
• Removed 2 process steps from the manufacturing
  process.
• Designed and built prototype of the newly
  designed machine.

25
Senior Design Case Study 2

• Background There are 4 check valves in the
  heart
• Approximately 150,000 valves implanted per year
• Aortic valve is the most often replaced valve
  (90)
• Project Objective Design a replacement aortic
  valve with less stress on the heart

Source http//en.wikipedia.org/wiki/Aortic_valve
26
Senior Design Case Study 2

• Types of check-valves

Ball-Cage
Bi-Leaflet
Contour
27
Senior Design Case Study 2

• Wall shear stress comparison for each valve type

Ball-Cage
Bi-Leaflet
Contour
28
Morbark Corp. Forestry Products Crane grapple
redesign
Senior Design Case Study 3
29
Senior Design Case Study 3

• Existing Design
• Cant easily rotate large logs to load onto truck
  bed
• Customer wants a dedicated loader

30
Proposed Solution Modifies a Caterpillar 330
Excavator
Senior Design Case Study 3

• Final Design Video

31
Senior Design Case Study 4

• Project Objective Design a better tool for
  doctors to use while inserting corrective
  measures.
• Background Spinal deformities are common
• Scoliosis, Hunchback, etc
• The need for deformity correction
  procedures exists, especially in
  extreme cases.

32
Senior Design Case Study 4

• The manufacturers design
• Medtronic Sofamor Danek Cable Tensioner and Cable
  Reduction Construct
• Very cumbersome for the doctor to use

33
Senior Design Case Study 4

• Redesign of tool using Mechanical Advantage
• Use gears to maintain linear motion and reduce
  stress on hand
• Final Design Video

34
Senior Design Case Study 5

• Precision Immobilization Technique (PIT)
• PIT is the use of physical force from the police
  vehicle to the target vehicle with the intention
  to stop the target car
• Problems with PIT
• Potential collision with bystanders
• Potential Roll over of the target car

• Design Project Objectives
• Prove the PIT maneuver does not cause rollover
  when performed under the proper conditions
• Prove the PIT maneuver is a controllable when
  executed properly
• Compare both experimental and theoretical results
• Design and build an apparatus to experimentally
  measure the force applied from the police car
  onto the target car
• Model the PIT in MSC Adams Software

35
Senior Design Case Study 5

• Designed apparatus to measure force during test
  simulation
• Load cell used to measure force on car
• Experiment Video

36
Senior Design Case Study 5

• PIT simulated in MSC Adams Car Simulation
  Software
• Theoretical Video

37
Senior Design Case Study 5

• General Conclusions
• Maneuver is safe, predictable and controllable
  under the conditions used
• Smooth flat road, wet and dry conditions
• Up to 120 mph with a low center-of-gravity
  vehicle
• High center-of-gravity vehicles are more prone to
  rollover

Force Theoretical and Experimental Results
Rollover Theoretical Results
38
Student and Alumni Profiles
39
Alumni Profile

• Shannon
• BSME from GT in December, 2007
• NAVSEA at the Norfolk Naval Shipyard in
  Portsmouth, VA

• Job Description
• Works on hydraulics and auxiliary machinery on
  aircraft carriers and amphibious assault ships.
• Machinery includes aircraft elevators, weapons
  elevators, catapults, arresting gear, conveyor
  belts, the anchor windlass, and steering
  mechanisms.

• Recent Job Assignments
• Spent 3 weeks on the USS Ronald Reagan installing
  and modifying their hydraulic systems
• Worked with a ship in Guam about se-curing their
  crane while it was in repair
• Worked with a ship had an elevator that came out
  of the tracks and the elevator was stuck a few
  stories up

40
Alumni Profile

• Orion BSME and BSPHYS
• Graduated December, 2007
• College Knowledge Provides Tutoring Services to
  K-12 Students

• Started his own company, College
  Knowledge, while at Georgia
  Tech
• Won GTs Ferst Leadership Entrepreneur
  Scholarship Award
• Activities at Georgia Tech

• Future Plans
• Starting his MSME at Stanford University in Fall
  2008
• Plans to study microscopic properties of
  renewable energy devices like fuel cells and
  solar cells

• Directed 3 movies for Campus Fest
• Astronomy Club Treasurer
• Worked as a tutor for OMED
• Participated in Oxford Study Abroad
• Did ME undergraduate research
• Worked for GTRI
• Involved in ASME
• Had summer internship in Canada designing an
  acoustics tool for a professor at UGA in the EAS
  department
• President of ORGT (Outdoor Recreation at GT)

41
Alumni Profile

• Advice to Freshman
• Work hard early on.
• Co-op.
• Dont be afraid to change majors.

• Joshua
• BSME in Summer 2005
• Bell Helicopter in Texas

• Job Description
• Airframe designer for Armed Reconnaissance
  Helicopter
• Designs the fuselage, tailboom, and landing gear.

• Use 3D CAD software (CATIA) to build 3D models of
  helicopter parts.
• Specializes in a variety of parts including
  carbon fiber, fiberglass, sheet metal, castings,
  forgings, and machined.

• Best Parts of Job
• Using creativity to solve engineering problems.
• I have a lot of control on helicopter
  functionality, maintainability, and aesthetics.
• It is very rewarding to see the parts I design
  being installed on the helicopter.

42
Alumni Profile

• Alison, BSME Summer 2008
• Currently at Grad School at Stanford

Undergraduate Research at GT I worked in a
tissue engineering research lab on working
towards building an artificial blood vessel that
could be implemented into the human body. The
first part was to understand the tissues that
already exist in the body (in particular,
collagen) and how the tissue grows and remodels
under stress change.

• Activities at Georgia Tech
• Woodruff School Student Advisory Board
  (President)
• Freshman Activities Board
• GT Swimming and Diving
• Search Committee to find new ME School Chair
• ME School Undergraduate Curriculum Committee.
• Won a school spirit scholarship in my junior
  year.
• I would like to stress that I got involved in my
  major more than the school (like school-wide
  spirit organizations) and that that worked out
  best for me.

• Future Goals
• MSME _at_ Stanford with a focus in
  Biomechanics.
• I want to invent a medical device and start a
  company.
• However, I plan to work with a medical device
  company first.

• Advice to Students
• You dont have to know what you want to do with
  the rest of your life when you're 17!
• Look into all your options and start out studying
  something as broad as you can (for example, I
  liked science and math and chose ME).
• If you want/need advice on a career choice, don't
  be afraid to ask someone to talk about what they
  do! You'll be surprised to see how nice people
  are if you are kind in return.

43
Our 2007-2008 Graduates Are At

• Business
• Ernst Young LLP, Bank of America, CarMax,
  Deloitte and Touche
• Automation and Robotics
• Innotec Automation, Rockwell Automation, Advanced
  Automation, Factory Automation
• Engineering Services Consulting
• Dean Oliver International, McKenney's Mechanical
  Contractors Engineers, Patterson Dewar,
  Babcock Wilcox, Jordan Skala Engineers Inc,
  O'Brien Gere, Turner Construction, Slingshot
  Product Development
• HVAC
• Trane, Underwood Air Systems, Carrier - Division
  of United Technologies
• Chemicals
• Air Products, Air Liquide, Eastman Chemical
  Company
• Environmental
• Enercon Services Inc

• Automotive
• Ford, General Motors, Toyota, BMW, Honda, Elan
  Motorsports Tech.
• Energy, Oil, Gas
• BP, BP Exploration (Alaska), Citgo, Schlumberger,
  Southern Company, Georgia Power, General
  Electric, Shell, Suez Energy North America
• Commercial Consumer Products
• Cooper Industries, General Mills, Clorox Company,
  International Paper, Procter Gamble, Snap-On,
  National Instruments, Patterson Pumps
• Construction Equipment
• John Deere, Caterpillar, Kubota Tractor
  Corporation
• Aerospace Defense
• NASA, Bell Helicopter, Lockheed Martin,
  Gulfstream Aerospace Corp, Rolls Royce, Northrop
  Grumman, Harris Corp, NAVSEA/Norfolk Naval
  Shipyard, Advanced Armament Corp, NAVAIR
• Military
• Air Force, Navy, Marines, Army

44
Opportunities in Mechanical Engineering
45
Additional Opportunities

• International Experiences
• Exchange Programs
• Study Abroad Programs
• International Program (degree designator)
• Professional Work Experiences
• Co-op Program (degree designator)
• Professional Internship Program
• Educational Experiences
• BS/MS Program
• Undergraduate Research
• Minors and Certificates

46
Opportunities Abroad

• Summer Study Abroad at Georgia Tech Lorraine in
  Metz, France
• Summer Study Abroad in Shanghai, China

47
What are some major organizations I can be
involved in?
48
Student OrganizationsProfessional

• ME Organizations
• American Society of Mechanical Engineers
• Pi Tau Sigma (ME Honor Society)
• Student Advisory Committee
• Acoustical Society of America
• Other Popular Organizations
• Mars Society at Georgia Tech
• Echo Car Challenge
• Engineering Students Without Borders
• Society of Women Engineers
• National Society of Black Engineers
• National Society of Hispanic Engineers
• Entrepreneur's Society
• Students Organizing for Sustainability
• Undergraduate Consulting Club
• Many more.

49
Student OrganizationsCompetitive

• GT Motorsports
• GT Off Road (Mini-Baja)
• Wreck Racing
• Robo-Jackets
• Solar Jackets

50
Questions?
