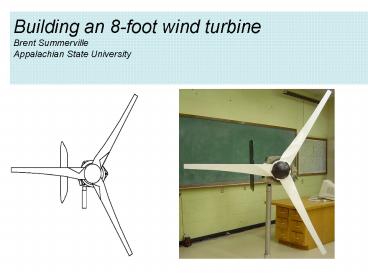

Building an 8foot wind turbine Brent Summerville Appalachian State University

1
Building an 8-foot wind turbineBrent
SummervilleAppalachian State University
2
Research In search of Plans

• Backhome Magazine article www.backhomemagazine.com

• www.otherpower.com
• derived from Hugh Piggotts axial flux plans or
  How to build a wind turbine
• Go with the source and follow plans closely

3
Research Hugh Piggott

• Workshops in Washington, Scoraig, CAT, Edinburgh,
  Ghana, France, Costa Rica, Liverpool..

4
Resources Woods Lab

• Sat in on Intro to Wood Technology
• Trained on techniques, tools, machinery and
  safety
• PracticeSanding block, cedar tool box
• Last semester for Bill Hanner

• Draw knife
• Hand plane
• Spoke shave
• Lathe
• Jointer
• Sanders
• Gluing panels
• Planer
• Bandsaw
• Drill press
• Table saw

5
Resources Metals Lab

• Sat in on Intro class
• Trained on techniques, tools, and machinery
• Copper nameplate, dinner bell, apple butter stand
• Nice working with Leo and Dave

• Welding
• Mill
• Lathe
• Plasma torch
• Blacksmithing
• Grinding
• Tapping
• Sheet metal fab
• Drill press
• Iron worker

6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
Bladecarving

• Layout

• Basswood with termites

• Thickness, width, length

• Carve with draw knife and spoke shave

• Check, carve, sand

• Sand, sand, sand

11
Jointer, planer, table saw, and belt sander to
form 1-1/2x6x52 blanks
Finished length is 48. Keep long until finished
carving. Makes for a nice blade tip.
12
Start with a precise layout
13
Simple tools
14
Carve the taper with the drawknifeClamp and
sand to keep the blades matched
15
Carve the twist and check the drop
16
The drawknife can remove a lot of material
quickly, and its a good workout
Carve the thickness
17
The spoke shave is pleasant to work with
18
Carve the airfoil, keep watch on the 30 line
19
Bladecarving Suck not Push
Source http//www.graphics.cornell.edu/academic/a
rchartpcg/spring01/students/rr63/ROA/windworks01.j
pg
20
Cut to length, cut the 120o angles, ready for the
rotor hub
21
Layout holes for wood screws and studs
22
Drill the through holes for the ½ studs square
to the hub
23
Sanding the hub on the lathe
24
Assemble the rotor, keep the tip-to-tip distance
within ½
25
After painting and re-assembly, tip-to-tip was
84, 84-1/8, 84-1/4
26
Decided to skip the wedges
27
Axial Flux Alternator Stator

• Solder a 3-phase star

• Wind coils

• Build a mold and layout coils

• Cast in polyester resin

• Drill and mount

• Cleanup casting

28
Keep em tight so they will fit into the mold
29
Clamp coils in position for soldering
30
Strip with knife, solder, shrink tubing
31
Build a mold
32
Fiberglass cloth for strength
Mold release
33
Place the coils, position the three output wires
in conduit, pour in polyester resin and cloth,
clamp and cure
34
Free the stator and clean it up
35
Axial Flux Alternator Rotors

• Buy laser-cut plates, machine the holes

• Careful with those Neo magnets!

• Position magnets with a jig

• Cast in polyester resin

• Clean up and be careful

• No screws needed

36
Flat, not flat
My attempt at a rotor plate is on the right.
Laser cut plate on the left.
37
Superglue magnets to plate to avoid movement
during casting
An index hole in every plate keeps things aligned
38
Build a mold
39
Do all three castings together and do it outside
(strong smell)
40
Cast in Polyester resin with fiberglass
clothChecking the alternating polarity
41
Stator and rotors, minimal air gap
42
Axial Flux Alternator Magic
Rectified to DC (one phase shown)
An electrically charged particle moving in a
magnetic field will experience a force (known as
the Lorentz force) pushing it in a direction
perpendicular to the magnetic field and the
direction of motion Source http//www.wondermag
net.com/magfaq.htmlq18
Most of the electric power in the world is 3
phase.  The concept was originally conceived by
Nikola Tesla and was proven that 3 phase was far
superior to single phase power.  3 phase power is
typically 150 more efficient than single phase
in the same power range.  In a single phase unit
the power falls to zero three times during each
cycle, in 3 phase it never drops to zero.  The
power delivered to the load is the same at any
instant.   Also, in 3 phase the conductors need
only be 75 the size of conductors for single
phase for the same power output. source
www.windstuffnow.com/ main/3_phase_basics.htm
43
Fabricate the Alternator Mount

• Salvage steel

• Visit a junkyard

Prep steel, fabricate

• Make strong welds

• Clean, prime, paint

• Machine holes

44
Plasma torchupping the embodied energy
45
The angle grinder cleans up ugly weldsThe
type disc with flexible sanding flaps works
nicely for finishing and smoothing
46
Fabricate the Tail

• Cool ideas

• Vintage Jacobs whale tail

My version
47
Assembly

• Too much time in Kerr Scott
• Moved the operation home for final assembly
• Wife and dogs were happy
• Stand borrowed from Whisper 200 demo

48
Assembly Tower adapter
49
Assembly Alternator Bracket
50
Assembly Hub
51
Assembly Back Rotor
52
Assembly Stator
53
Assembly Front Rotor and J-Box
54
Assembly Tail
55
Assembly Ready for Blades
56
Costs

• Minimum for a new 1kW turbine is about 1700
• My cost 836

57
Conclusion

• Well done plans
• Slight customization
• No wedges
• Wiring details
• Nose cone
• Lots of work
• Use of magic
• Lift
• Electricity
• Economical
• To do next controller and tower

58
Questions?
