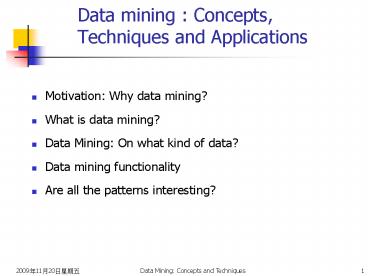

Data mining : Concepts, Techniques and Applications

1
Data mining Concepts, Techniques and
Applications

• Motivation Why data mining?
• What is data mining?
• Data Mining On what kind of data?
• Data mining functionality
• Are all the patterns interesting?

2
Motivation Necessity is the Mother of
Invention

• Data explosion problem
• Automated data collection tools and mature
  database technology lead to tremendous amounts of
  data stored in databases, data warehouses and
  other information repositories
• Solution Data warehousing and data mining
• Data warehousing and on-line analytical
  processing
• Extraction of interesting knowledge (rules,
  regularities, patterns, constraints) from data
  in large databases

3
Why Data Mining? Potential Applications

• Database analysis and decision support
• Market analysis and management
• Risk analysis and management
• Prediction
• Web analysis
• Intelligent query answering

4
Data Mining Functionalities (1)

• Association
• Multi-dimensional vs. single-dimensional
  association
• age(X, 20..29) income(X, 20..29K) à buys(X,
  PC) support 2, confidence 60
• contains(T, computer) à contains(x, software)
  1, 75

5
Data Mining Functionalities (2)

• Classification and Prediction
• Finding models (functions) that describe and
  distinguish classes or concepts for future
  prediction
• Presentation decision-tree, classification rule,
  neural network
• Prediction Predict some unknown or missing
  numerical values
• Cluster analysis
• Class label is unknown Group data to form new
  classes
• Clustering based on the principle maximizing the
  intra-class similarity and minimizing the
  interclass similarity

6
Are All the Discovered Patterns Interesting?

• A data mining system/query may generate thousands
  of patterns, not all of them are interesting.
• Interestingness measures A pattern is
  interesting if it is easily understood by humans,
  potentially useful, novel, or validates some
  hypothesis that a user seeks to confirm
• support, confidence

7
Summary

• Data mining discovering interesting patterns
  from large amounts of data
• A natural evolution of database technology, in
  great demand, with wide applications
• A KDD process includes data cleaning, data
  integration, data selection, transformation, data
  mining, pattern evaluation, and knowledge
  presentation
• Mining can be performed in a variety of
  information repositories
• Data mining functionalities association,
  classification, clustering, etc.

8
What is Cluster Analysis?

• Cluster a collection of data objects
• Similar to one another within the same cluster
• Dissimilar to the objects in other clusters
• Cluster analysis
• Finding similarities between data according to
  the characteristics found in the data and
  grouping similar data objects into clusters
• Unsupervised learning no predefined classes
• Typical applications
• As a stand-alone tool to get insight into data
  distribution
• As a preprocessing step for other algorithms

9
Quality What Is Good Clustering?

• A good clustering method will produce high
  quality clusters with
• high intra-class similarity
• low inter-class similarity

10
Measure the Quality of Clustering

• Dissimilarity/Similarity metric Similarity is
  expressed in terms of a distance function,
  typically metric d(i, j)
• There is a separate quality function that
  measures the goodness of a cluster.
• The definitions of distance functions are usually
  very different for interval-scaled, boolean,
  categorical, ordinal ratio, and vector variables.
• Weights should be associated with different
  variables based on applications and data
  semantics.
• It is hard to define similar enough or good
  enough
• the answer is typically highly subjective.

11
Type of data in clustering analysis

• Interval-scaled variables
• Binary variables
• Categorical, ordinal, and ratio variables
• Variables of mixed types

12
Interval-valued variables

• Standardize data
• Calculate the mean absolute deviation
• where
• Calculate the standardized measurement (z-score)
• Using mean absolute deviation is more robust than
  using standard deviation

13
Similarity and Dissimilarity Between Objects

• Distances are normally used to measure the
  similarity or dissimilarity between two data
  objects
• Some popular ones include Minkowski distance
• where i (xi1, xi2, , xip) and j (xj1, xj2,
  , xjp) are two p-dimensional data objects, and q
  is a positive integer
• If q 1, d is Manhattan distance

14
Similarity and Dissimilarity Between Objects
(Cont.)

• If q 2, d is Euclidean distance
• Properties
• d(i,j) ? 0
• d(i,i) 0
• d(i,j) d(j,i)
• d(i,j) ? d(i,k) d(k,j)
• Also, one can use weighted distance, parametric
  Pearson product moment correlation, or other
  disimilarity measures

15
Binary Variables

• A contingency table for binary data
• Distance measure for symmetric binary variables
• Distance measure for asymmetric binary variables

• Jaccard coefficient (similarity measure for
  asymmetric binary variables)

16
Variables of Mixed Types

• A database may contain all the six types of
  variables
• symmetric binary, asymmetric binary, nominal,
  ordinal, interval and ratio
• One may use a weighted formula to combine their
  effects
• f is binary or nominal
• dij(f) 0 if xif xjf , or dij(f) 1
  otherwise
• f is interval-based use the normalized distance
• f is ordinal or ratio-scaled
• compute ranks rif and
• and treat zif as interval-scaled

17
Vector Objects

• Vector objects keywords in documents, gene
  features in micro-arrays, etc.
• Broad applications information retrieval,
  biologic taxonomy, etc.
• Cosine measure
• A variant Tanimoto coefficient

18
Major Clustering Approaches (I)

• Partitioning approach
• Construct various partitions and then evaluate
  them by some criterion, e.g., minimizing the sum
  of square errors
• Typical methods k-means, k-medoids, CLARANS
• Hierarchical approach
• Create a hierarchical decomposition of the set of
  data (or objects) using some criterion
• Typical methods Diana, Agnes, BIRCH, ROCK,
  CAMELEON
• Density-based approach
• Based on connectivity and density functions
• Typical methods DBSACN, OPTICS, DenClue

19
Major Clustering Approaches (II)

• Grid-based approach
• based on a multiple-level granularity structure
• Typical methods STING, WaveCluster, CLIQUE
• Model-based
• A model is hypothesized for each of the clusters
  and tries to find the best fit of that model to
  each other
• Typical methods EM, SOM, COBWEB
• Frequent pattern-based
• Based on the analysis of frequent patterns
• Typical methods pCluster
• User-guided or constraint-based
• Clustering by considering user-specified or
  application-specific constraints
• Typical methods COD (obstacles), constrained
  clustering

20
Typical Alternatives to Calculate the Distance
between Clusters

• Single link smallest distance between an
  element in one cluster and an element in the
  other, i.e., dis(Ki, Kj) min(tip, tjq)
• Complete link largest distance between an
  element in one cluster and an element in the
  other, i.e., dis(Ki, Kj) max(tip, tjq)
• Average avg distance between an element in one
  cluster and an element in the other, i.e.,
  dis(Ki, Kj) avg(tip, tjq)
• Centroid distance between the centroids of two
  clusters, i.e., dis(Ki, Kj) dis(Ci, Cj)

21
Centroid, Radius and Diameter of a Cluster (for
numerical data sets)

• Centroid the middle of a cluster
• Radius square root of average distance from any
  point of the cluster to its centroid
• Diameter square root of average mean squared
  distance between all pairs of points in the
  cluster

22
Hierarchical Clustering

• Use distance matrix as clustering criteria. This
  method does not require the number of clusters k
  as an input, but needs a termination condition

23
Dendrogram Shows How the Clusters are Merged
Decompose data objects into a several levels of
nested partitioning (tree of clusters), called a
dendrogram. A clustering of the data objects is
obtained by cutting the dendrogram at the desired
level, then each connected component forms a
cluster.
24
Recent Hierarchical Clustering Methods

• Major weakness of agglomerative clustering
  methods
• do not scale well time complexity of at least
  O(n2), where n is the number of total objects
• can never undo what was done previously
• Integration of hierarchical with distance-based
  clustering
• BIRCH (1996) uses CF-tree and incrementally
  adjusts the quality of sub-clusters
• ROCK (1999) clustering categorical data by
  neighbor and link analysis
• CHAMELEON (1999) hierarchical clustering using
  dynamic modeling

25
BIRCH (1996)

• Birch Balanced Iterative Reducing and Clustering
  using Hierarchies (Zhang, Ramakrishnan Livny,
  SIGMOD96)
• Incrementally construct a CF (Clustering Feature)
  tree, a hierarchical data structure for
  multiphase clustering
• Phase 1 scan DB to build an initial in-memory CF
  tree (a multi-level compression of the data that
  tries to preserve the inherent clustering
  structure of the data)
• Phase 2 use an arbitrary clustering algorithm to
  cluster the leaf nodes of the CF-tree
• Scales linearly finds a good clustering with a
  single scan and improves the quality with a few
  additional scans
• Weakness handles only numeric data, and
  sensitive to the order of the data record.

26
Clustering Feature Vector in BIRCH
CF (5, (16,30),(54,190))
(3,4) (2,6) (4,5) (4,7) (3,8)
27
CF-Tree in BIRCH

• Clustering feature
• summary of the statistics for a given subcluster
  the 0-th, 1st and 2nd moments of the subcluster
  from the statistical point of view.
• registers crucial measurements for computing
  cluster and utilizes storage efficiently
• A CF tree is a height-balanced tree that stores
  the clustering features for a hierarchical
  clustering
• A nonleaf node in a tree has descendants or
  children
• The nonleaf nodes store sums of the CFs of their
  children
• A CF tree has two parameters
• Branching factor specify the maximum number of
  children.
• threshold max diameter of sub-clusters stored at
  the leaf nodes

28
The CF Tree Structure
Root
B 7 L 6
Non-leaf node
CF1
CF3
CF2
CF5
child1
child3
child2
child5
Leaf node
Leaf node
CF1
CF2
CF6
prev
next
CF1
CF2
CF4
prev
next
