Title: Citrix XenServer


1

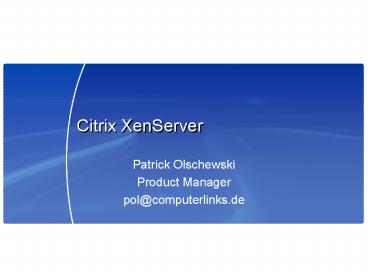

Citrix XenServer
  • Patrick Olschewski
  • Product Manager
  • pol_at_computerlinks.de

2
Our Vision for Business
3
Businesses Run on Applications
4
Users and Apps are Moving Further Apart
5
Traditional Application Deployment
More Bandwidth
Fastest Network
Lock Down Standardize
Best andMost Servers
Best PCs
  • Managed Desktops Costly
  • Poor User Experience
  • Apps Still Slow
  • Data Still Vulnerable

6
Dynamic Coupling of Users and Apps
CitrixApplication DeliveryInfrastructure
Best Performance. Highest Security. Lowest Total
Cost.
7
Application Delivery Infrastructure
8
Was macht Virtualisierung
Win
Win
Linux
Xen Hypervisor
Xen
Xen
IBM
FSC
HP
Dell
9
Neue Möglichkeiten
  • Ein (V)Server wird zu einer Datei
  • schnelle Bereitstellung neuer Systeme
  • einfaches Backup
  • schnelle Restore Möglichkeit
  • verschieben auf andere Hardware
  • erweiten der Serverfarm in Sekunden
  • Ein (HW) Server wird zur Ressource
  • Erweiterung von Speicher ohne Ausfallzeit
  • hohe Auslastung bestehender Ressource
  • Mehrere Server bieten Ausfallsicherheit

10
Virtualization Benefits for IT
  • Reduce Cost
  • Lower server, SAN, network and infrastructure
    costs
  • Reduce management overhead
  • Lower power, facilities and deployment costs
  • Increase Server Utilization
  • Increase average server utilization
  • Gets new applications up and running faster in
    the data center
  • Move quickly from one virtual server machine to
    another
  • Improve I.T. Agility
  • Ensure Business Continuity
  • Boost developer Productivity
  • Reduce service deployment times

11
Why Do Customers Choose XenServer?
  • Ease of Use
  • Best price/performance
  • Efficient
  • OS independence
  • Strong Microsoft relationship

12
The Opportunity is huge
Source IDC Worldwide Server Forecast 2007
2011 May, 2007
13
Citrix XenServer Family
Prices for 2 CPU socket servers
14
XenSource v4 Product Packaging
15
  • Technischer Einblick

16
The Power of Xen
  • Paravirtualization is the key to high
    performance
  • Xen is designed to utilize the virtualization
    capabilities of Intel VT and AMD-V enabled
    processors
  • Xen Benefits from open source community
    innovation
  • Rapid rate of innovation
  • Leverages other open source projects

Xen-based virtualization delivers the highest
performance for next generation silicon based
virtualization
17
Xen Engine of Innovation
  • The Open standard
  • Always supports the latest hardware assisted
    virtualization
  • Work closely with OS vendors
  • Leverage Security community

18
Technology Partners
19
Xen and XenServer
Xen
20
Platform Architecture
  • CPU and Memory access through Xen Engine
  • Network and Storage I/O through Domain 0
  • Standard Linux device drivers
  • Down to the hardware
  • Xen is a thin layer on top of the hardware
  • Only 50k lines of code (0.25MB in size)

21
Architectural Comparison
Emulation
Para-virt
Hardware-virt
HALT
HALT
SAFE HALT
HALT HYPERCALL
VT/AMD-V
Hardware
Hardware
22
XenServer v4 Whats Different?
Dynamic Virtualization Services APIs
Multi-server resource pooling, XenMotion live
relocation
An open platform for delivery of powerful
value-added solutions
Enhanced XenAPI, CLI
XenCenterManagement Console
Enhanced CLI
Enhanced CLI
Dynamic Virtualization Services
Dynamic Virtualization Services
Pluggable Storage API
Pluggable Storage API
23
XenCenter Windows Console
  • Manage VMs from anywhere
  • Ten Minutes to Xen
  • Compatible with Windows Server Virtualization

24
Management Architecture Comparison
The Other Guys
XenServer
  • Traditional Management Architecture
  • Single Backend Management Server
  • Single Point of failure
  • Next Generation Management Architecture
  • Clustered Management Layer
  • No Single Point of failure

25
Near Bare Metal Performance
  • Insignificant overhead
  • Linux 1/2-4 overhead vs. native
  • Windows 2-6 overhead vs. native
  • Large Workload Support
  • Up to 8 Virtual CPUs per Guest
  • Large Memory Support
  • 128 GB Physical Memory
  • 32 GB Per VM
  • Double other virtualization solutions

26
Resource Pools
Resource Pool
  • Join multiple physical servers into one logical
    pool
  • DeliversVM agility with Automatic Placement and
    Live Migration
  • Shared configurations
  • Shared Storage
  • Resiliency to system failures

27
XenMotionLive Relocation
Remote VM Guest Storage
28
XenServer Presentation Server
  • Best way to Virtualize Presentation Server
  • Delivers data center flexibility and
    consolidation
  • Perfect for test development environments

29
Independent Validation
  • XenMotion
  • Seamlessly move or re-locate virtual machines
    without downtime
  • ResourcePools
  • Efficient configuration, allocation, and
    authentication of your virtualization resources
  • 64-bit architecture
  • Scalability support for enterprise application
    workloads
  • XenCenter
  • Easily manage your virtualization environment
    from a single, unified interface, including
    servers, storage and networking
  • XenAPI
  • Integrate with existing investments and
    infrastructure

30
XenServer Roadmap and futures
31
XenServer Major 2008 Milestones
Miami XS 4.1 Stability, Scalability, Ease of
use, Vista 32-bit, RHEL 64-bit, NetApp integration
Orlando XS 4.2 HA enablement, Win2K8, Storage
partner enable
Tokyo XS 4.3 DR Enablement, Storage services,
AD int, P2V
Kissimmee High Availability Option pack
Miami beta
32
Miami Key Feature Set
  • Scalability and Performance
  • Increased number of simultaneously active VMs
  • Enhanced NPT support resulting in better
    performance on AMD-V equipped systems.
  • VLAN support in Standard Edition
  • Usability
  • XenServer tools icon in system tray of Windows
    guests
  • Extensive XenCenter usability and performance
    enhancements
  • User-selectable automatic switching to RDP for
    Windows console access Easily enable high
    performance console access
  • RDP sound configuration
  • Configurable VNC keystrokes
  • Cut-and-paste to-and-from Windows guests
  • Undocked console menu for VM operations Easy
    access to VM lifecycle management operations in
    undocked console windows
  • Connection configuration (proxies and timeouts)
    Configurable access to hosts behind firewalls
  • Host system update management Easily install
    host system patches
  • Maintenance mode Remove a host from active
    status in a resource pool while maintaining
    management control
  • Pool-wide server status report collation (
  • Warnings when VM performance is threatened
  • Improveddisplay when XenServer Tools are not
    installed
  • Improved drawing performance and quality

33
Miami Key Feature Set continued
  • Storage
  • Initial shared fibre channel storage support (via
    CLI only)
  • Enhanced support for NetApp filers, including
    snapshot and cloning
  • Windows guest Hot disk remove
  • iSCSI storage improvements
  • iSCSI IQN scanning
  • Enhanced CIFS and NFS Storage Repository
    configuration
  • Storage repository repair
  • Configuration and display of default Storage
    Repository
  • Warnings when iSCSI host IQNs are duplicated
    within a resource pool
  • Host System
  • Rolling pool upgrade from v4 to v4.1 with no
    service outage
  • High performance NIC driver updates (e1000, BNX2,
    TG3)
  • Improved hardware support
  • Guest
  • 32bit RHEL and Centos 5 install from CD
  • RHEL5 and Centos 5 x64 guest support
  • Windows Vista x86 guest support
  • SDK

34
Xen Storage Services (XSS)
  • Common Storage infrastructure
  • Works with what you have today
  • Seamless interoperability across Xen and MSFT
    hypervisors
  • Leverage, Enable, certify storage partners

ISV Backup Client
ISV Backup Client
Xen or Hyper-V Hypervisor
35
Next Steps
10 MINS
  • Download XenServer
  • 10 minutes to Xen
  • Download XenDesktop tech preview
  • Start testing Desktop Virtualization
  • Download Citrix Workflow Studio tech preview
  • Start to automate your IT infrastructure

www.citrix.com
36
Bechtel
One of the worlds largest and most successful
global infrastructure construction firm chooses
XenEnterprise
  • 400 servers in production
  • 30 of physical servers are virtualized
  • Motivation for virtualization is increasing
    server utilization and rapid provision and
    decommissioning of servers.
  • Began looking into XenServer to achieve higher
    levels of performance
  • Replace all other virtualization products with
    XenServer Enterprise Edition before the end of
    2007

36
37
KBC Clearing
Leading Belgium/Netherlands based European
financial services institution
Leverages virtualization for a critical data
center relocation
XenSource XenEnterprise outperforms VMware ESX.
When we did a performance test on both Linux and
Windows, XenSource came out best. Rob de Wit,
KBC Clearing
  • Evaluated VMware and Citrix XenServer
  • Goal was to consolidate servers and increase
    utilization
  • 40 physical servers consolidated to 4 physical
    servers
  • Performance, ease of use, affordability and
    industry support were key criteria in selecting
    XenServer.


37
38
Rollins Corp
Diversified company Expands virtualization with
XenEnterprise
  • Windows Test and Dev requirements for rapid
    provisioning of servers
  • Existing user of VMware Server
  • Initially purchased 4 XenServer licenses
    currently running 12 VMs across his 4 dual
    opteron servers
  • Added 21 more server licenses in April

Decision points for XenSource were price,
performance, IBM server proven status and upgrade
path for higher end product, XenEnterprise.
Robert Wick, IT administrator
38
39
Building on Server Virtualization to deliver the
Dynamic Data Center
Provisioning Server
XenServer
40
How Provisioning Server for Datacenters 4.5
Changes the Model
Server streaming Provisioning Server software
Networkstorage
Provisioning Server Builder images OS
Workload to Network Storage.
41
How Provisioning Server for Datacenters 4.5
Changes the Model
Silo One
Server streaming Provisioning Server software
Silo Two
Networkstorage
Silo Three
Servers are configured for network boot. Disks
optionally removed.
42
How Provisioning Server for Datacenters 4.5
Changes the Model
Silo One
Server streaming Provisioning Server software
Silo Two
Networkstorage
Silo Three
Servers are rebooted. OS Workload are streamed
from Network Storage.
43
How Provisioning Server for Datacenters 4.5
Changes the Model
Silo One
Provisioning Server software
Silo Two
Networkstorage
Silo Three
OS Workload are streamed from Network Storage.
44
Provisioning Server Complements Server
Virtualization
Virtualized Server
Provisioning Server (streaming service)
Network Storage
Physical Server
45
End-to-end Virtualization Citrix XenDesktop


Desktop Delivery Controller
VirtualizationInfrastructure
VirtualDesktopProvisioning
46
What are Virtual Desktops?
Desktop Appliance
Users
47
Citrix XenDesktopVirtualized desktop delivery
User Experience
Desktop Appliance with Citrix App Receiver
About PowerShow.com
