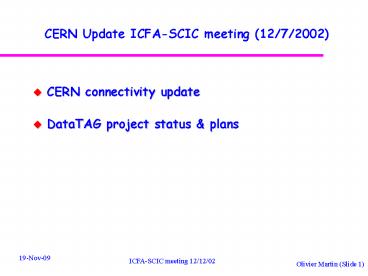

CERN Update ICFA-SCIC meeting (12/7/2002)

• CERN connectivity update
• DataTAG project status plans

2
Main Internet connections at CERN
Mission Oriented World Health Org.
IN2P3
Swiss National Research Network
General purpose AR and commodity Internet
connections (Europe/USA/World)
WHO
2.5Gbps
SWITCH
45Mbps
Europe
155Mbps/1G
GEANT (1.25/2.5Gbps)
1Gbps
USA
USLIC 622Mbps
CERN
CIXP
1Gbps
2.5/10Gbps
Commercial
DataTAG
2.5Gbps
NetherLight
ATRIUM/VTHD
Network Research
3
CERNs Distributed Internet Exchange Point
(CIXP)

• Telecom Operators dark fibre providers
• Cablecom, COLT, France Telecom,
  FibreLac/Intelcom, Global Crossing, LDCom,
  Deutsche Telekom/T-Systems, MCI/Worldcom, SIG,
  Sunrise/diAx, Swisscom (Switzerland), Swisscom
  (France), SWITCH (), Thermelec.
• Internet Service Providers include
• Infonet, ATT Global Network Services (formerly
  IBM), Cablecom, Callahan, Colt, DFI, Deckpoint,
  Deutsche Telekom, Easynet, France
  Telecom/OpenTransit, Global-One, InterNeXt,
  IS-Productions, Nexlink, PSI Networks
  (IProlink), MCI/Worldcom, Petrel, Sita/Equant(),
  Sunrise, Swisscom IP-Plus, SWITCH, GEANT,
  VTX/Smartphone, UUnet.

isp
isp
Telecom operators
c i x p
isp
isp
isp
isp
isp
isp
CERN firewall
Telecom operators
Cern Internal Network
4
DataTAG Project update
5
Project focus

• Grid related network research (WP2, WP3)
• High Performance Transport protocols
• Inter-domain QoS
• Advance bandwidth reservation
• Interoperability between European and US Grids
  (WP4)
• GLUE (Grid Laboratory Universal Environment)

6
DataTAG project
NewYork
Abilene
32.5G
STAR-LIGHT
ESNET
CERN
2.5G
10G
MREN
STAR-TAP
Major 2.5/10 Gbps circuits between Europe USA
7
Testbed deployment status

• Very unique multi-vendor testbed with layer2 and
  layer 3 capabilities,
• in effect, a distributed transatlantic Internet
  Exchange Point.
• Very interesting results already achieved
• Triumf-CERN 2GigE lightpath demo (disk to disk)
• Terabyte file transfer (Monte Carlo simulated
  events)
• Single stream TCP/IP (with S.Ravot/Caltech
  patches)
• 8 Terabytes in 24 hours (memory to memory)
• IST2002 Demos
• SC2002 Demos Records

8
Phase II (October-December 2002)Generic
configuration
Servers
CERN
StarLight
Servers
GigE switch
GigE switch
2.5Gbps
C7606
C7606
9
Phase III (January 2003)
VTHD
Routers
Servers
GigE switch
A1670 Multiplexer
GigE switch
A7770
C7606
CERN
nGigE
J-M10
C-ONS15454
Amsterdam
GEANT
STARLIGHT
Servers
Ditto
Abilene
ESNet
Canarie
10
Phase IV (September 2003, tentative)
VTHD
Routers
Servers
GigE switch
Multi-Service Multiplexer
GigE switch
A7770
10Gbps
nGigE)
C7606
n2.5Gbps)
CERN
J-M10
C7609
C-ONS15454
Amsterdam
GEANT
STARLIGHT
Servers
Ditto
Abilene
ESNet
Canarie
11
DataTAG testbed
12
Alcatel installation Photos
13
Alcatel A7770 router(fully redundant, 32 slots)
