Type 1 Diabetes Mellitus

1

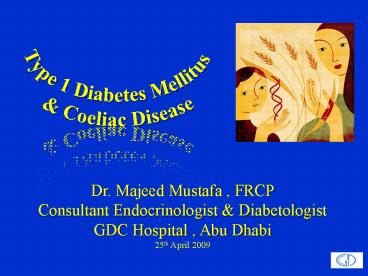

Type 1 Diabetes Mellitus Coeliac Disease
Dr. Majeed Mustafa , FRCP Consultant
Endocrinologist Diabetologist GDC Hospital ,
Abu Dhabi 25th April 2009
2
Type 1 Diabetes

• 5 of total diabetes population
• Mostly children , adolescents and young adults
• Auto immunity Present in 90 of patients
• Insulin Ab , ICA , GAD 65
• Unknown 10 of patients.

3
Incidence of Type 1 Diabetes
Number of cases per 100000/year
4
Auto Immune Destruction of B Cells
Normal Islets of Langerhan
Insulitis
5
Natural History of Type 1 Diabetes
Genetic predisposition
Antibodies produced against ß cells GAD 65
Loss of 1st phase insulin secretion
Environmental factors
Cell mass ß
Destruction of ß cells
Prediabetes
Diabetes
Time
Clinical presentation
J. Skyler
6

• Causes of Type 1 DiabetesEnvironment Factors

Causes of Type 1 Diabetes Genetic Factors
7
Coeliac Disease

• Celiac disease is an immune-mediated
• enteropathy affecting mainly the proximal
• small intestine caused by a permanent
• sensitivity to gluten in genetically
• susceptible individual
• Commonest autoimmune disorder worldwide

8
The oldCoeliac Disease Epidemiology

• A rare disorder typical of infants and young
• children
• Wide range incidence
• 1/400 Ireland
• 1/10000 Denmark
• A disease of European
• origin

9
The Changing Coeliac Epidemiology

• The availability of sensitive serological markers
  made it
• possible to discover Coeliac Disease even when
  the
• clinical suspicion was low
• AGA Anti EMA
  Anti TTG
• 1980 1990
  2000

Classical Children , MAS
Current Concept Children Adults Asymptomatic
10
Effect of Serological Screening on CD Prevalence
Country Prevalence
on Prevalence on
clinical diagnosis
screening data
11
Spectrum of Clinical Manifestations of Coeliac
Disease
12
Coeliac Disease Genetic Predisposition

• Susceptibility to celiac disease is determined to
  a significant extent by genetic factors
• Positive family history
• First-degree relatives concordance 1015 1
• Monozygotic twins concordance 80 2
• 1.MacDonald WC, et al ,1965 N Engl J Med
  272448456
• 2.Hervonen K et al , J Invest Dermatol. 2000
  Dec115(6)990-3.

13
Coeliac Disease Genetic Predisposition

• This susceptibility has been localized to
• the HLA region of chromosome 6.
• 90 of CD patients share the HLA DR3-HLA DQ2 .
  1
• 10 express the DR4-DQ8 haplotype. 2
• 1.Sollid LM, et al 1989 J Exp Med 169345350
• 2. Michalski JP, et al. Tissue Antigens 4712713

14
Disease Association of Coeliac Disease

• Type 1 Diabetes Mellitus (2-8)
• Thyroid disease (5)
• Primary biliary cirrhosis (3)
• Sjögren's syndrome (3)
• IgA deficiency (2)
• Pernicious anaemia

15
Disease Association of Coeliac Disease

• Inflammatory bowel disease
• Sarcoidosis
• Myasthenia gravis
• Neurological complications cerebellar atrophy,
  peripheral neuropathy, epilepsy
• Dermatitis herpetiformis

16
Disease Association of Coeliac Disease

• Down's syndrome
• Enteropathy-associated T-cell lymphoma
• Small bowel carcinoma
• Squamous carcinoma of oesophagus
• Ulcerative jejunitis
• Pancreatic insufficiency
• Splenic atrophy

17
Genetic Predisposition Type 1 Diabetes CD

• Sharing of a common genetic factor in the HLA
  region 1,2
• Diabetic susceptibility, is associated with HLA
  DR3-DQ2 and DR4-DQ8 similar to CD .
• 1.Buzetti R, Quattrocchi CC, Nistico L 1998 .
  Diabetes Metab Rev 14111128
• 2.Atkinson MA, Eisenbarth GS 2001 Lancet
  358221229

18
Genetic Predisposition

• The prevalence of HLA DQ2 is 2030 in the
• general population , and only a minority of
  these
• will ever develop CD. 1
• The involvement of additional, probably non- HLA
  linked genes in the pathogenesis of CD
• 1.Polvi A, et al ,1996. Eur J Immunogen 23221234

19
HLA in CD and DM

• HLA typing should not be used in the
• diagnosis of CD in patients with type 1 DM
• because of the similarities of HLA types in
• patients with type 1 DM and those with CD.
• Doolan A, Diabetes Care 28806-809, 2005

20
(No Transcript)
21
(No Transcript)
22
CD and Type 2 Diabetes

• In contrast to type 1 diabetes, there is no
  evidence that the risk of coeliac disease
  in type 2 DM is increased compared with the
  general population.
• Sjöberg K, et al 1998 . J Intern Med 243133140
• Page SR, et al 1994 . Q J Med 87631637

23
Which Came First ??
24
Which Came First ??

• Type 1 diabetes almost always precedes
• the diagnosis of CD which is usually
• diagnosed during the first year following
• DM diagnosis by serological screening
• Saukkonen T, et al 1996 . Diabet Med
  13464470

25
Which Came First ??

• Type 1 diabetes patients who are initially
• CD antibody negative could undergone
• seroconversion and contracted coeliac
• disease during follow-up
• Mäki M, et al 1984. J Pediatr 105901905
  .Catassi C, et al 1991 . Eur J Pediatr
  150832834
• Cacciari E 1997, et al. Arch Dis Child 77465
  .Lorini R, et al 1996 . J Diabetes Complications
• 10154159

26
Coeliac Disease Triples Risk of Type 1 Diabetes

• Swedish National inpatient register (
  1964-2003) identify 9243 individuals with CD
  diagnosed before age 20 years.
• These patients were matched to five reference
  subjects without CD by age, gender, calendar
  year, and area of residence (n 45,680).
• The median age at CD diagnosis was 1 year, while
  the median age of type 1 diabetes diagnosis was
  10 years among patients with a prior CD
  diagnosis.
• Jonas F. Ludvigsson ,Diabetes Care.
  2006292483-2488.

27
Coeliac Disease Triples Risk of Type 1 Diabetes

• Children with CD had increased hazard ratio of
• 2.4 for a subsequent diagnosis of type 1
  diabetes
• before age 20.
• No evidence that an earlier introduction of a
• gluten-free diet in patients with CD protects
  against type 1 diabetes
• Jonas F. Ludvigsson ,Diabetes Care.
  2006292483-2488

28
Clinical Manifestations of Coeliac Disease

• Since the development of serological screening
  tests for CD, it has become evident that the
  common symptoms constitute only a minor component
  in the concept of CD , In the majority of cases
• Clinically silent
• Extra gastrointestinal symptoms

29
Clinical Manifestations of Coeliac Disease

• Since 1960 ,a shift toward milder symptoms has
  occurred, both in children and adults
• Steatorrhea and profuse diarrhea are relatively
  rare
• Patients often suffer only from occasional loose
  stools
• Malabsorption may be subclinical
• Severe forms are infrequent

30
Clinical Manifestations of Coeliac Disease

• Nutrients malabsorption
• Anemia iron or folic acid deficiency
• less commonly of cobalamin.
• Hypocalcemia
• Hypoproteinemia
• Fat-soluble vitamins D , less often K .
• Constipation, overweight, or obesity do not
  exclude coeliac disease

31
Extraintestinal and Atypical Manifestations
Dermatitis Herpetiformis

• Erythematous macule gt urticarial papule gt tense
• vesicles ,Symmetric distribution
• Severe pruritus
• No GI symptoms 90
• Villous atrophy 75
• Gluten sensitive
• Garioch JJ, et al. Br J Dermatol. 1994131822-6.
  Fry L. Baillieres Clin Gastroenterol.
• 19959371-93. Reunala T, et al. Br J Dermatol.
  1997136-315-8.

32
Extraintestinal and Atypical Manifestations

• Recurrent oral aphthous ulcerations

33
Extraintestinal and Atypical Manifestations

• Enamel defects in the
• permanent teeth may
• be the only
• manifestations of CD

34
Extraintestinal and Atypical Manifestations

• Osteoporosis Osteomalacia
• Low BMD
• Improve on
• GFD

35
Extraintestinal and Atypical Manifestations

• Neurological symptoms
• Peripheral neuropathy
• Memory loss
• Ataxia
• Epilepsy Cranial
• calcification
• Severe proximal myopathy

36
Extra intestinal and Atypical Manifestations

• Sjögrens syndrome
• Nonspecific arthritis
• Juvenile arthritis
• Arthralgia
• Immune hepatitis

37
Clinical Features of CD in Type 1 Diabetes

• Mostly asymptomatic 60 of children
• Silent Positive serology , Abnormal jejunal
  biopsy
• Identified by screening
• Latent No symptoms Normal mucosa Positive
  serology
• Develop mucosal damage Symptoms on follow up

38
Clinical Features of CD in Type 1 Diabetes

• Recurrent unexplained hypoglycemia
• followed by ketosis
• Decrease Insulin requirement
• ?? Honeymoon Period
• Poor Glycemic Control
• (Brittled Diabetics)

39
Depletion of CHO Stores
Recurrent Hypos followed by DKA
Recurrent Hypoglycemia
CHO Malabsorption
Sympathetic Stimulation
Normoglycemic Ketosis (Starvation Ketosis)
40
Coeliac Disease Associated with Increased TB Risk

• The occurrence of TB in 14,335 patients with CD
  and in 69,888 matched normal subjects
• The presence of CD raised the risk of TB by 3.74
  fold
• Subjects with prior TB were 2.5-times more likely
  to have CD
• Jonas F. Ludvigsson ,Thorax 2006

41
Malignancy in Coeliac Disease

• T-cell Lymphoma Rare
• Suspect if long history of celiac disease and
• Reversal of response to gluten withdrawal
  with
• Fever
• Weight loss
• Abdominal pain

• Finger clubbing
• Bowel ulcerations
• Sustained rise in serum
• IgA levels

42
Malignancy in Coeliac Disease

• T- and B-cell non-Hodgkin lymphoma.
• Adenocarcinoma of the
• Oropharynx, Esophagus, Pancreas
• Small and large bowel
• Hepatobiliary tract

43
Starvation Ketosis

• Very mild symptoms nausea , fatigue
• Good hydration
• Normal B. glucose or Mild moderate
  hyperglycemia
• Normal electrolytes
• Absent or mild acidosis.
• Simply corrected by IV glucose insulin

44
Clinical Features of CD in Type 1 Diabetes

• Iron or folic acid deficiency
• Infertility
• Short stature 30 of children with CD
• 10 of children and teens with short stature
• have CD
• Severe malabsorption is unusual

45
Clinical Features of CD in Type 1 Diabetes

• Delayed menarche in untreated female teens
• Bleeding tendency
• Unexplained urticaria
• Unexplained elevated liver enzymes (ALT,AST)
• 9 of adults have silent CD
• Usually normalized on GFD

46
Problems of CD Diagnosis in Type 1 Diabetes

• Silent
• Weight loss
• Hypoglycemia
• Chronic diarrhea
• Growth retardation
• Peripheral neuropathy

47
Serological Test Comparison

• Sensitivity
  Specificity
• AGA-IgG 69 85
  73 90
• AGA-IgA 75 90
  82 95
• EMA (IgA) 85 98
  97 100
• TTG (IgA) 90 98
  94 97
• Farrell RJ, and Kelly CP. Am J Gastroenterol
  2001963237-46.

48
Diagnosis of Coeliac Disease

• Typical histopathology
• Total or subtotal villous
• atrophy
• Chronic inflammary cell
• infilteration
• Intraepithelial lymphocytes

49
Screening For CD in Type 1 Diabetics

• Screening for CD is indicated in
• Newly diagnosed type 1 diabetics
• Those who developed diabetes within the previous
  4 years.
• At any time if child or adolescent develops
  intestinal or extra-intestinal symptoms
  consistent with CD.

50
GFD Diabetes

• Exclusion of wheat, rye, barley and initially
  oats which may be reintroduced safely in most
  patients.
• Rice, maize and potatoes are satisfactory
  sources of alternative complex carbohydrates.

51
Diabetes and GFD Management Guidelines

• CHO 55 60 of total calories intake
• GFD More burden on an already restricted
  diet
• Insulin requirement usually increase following
  GFD
• Patients should check BG levels before meals and
• snacks to determine their insulin dose as often
  as
• possible
• Postprandial BGs to determine
• how different GF grains or CHO affect the BG

52
Diabetes and GFD Management Guidelines

• Promote CHO consistency
• Daily 210240 grams will be adequate for most
  individuals.
• CHO should be spread evenly across meals and
  snacks throughout the day to maintain more stable
  BG levels.
• If six small meals were eaten throughout the
  day, each should consist of approximately
  3045grams

53
Diabetes and GFD Management Guidelines

• Promote GF whole grains, fruit, vegetables,
• legumes and low-fat dairy products
• A basal-bolus regimen may be helpful to promote
  optimal glucose control. Basal insulin is
  combined with rapid-acting insulin before
  meals.
• Insulin therapy should be individualized based on
  the patients ability to do the required
  calculations and willingness to take multiple
  daily injections.

54
Going Natural

• Commercial GF products expensive
• Make GF substitutions using naturally GF foods
• Rice bread
• Asian rice pasta in place of regular pasta
• Corn tortillas instead of flour tortillas

55
HAVE A NICEWEEK
