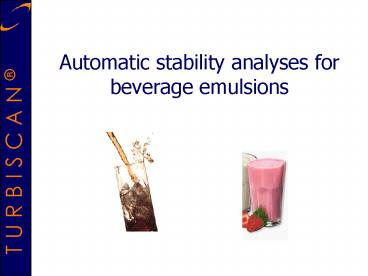

Automatic stability analyses for beverage emulsions

1
Automatic stability analyses for beverage
emulsions
2
Beverage emulsions
Dairy products

• Products
• milk
• flavoured milk (chocolate, coffee, fruit
  juice,)
• enriched milk (calcium, minerals, vitamins, )
• nutritional formula
• Colloidal instabilities
• creaming of fat globules
• flocculation of casein micelles
• aggregation of fat globules (depletion
  flocculation) increasing creaming rate
• aggregation and sedimentation of particles
  (cocoa, calcium, etc.)

3
Beverage emulsions
Soft drinks

• Products
• concentrated emulsions
• soda
• fruit juices
• Colloidal instabilities
• creaming
• ring formation
• sedimentation of pulp

4
Beverage emulsions
Need for an accurate and objective technique to
measure stability of beverage emulsions
Turbiscan technology
5
Multiple Light Scattering

BSk(1/l)
lk(d/f)
Backscattering
Transport length of the photon
With k (dh) dh detector height
With d particle mean diameter f volume
fraction
6
Multiple Light Scattering - Effect of the volume
fraction-
DILUTED REGIME
CONCENTRATED REGIME
7
Multiple Light Scattering - Effect of the
particle size -
8
Principle of measurement
Acquisition of the - Transmitted flux
(T) and - Backscattered flux (BS)
Analysis of diluted to concentrated products
1 Acquisition every 40 µm
High vertical resolution
One scan lasts 20 seconds
Measurement of fast destabilisations
9
Principle of measurement
One scan
Multi scans
Acquisition time of each profile
Backscattering ()
Height (mm)
Height (mm)
10
Principle of measurement
Particle size variation
Particle migration
Coalescence or flocculation
Sedimentation or creaming
t0 min
t0 min
t15 min
t15 min
11
Beverage applications
Migration of particles in milk

• Problem
• Addition of particles in milk (flavours,
  minerals, etc.)
• Pigments tend to settle because of density
  difference
• Solutions
• Increase viscosity
• Use stabiliser
• Monitor the sedimentation of the particles in an
  opaque system

12
Beverage applications
Migration of calcium particles in milk
Sediment thickness kinetics
Sedimentation
Phase thickness (mm)
Clarification
Time (d)
Migration velocity 0.003 mm/h
? Objective measurement on invisible sediment
13
Beverage applications
Choice of optimal stabiliser

• Problems
• Many colloidal instabilities taking place
  simultaneously (creaming, sedimentation,
  flocculation, )
• Find the most suitable stabiliser
• Solutions
• Prepare many formulations
• Test their stability
• Identify and monitor the effect of different
  stabilisers on destabilisation phenomena

14
Beverage applications
Choice of optimal stabiliser

• Sedimentation compute migration velocity
• Creaming follow phase thickness of cream layer
• Aggregation monitor particle size increase

Creaming
Sedimentation
Aggregation
Clarification
? Different parameters for different phenomena
15
Beverage applications
Choice of optimal stabiliser
Sedimentation
Aggregation
Stabiliser 1 Stabiliser 2 Stabiliser 3
Creaming
? Stabiliser 3 is the most efficient
16
Beverage applications
Flavour emulsions for soft drink

• Typical formulation of flavour emulsion
• Essential oils (neutral oil, vitamins, colors) 6
  - 10
• Weighting agent(Damar gum, Esterified
  colophany, SAIB) 6 - 10
• INSTANTGUM 40693 15 - 20
• or EFICACIA 75000 4 7
• Water up to 100
• Coloring agent ()
• () Coloring agent water soluble (artificial)
  or oil soluble (carotene, oleoresin)

17
Beverage applications
Flavour emulsions for soft drink
Preparation of flavour emulsion
18
Beverage applications
Flavour emulsions for soft drink
Stabilisation of flavour emulsion
19
Beverage applications
Flavour emulsions for soft drink
Typical unstable emulsion
Typical stable emulsion
20
Beverage applications
Ring formation in soft drink

• Problem
• Creaming of oil phase in diluted drink
• Formation of a ring at the top of the drink
• Solutions
• Increase density of oil phase (weighting agent)
• Use stabiliser
• Detect the ring formation on soft drink

21
Beverage applications
Ring formation in soft drink
Ring
Delta BS ()
Density of the oil phase
? Detection of the ring in only 12 hours
22
Beverage applications
Automated analyses

• Automatic handling with robot (80 runs per hour)
• Automatic data processing on whole group of
  samples
• Automatic sorting of samples with warning level
• Automatic reporting

23
Conclusion
The Turbiscan technology is

• Easy to use
• Reliable
• Time saving
• Objective

• So you have more time and information to focus
  on formulation
