Title: Implementation of Energy efficiency labelling in China

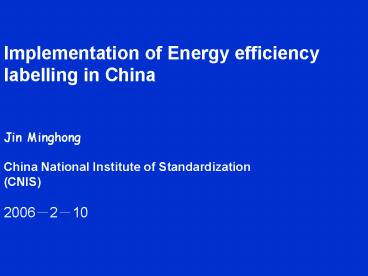

1
Implementation of Energy efficiency labelling in
China Jin Minghong China National Institute
of Standardization (CNIS) 2006-2-10
2
Products covered
  • Household refrigerators and room air conditioners
    were covered by the mandatory label system on
    March, 1st , 2005
  • household refrigerators
  • electric motor driven compressive type
    refrigerators with volume of 500L and below.
  • Room air conditioners
  • air conditioners using air cooling condenser,
    closed motor-compressor, with cooling capacity
    under 14000W, working under climate T1.
  • Not applicable to speed-variable, mobile and
    multi-connected air-condition (heat-pump) unit.

3
Criterion of energy efficiency classification
  • Energy efficiency national standards
  • household refrigerators
  • GB12021.2 -2003
  • The maximum allowable values of the energy
    consumption and energy efficiency grades for
    household refrigerators
  • Room air conditioners
  • GB12021.3 -2004
  • The minimum allowable values of the energy and
    energy efficiency grades for room air conditioners

4
Energy efficiency standards in China
  • E-E standards covered 21 products
  • --householder appliances 8
  • --lighting product 6
  • --commercials equipment 2
  • --industrial equipment 4
  • --car passenger car

5
The list of energy efficiency national standard
China research center of Car. energy
efficiency classification, Evaluating value
for energy conservation certification.
6
The list of e-e national standard (continued)
China research center of Car. energy
efficiency classification, Evaluating value
for energy conservation certification.
7
Methodology of developing energy efficiency grades
  • 1?statistics analyses of e-e of products in
    market
  • 2 Engineering economic analysis
  • Life cycle cost
  • Macro analysis for standards impacts to nation,
    manufactures,consumers
  • economic effects
  • energy saving potential
  • pollution mitigation

8
LCC Model for air conditioners

9
LCC Model for air conditioners

10
Principals of setting E-E grades

1 grade international level, the top 510 of
market share in term of energy efficiency 2
grade the lowest LCC, the top 20 of market
share, meets the evaluating value of energy
conservation ( a voluntary label) 3
grade average level of energy efficiency in
market 4 grade below average level 5grade
to be removed in 24 years. The lowest 10 of
products in e-e
11
Categorical criterion of air conditioners and
refrigerators

12
Comparison of EE of air conditioners between EU
and China

13
Comparison of EE of refrigerators between EU
and China

14
Pattern of China Energy Label
15
Specifications of label design of refrigerators

Manufacturer name
Product model
E E grade
Electricity consumption per day
Volume of different cabinets
Standard code
16
specifications of label design of room air
conditioners

Manufacturer name
Product model
E E grade
E E ratio
Power input
Cooling capacity
Standard code
17


Implementation procedure
1 determining label's information against
Energy Efficiency National Standards2 whether
label's information is correct or not? 3
whether the pattern of the label used is
compliance or not? 4 whether the label used was
registered to CNIS or not? 5 whether register
material is correct integrated or not? 6
whether the label information need be revised or
not? T True F False
18
Register procedure
???????? Enterprises submit their registration
information
???????? The use of energy labels
???? Documentation and checking
???manufactures
???? Authorized institution
???????????? Notification at energy label website
??????? Record number
????? Inform registers
?????? Government monitoring
??????????? The public inquire the notification
and relevant information
19
Requirements of Energy efficiencys test report.
  • manufactures testing their products energy
    efficiency in themselves lab is permitted
  • To Use unified template of testing report.
  • When dispute occurs over an energy-efficiency
    value, it shall be retested by a lawfully
    recognized or an officially accredited
    third-party testing laboratory for arbitration.

20
How to identify information of the
label-refrigerators
  • the EE grade should accord to GB12021.2 and
    test report
  • The labeled electricity consumption should be
    lower than 1/1.15 of tested consumption and
    lower than the max. value against the labeled EE
    grade.
  • The each cabinets volume tested should be not
    lower than 97 of labeled volume.

21
How to identify information of the labelAC
  • the EE grade should accord to GB12021.3 and
    test report
  • The labeled EE ratio should be lower than lower
    than the max. value against the labeled EE
    grade.
  • Tested Power input for cooling should be lower
    than 110 of the labeled value.
  • The cooling capacity tested should be not lower
    than 95 of labeled value.

22
Register procedure of Energy efficiency label.
  • the products shall be registered within 30 days
    after it has been labeled. The following
    documents shall be provided to CNIS, the
    authorized body
  • 1. Copy of the business license or the
    testimonial of their registration for
    manufacturers copy of the relevant contract with
    the producers overseas for importers
  • 2. Test report of the product energy efficiency
  • 3. Sample of the label
  • 4. Other relevant information, such as the
    initial date to apply the label
  • 5. In the case that an agent submits, on behalf
    of the manufacturer or the importer, documents
    for the registration, a proxy document of the
    client shall be presented.
  • A Chinese version shall be submitted along with
    the documents originally written in foreign
    language, and the former is given preference.

23
www.energylabel.gov.cn
24
Bulletin system for the label
25
Present status of the labels implementation
Up to Nov. 2005, near 4000 models of air
conditioners covered more than 60 manufacturers,
and near 2200 models of refrigerators covered
more than 70 manufactures were registered. More
than 98 of refrigerators and air conditioners
was attached the label in Chinese markets. The
label program runs smoothly in China.
26
(No Transcript)
27
Energy efficiency distribution of refrigerators
and room air conditioners in Chinese market
Model distribution
from March, to Nov. 2005
28
Energy saving potential from the label
  • If the label covers 8 products including some key
    household appliances and lighting products in
    China
  • -up to 2010, the label system will save
    about 70 billion Wh.
  • -up to 2020, the label system will save about
    250 billion Wh.

29
Please contact me
  • Jin Minghong
  • China National Institute of Standardization
  • Sub-institute of resource and Environment
    standardization
  • AddressNo.4 Zhichun Road, Beijing
  • Post code 100088
  • Tel86-10-58811718
  • FAX86-10-58811714
  • E-mail Jinmh_at_cnis.gov.cn
  • http//www.energylabel.gov.cn

30
Thank you very much!
