Manuel Brandozzi

1

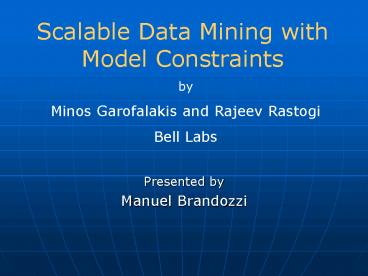

Scalable Data Mining with Model Constraints
by Minos Garofalakis and Rajeev Rastogi Bell Labs

• Presented by
• Manuel Brandozzi

2
Introduction

• Users interested to specific patterns only
• Traditional approaches require disproportionate
  cost
• They provide overwhelming volume of rules or
  patterns

3
Overcoming These Drawbacks

• The authors introduce scalable constraint-based
  algorithms
• Construct decision trees with accuracy and size
  constraints
• Extract sequential patterns with regular
  expression constraints

4
Decision Tree Construction

• Traditional algorithms prevent overfitting by MDL
  principle
• MDL principle based on cost of encoding
• ?Structure
• ?Attribute and split value
• ?Classes of data records in leaves

5
Pushing Constraints into Tree Building

• Traditional algorithms enforce user constraints
  after a full decision tree is built
• The new algorithm periodically enforces the
  constraints while building the tree

6
How Does It Work?

• Compute cost U of cheapest subtree of size at
  most k of the partial tree Tp
• Compute lower bounds on cost of subtrees rooted
  at the nodes of Tp
• Nodes whose lower bound is greater than U may be
  safely pruned

7
Sequential Pattern Discovery with RE Constraints

• RE constraint regular expression over the
  alphabet of sequence elements
• A RE constraint can be expressed as a
  deterministic automaton

8
SPIRIT Family of Algorithms

• Get frequent sequences that satisfy constraint C
• Work in passes
• They relax C by using a weaker constrain C and
  use C in the candidate generation and pruning
  phases

9
SPIRIT Family of Algorithms -cont

• The goal is to restrict the number of candidate
  k-sequences at each step
• Constraint based pruning
• Support based pruning

10
Type of Constraints and Strategies

• Anti-Monotone push C all the way inside
  computation
• Non Anti-monotone take the anti-monotone
  relaxation?
• May not have non-trivial ones

11
Pushing Non Anti-Monotone Constraints

• The strength of the non anti-monotone relaxation
  of C impacts both constraint-based and
  support-based pruning

12
The SPIRIT Family

• Spirit(N) all elements appear in R
• Spirit(L) legal wrt some state of Ar
• Spirit(V) valid wrt some state of Ar
• Spirit(R) valid, i.e. C is R

13
Experimental results

• There is no clear winner between the different
  algorithms
• SPIRIT(R) best for highly selective algorithms
• SPIRIT(V) best overall

14
Conclusion

• Summarizes previous work of the authors on
  constrained DT and AR
• Additional implementation details may be found
  there
• Experimental results verify their hypothesis
