Title: MicroTCA and AMC DSP Resource Boards Enable CarrierGrade Media Processing


1

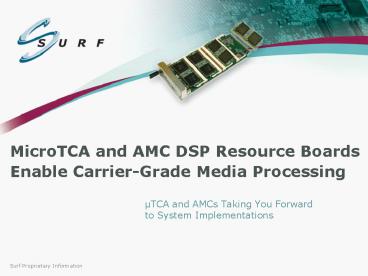

MicroTCA and AMC DSP Resource Boards Enable
Carrier-Grade Media Processing
  • µTCA and AMCs Taking You Forward to System
    Implementations

2
Topics for Discussion
  • Surf Company Overview
  • What is an AMC DSP Resource Board?
  • Types of Supported Applications
  • DSP Advantages
  • Surfs Competitive Advantage

3
Company Overview
  • Founded in 1996
  • Private company backed by major venture capital
    firms
  • Expertise in multimedia processing with Texas
    Instruments (TI) DSPs
  • Strategic partner of TI for C64x generation
    multimedia processing solutions
  • Subsidiaries
  • Surf Communication Solutions Inc. (USA)
  • Surf Communication Solutions B.V. (Netherlands)

4
Product Overview
  • AdvancedMC form-factor DSP farm
  • Up to 8 TI C64xx DSPs on board
  • Flexible and scalable modular design with
    SurfDocker
  • Pre-integrated with leading ATCA boards and
    MicroTCA chassis
  • Can be provided as hardware-only solution for
    DSP-intensive applications

5
Hardware Architecture
Roadmap feature
6
Target Applications
  • IMS MRFP
  • Audio and Video Gateways
  • Media Servers
  • Session Border Controllers

7
Examples of Supported Applications
User-Generated Content
8
Typical Network Topology
9
Media Server Requirements
  • Interactive response menu system DTMF detection
    driven
  • Adaptation of content to any terminal type over
    any type of network
  • File-based
  • Transcode video content (H.263, MPEG-4, H.264)
  • Resize to fit to any screen size
  • Down sampling of frame rate and bit rate
  • Support for 3GP and MPEG-4 file formats
  • Run to completion Adopt content as fast as
    possible
  • Streaming
  • Support for on-the-fly video conversion
  • Single file to multiple destinations in various
    formats
  • Support QoS, RTP, RTCP, RTCP-XR
  • High availability, scalable solution
  • Integration of new and proprietary codecs

10
MRF System Carrier Grade System
Application Servers
Video Mail
Video Blog
Portal
MRFC
SIP/JSR309
H.248
Media streaming/RTP
IP
MRFP
11
MGW - Carrier Grade System
  • Based on i-TDM
  • Allows true plug and play
  • Optimal resource usage DSP horsepower vs. TDM
    interfaces
  • Allows for a truly redundant, fault-tolerant
    system
  • Scalable system
  • Integrated with Motorola and Interphase

Control by MGCP/Megaco
PSTN
IP
i-TDM bus internal connectivity
12
SBC - Carrier-Grade System
  • Complete VoIP transcoding solution
  • Operate in two different networks
  • Allow for packet inspection
  • Built for high throughput VoIP traffic

IP
IP
SBC
13
DSP Advantages
  • Cost-Performance
  • Large selection of DSPs to address wide range of
    requirements
  • few tens of for cost-performance DSP i.e.,
    C6424
  • few hundreds of for high performance DSP i.e.,
    C6455
  • Maturity and interoperability of voice solutions
    on DSP
  • Superior Density
  • DSP cores optimized to perform voice signal
    processing
  • I/O Bandwidth
  • Dual MAC I/O with direct link to DSP core

14
DSP Density and Power
  • Power consumption
  • DSP Power per channel is significantly less than
    HMP
  • Floor space
  • Order of magnitude more channels per DSP AMC

15
AMC DSP Farm Advantages
  • Provides maximum density/price ratio
  • Allows up to 60W power dissipation per board
    (when integrated into MicroTCA)
  • Provides best density/space ratio
  • Supports all carrier-grade features
  • Surfs modular design enables more flexibility in
    DSP selection and densities while maintaining
    software investment

16
Surf LEADS the AMC-DSP Market
  • First to launch AMC DSP board
  • GA mid 2006
  • Stable and mature
  • Unique and flexible design
  • 1 supplier of DSP AMC boards in 2006
  • DSP boards Surfs core competence
  • Complete software solution Voice, Video and Data
  • Proven track record with
  • Major Tier 1 customers
  • Major applications Media Server, MRFP, MGW,
    Video and IMS
  • Market recognition from leading partners (ATCA,
    µTCA)

17
Surfs Competitive Advantage
  • Offering TIs cutting edge DSPs (C6482 C6486)
    for high density voice and video
  • AMC interface via FPGA (proprietary interface)
  • Manageability
  • Same platform for Voice Video - unlike DSP for
    voice and HMP for video
  • Comprehensive multimedia processing suite
  • Voice, Video Data (Fax)
  • including 3G-324M
  • Flex channel
  • Open framework allows easy integration of
    proprietary codecs

When available from TI
18
Thank Youwww.surf-com.com
