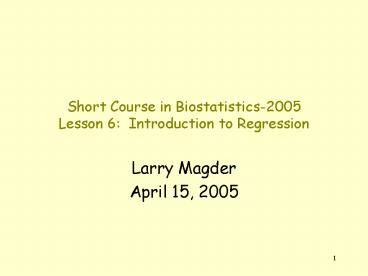

Short Course in Biostatistics2005 Lesson 6: Introduction to Regression

1
Short Course in Biostatistics-2005Lesson 6
Introduction to Regression

• Larry Magder
• April 15, 2005

2
Outline

• Brief review of parametric statistical methods
• Two purposes of regression models
• Modeling the effect of a quantitative predictor.
• Estimating the effect of one variable,
  controlling for other variables.

3
Review of Parametric Statistical Methods

• Many scientific questions can be viewed as
  questions about the unknown probability
  distribution of random variables.
• These distributions can be characterized by a
  small number of parameters.
• Statistical Methods
• 1. Summarize what the data say about the
  possible values of the parameters.
• 2. Quantify the evidence in the data with
  respect to hypotheses about the parameters.

4
Regression Models, Purpose 1 Modeling effect
of a quantitative predictor

• Suppose you want to know whether a new drug
  increases blood pressure. Then you might focus
  on two parameters
• ?1 mean BP change in those given the drug
• ?0 mean BP change in those not given drug
• The null hypothesis would be H0 ?0?1
• Given data we can estimate the ?s and assess the
  evidence with respect to the null hypothesis

5
Modeling effect of quantitative predictor

• What if your predictor is a quantitative
  variable?
• e.g, we might be interested in the effect of
  different doses of drug.
• For simplicity, assume there are three doses.
• One approach. Assume
• ?1 mean BP change in those given dose 1
• ?2 mean BP change in those given dose 2
• ?3 mean BP change in those given dose 3

6
Modeling effect of quantitative predictor

• Alternatively, we might assume
• ?x ?0 ?1x where x is the dose
• Note that this expression implies that
• ?0 ?0
• ?1 ?0 ?1
• ?2 ?0 2?1
• ?3 ?0 3?1
• That is, each unit change in exposure leads to an
  increase in blood pressure by an additional ß1
  units

7
Modeling effect of quantitative predictor

• Graphically, this model appears as follows

8
Modeling effect of quantitative predictor

• Advantages of this model
• It is more parsimonious than assuming a separate
  mean at each level. (Effect of treatment is
  summarized by one parameter).
• This model is not confined to a situation when
  there are only a small number of doses as in this
  example.
• Disadvantages of this model
• It assumes a linear relationship between dose and
  effect. (Smoothing Assumption)

9
Regression Models, Purpose 2Parameterizing
the effect of one variable, controlling for other
variables

• Motivating example Suppose you are interested
  in the effect of moderate alcohol use during
  pregnancy on the mean birth weight of infants.
• Results

10
Parameterizing the effect of one variable,
controlling for other variables

• We might want to control for smoking.
• Lets redo the analysis stratifying by smoking
  status.
• What would be a good estimate of the effect of
  moderate drinking on birth weight, controlling
  for smoking?

11
Parameterizing the effect of one variable,
controlling for other variables

• The effect of drinking controlling for smoking
  might be viewed as the effect of drinking after
  holding smoking constant.
• In these data, the effect of drinking controlling
  for smoking appears to be 50 gms in one strata
  and 39 gms in the other strata.
• If we are willing to assume the effect is the
  same in both strata (no effect modification)
  then we might take an average of 50 and 39
• This average can be called the effect of
  drinking on birth weight, controlling for smoking.

12
Parameterizing the effect of one variable,
controlling for other variables

• One way to model these data and incorporate the
  assumption of no effect modification is
  parameterize it as a regression model.

13
Parameterizing the effect of one variable,
controlling for other variables

• Let
• X11 if mother drank, 0 otherwise
• X21 if mother smoked, 0 otherwise
• Then, assume E(Y) ?0 ?1X1 ?2X2
• Note this implies
• For Smokers and Drinkers, E(Y) ?0
  ?1 ?2
• For Smokers and Non-Drinkers E(Y) ?0 ?2
• For Non-Smokers and Drinkers E(Y) ?0 ?1
• For Non-Smokers/Non-Drinkers E(Y) ?0

14
Parameterizing the effect of one variable,
controlling for other variables

• By subtracting, it can be seen that the effect of
  drinking in each strata defined by smoking is ?1
  !
• Therefore, ?1 is the effect of drinking
  controlling for smoking.
• The linear equation is a simple way to
  parameterize this effect of interest.
• The assumption that the effect of drinking is the
  same among smokers and non-smokers is another
  strong smoothing assumption

15
General Multiple Regression Model

• More generally, we often fit regression models
  with many independent variables, i.e.
• E(Y) ?0 ?1X1 ?2X2 ?3X3 .... ?kXk
• The predictors can be dummy variables or
  continuous variables.
• Generally we also assume that the variance of Y
  is the same at all levels of the predictor
  variables.
• Generally we also assume that the distribution of
  Y is normal at all levels of the predictor
  variables (not essential unless departure from
  normality is extreme).

16
General Multiple Regression Model

• In these models, it can be shown that the ?s are
  interpretable as the effect of the corresponding
  predictor, controlling for all other variables in
  the model.
• All ANOVA models (discussed last week) can be
  parameterized as linear regression models.

17
Smoothing Assumptions of the General Multiple
Regression Model

• It is important to realize that Multiple
  Regression Models make smoothing assumptions of
  two types.
• 1. The model assumes that the relationship
  between the E(Y) and quantitative predictors
  is linear.
• 2. The model assumes that the effects are
  simply additive (i.e. the effect one variable
  is the same in all levels of other variables)
• (No Effect Modification w.r.t. Mean
  Difference)

18
Advantages and Disadvantages of Regression
Approach

• Advantage
• Smoothing Assumption Makes it possible to
  represent important research questions with a
  small number of key parameters. Makes it
  possible to simultaneously consider many
  variables
• Disadvantage
• Smoothing Assumption Makes strong simplifying
  assumptions about the true relationships.

19
Relaxing the Smoothing Assumptions

• Each type of smoothing assumption can be relaxed
  by adding additional complexity to the regression
  model.
• Relaxing the assumption of linearity Add
  quadratic terms, piecewise linear terms, or other
  creative approaches.
• Example
• ?x ?0 ?1x ?2x2 where x is the
  dose

20
Relaxing the Smoothing Assumptions

• Relaxing the assumption of no effect
  modification
• Let X11 if mother drank, 0 otherwise
• X21 if mother smoked, 0 otherwise
• Then, assume E(Y) ?0 ?1X1 ?2X2 ?3
  X1X2
• Note this implies
• For Smokers and Drinkers, v E(Y) ?0
  ?1 ?2 ?3
• For Smokers and Non-Drinkers E(Y) ?0 ?2
• For Non-Smokers and Drinkers E(Y) ?0 ?1
• For Non-Smokers/Non-Drinkers E(Y) ?0
• Which implies
• Effect of Drinking among smokers ?2 ?3
• Effect of Drinking among non-smokers ?2

21
Estimation, Confidence Intervals, P-values

• How do we estimate the terms in the model?
• Need to collect independent realizations of Y and
  the associated predictors X1, X2, ...

22
Estimation, Confidence Intervals, P-values

• Note, for any possible choice of estimates, I
  would get a predicted value for Y. For example
  for
• the predicted value of Y would be
• Choose ?'s that make the result in estimates of Y
  that are closest to the observed value, on
  average.
• More specifically, we minimize the sum of the
  squared distances. ("Least Squares Regression")

23
Estimation, Confidence Intervals, P-values

• How is this done? By the computer!
• (It could take years to fit a single multiple
  regression model by hand).
• The computer will also provide confidence
  intervals and p-values based on t-distributions.
• These inferences are approximate, but they are
  exactly correct if the underlying data are
  assumed to be normal.

24
Example

• Head growth and neurodevelopment of infants born
  to HIV-1infected drug-using women
• Macmillan C, Magder LS, et al.,
  Neurology, 2001
• Using data from WITS cohort study of
  HIV-1infected women and their children, we fit
  regression models to estimate the effects of
  HIV-1 infection and in utero hard drug exposure
  Bayley Scales of Infant Development controlling
  for relevant confounders.

25
Example (continued)

• Data
• 1,094 infants born to HIV-1-positive mothers
• 147 (13) of the infants became HIV-1positive
• 383 (35) were exposed in utero to opiates or
  cocaine (drug-positive).
• Bayley scores measured repeatedly during the
  first 2 years of life
• (Note that repeated measures on the same
  children violates the assumption of
  independence so we had to use somewhat more
  complex methods).

26
Example (continued)

• Box Plots of Bayley Motor Scores by HIV status
  and in utero drug exposure. (A score of 100 is
  normal)

4 months of age
12 months of age
24 months of age
27
Example (continued)

• Regression Model for 4-month Bayley Score.
• E(Bayley Score) ß0 ß1HIV/DRUG
  ß2HIV/NoDRUG
• ß3DRUGnoHIV ß4AZT ß5 SMOKE
• ß6 ALCOHOL ....

28
Example (continued) Results
29
Example (continued) Fitted Model
Expected Bayley Motor Standardized Scores by Age
in 4groups (?HIV-,Drug- ?HIV-,Drug ?HIV,
Drug- XHIV, Drug)
30
Extension to other types of random variable

• The regression models described above were to
  model a quantitative outcome.
• They can be extended to model binary outcomes
  simply by replacing E(Y) on the left hand side by
  P(Y).
• For example, we might assume that
• Prob(Y1) ?0 ?1X1 ?2X2 ?3X3 .... ?kXk
• This model assumes that an increase in X by one
  unit results has an additive effect on the
  probability.
• The ?s are interpretable as "Risk Differences".
• The model assumes a smooth relationship between
  quantitative predictors and the prob. of binary
  outcome.
• The ?s are interpretable as the effect of the
  corresponding predictor on the probability of the
  outcome, controlling for all other variables in
  the model.

31
Extension to other types of random variable

• A second approach would be the following
• Prob(Y1) (?0)(?1X1)(?2X2)(?3X3) .... (?kXk)
• This model assumes that an increase in X by one
  unit results has an multiplicative effect on the
  probability.
• The ?s are interpretable as "Risk Ratios".
• The model assumes a smooth relationship between
  quantitative predictors and the prob. of binary
  outcome.
• The ?s are interpretable as the effect of the
  corresponding predictor on the probability of the
  outcome, controlling for all other variables in
  the model.

32
Logistic Regression

• However, most binary regression analyses are
  based on the odds ratio. The Logistic Regression
  Model is as follows
• Odds(Y1) (?0)(?1X1)(?2X2)(?3X3) .... (?kXk)
• This model assumes that an increase in X by one
  unit results has an multiplicative effect on the
  odds.
• The ?s are interpretable as "Odds Ratios".
• The model assumes a smooth relationship between
  quantitative predictors and the odds of the
  outcome.
• The ?s are interpretable as the effect of the
  corresponding predictor on the probability of the
  outcome, controlling for all other variables in
  the model.
