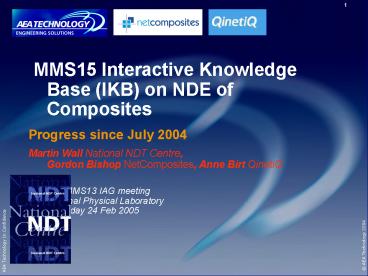

MMS15 Interactive Knowledge Base (IKB) on NDE of
Composites Progress since July 2004 Martin Wall
National NDT Centre, Gordon Bishop
NetComposites, Anne Birt QinetiQ MMS15/ MMS13
IAG meetingNational Physical LaboratoryThursday
24 Feb 2005
2
Objectives

• Development of an Interactive Knowledge Base
  (IKB) on NDE of composites
• Transfer of NDE expertise across industry
• A single focal point for industry on NDE of
  compositesthe IKB .on your desk
• An NDE forum for exchange of practical and new
  information (Technology transfer)
• A live IKB that will evolve and grow with time
• Inclusive of all industry sectors and NDE
  methods.
• A step change in the use of NDE by UK industry. A
  gain in the quality of composite components.

www.mms15.cominfo_at_mms15.com Members
Area UserID mms15userPassword iagmms
3
What questions will the IKB answer

• Is the equipment portable and usable in the
  field?
• What size of defect will it find?
• Is it applicable to my application?
• Are there procedures and standards I can use?
• What does the data look like and show me?
• Will it work in my composite fabrication?
• Can it size and characterise the defect?
• What is the status of the method?
• What are the limitations?
• How do I use the data in defect assessment or
  design?
• Who else in my sector is using the method?
• ...

...An authoritative answer..all in one place.
4
MMS15 IKB Features

• Browse by NDE method, Defect Type, NDE Type or
  Other
• Technique Selection Recommend-a-Technique (RAT)
  based on the best of expert judgement
• NDE Forum
• Search
• Feedback
• State-of-the-art user-interface and effective
  dissemination via NetComposites portal

5
Actions July 2004 Meeting

• Strategy and Audit process for Technique
  Selection tool (RAT)
• Audit process for Content
• User guide
• Finalise Questions and answers (QAs) for
  Technique Selection tool
• Score techniques for selection tool (RAT)
• Simplify structure. Finalise List of techniques
• Expand and refine Content
• Implement other features NDE Forum, Search,
  Feedback. Software improvements

6
Progress since July 2004

• Audit Strategy defined (September Meeting)
• Simplified and easier IKB structure
• Distinction Common v Specialised techniques
  -Different treatment
• Improved User Interface and Menus. New Main
  version of IKB on NC site
• Initial scoring complete for technique selection
  tool.
• Technique Selection Tool now implemented
• NDE Forum implemented
• Lot of new information. Detection of porosity
  etc.
• Sequential audit, processing and input of
  information to IKB
• Case studies Laser optical, composite repairs
• Website and members area updated
• Visits and interactions with IAG members, NDE
  Cos and users

7
Software Improvements

• New structure implemented
• New menus Net Composites Site
• NDE Forum implemented
• Score editor to edit and compare scores for TS
  tool
• Search and Feedback implemented NC site
• Technique Selection implemented Development site

8
Review Meeting September 2004

• AEAT, Qinetiq, Net Composites Full Project team
• Refined list of QAs agreed
• Strategy for audit of Content agreed
• Scoring and Audit of Technique Selection tool
  agreed
• Lists of techniques finalised Common,
  Specialised, Developmental
• IKB structure simplified
• 50 techniques in IKB Only 10 commonly used
  Focus audit and accurate scoring for
  theseInformation needs to be robust and correct.

• For specialised techniques important thing is to
  flag up. Less known on these but may need these
  for difficult inspection problems

9
Audit process

• Audit to focus on COMMON techniques. Important
  these robust and correct
• Separate and simpler process for SPECIALISED
  DEVELOPMENTAL techniques
• Common Techniques
• Invite IKB content to be reviewed by experts,
  project team, suppliers, IAG, users
• Gaps, additional data, comments
• Invite specific experts to Score common
  techniques for Technique Selection Tool
• Scores to be independently audited by Steve Burch
  AEAT, Robert Smith QinetiQ
• Test runs by project team, IAG and others. Are
  suggestions sensible
• Specialised and Developmental
• Specialised and developmental ranked by project
  team but comment invited from specific experts

10
List of Experts
Table Provisional List of experts to involve in
the scoring and audit process for Common
techniques G General U User S Supplier E
Expert
11
Technique Selection Results
COMMON Specialised,
Developmental
Specialised techniques simply given in
alphabetical order, no ranking, but can view
scores
12
List of Techniques Common

• Acoustic Emission (AE)
• Acoustic Impact (AI)
• Laser Shearography (LS)
• Mechanical Impedance (MI)
• Membrane Resonance (MR)
• Thermography (TT)
• Ultrasonic B-Scan (UB)
• Ultrasonic amplitude C-Scan (UC)
• Ultrasonic depth scan (2D map of structure,
  colour represents depth, rather than attenuation)
  (UD)
• Ultrasonic thickness (A-scan) or 'Ultrasonic
  A-Scan' (UA)
• Visual (included enhanced) (V)
• X-Radiography (XR)

13
List of Techniques Specialised

• Acousto Ultrasonics (AU)
• Angle Probe Ultrasonics (AP)
• Dielectric (DI)
• Eddy Current Methods (ET)
• Lamb and Guided Waves (LW)
• Laser Ultrasound (LU)
• Microwave (MW)
• Polar Ultrasonic Scan (PU)
• TOFD (TO)
• Ultrasonic Backscattering (UK)
• Ultrasonic Spectroscopy (US)
• UT C-Scan Image Processing (UI)
• Velocimetric (VE)
• Velocity Measurement (VM)
• X-Ray Tomography (XT)

14
List of Techniques Developmental

• CHIME Head Wave (CH)
• Gamma Radiography (GR)
• Lock-In Thermography (LT)
• Optical Holography (OH)
• Vibro Thermography (VT)
• X-Ray Backscatter (XB)
• X-Ray Refractometry (XR)

15
Technique Selection QAs

• Purpose What is the purpose of the inspection?
• Timing When and where is the inspection to be
  carried out?
• Material What is the composite material to be
  inspected?
• Sandwich What is the core Material? Dependent
  on answer in 3
• Geometry What is the geometry of the area to be
  inspected?
• Defect What type(s) of defect are to be
  detected/sized?
• Position What is the distance through the
  component to the defect (usually defect depth)?
  Dependent only if monolithic
• Position What is the through wall position of
  the defect in the component? Dependent question
  sandwich only
• Thickness What is the skin thickness of the
  component? Dependent on sandwich and defect not
  in top skin
• Thickness What is the thickness of the
  component Dependent question for Sandwich, only
  if defect in core or below.
• Coating Is the component coated?
• Surface What is the surface condition?
• Access Is access to the defect by NDE technique
  restricted
• Procedures Must procedures and standards be
  available?
• Performance Which is more important Cost of
  Inspection, Speed of Inspection?
• Inspectors How skilled can you afford the
  operator to be?

16
Scoring Process Common

• For each answer on the spreadsheet give integer
  score from 0 (rules out) to 10 (no effect). Also
  put a simple comment to indicate the basis for
  the score e.g Radiography poor for cracking ,
  difficult in this thickness etc.
• Gut feel on how a factor could affect the
  technique.
• ? Against score if uncertain and amplify in
  comment and amplify in the comment.
• simple overall comment about experience with the
  method.

Score 10 No effect 7-9 Slightly limits
5 Limits (effectiveness reduced by 50
) 2-3 Significantly Limits 0 Rules out
technique ? Uncertain
17
Scoring Process Specialised, Developmental

• Simpler process
• Score answer
• 0 if showstopper
• S if significant effect,
• ? If uncertain
• 1 Otherwise
• Users see separate list alphabetical order our
  experts suggest the following specialised or
  developmental techniques could be worth
  considering

18
Technique Selection Example scores
19
Technique Selection Scores
20
(No Transcript)
21
(No Transcript)
22
Technique Selection Tool
23
MMS15 Noticeboard www.mms15.com
24
Members Area
25
IKB Main Version NetComposites Site

• New Menu System
• Live version for Search and Feedback
• Technique Selection not yet implemented this site

http//www.netcomposites.com//ikb/default_v2.asp
26
(No Transcript)
27
IKB Development AEAT Server

• Technique Selection Tool implemented
• Accessible to IAG and defined contacts onlyUser
  ID mms15user ltiagmmsgt
• http//www.ndt.aeat.co.uk/noticeboards/mms15iag/ik
  b/

28
IKB Structure
Horizontal Menu
Main Menu
Subject
Category
Topics
Information Sets
Page
Features
29
Browse by Method
30
Browse by Defect Type
31
Search
32
NDE ForumUse to raise new issues, highlight new
information, ask questions
33
Feedback

• Main route for feedback and comments. Identifies
  what page you were looking at when you made the
  comment

34
Support from IAG Members

• Feedback Use Feedback feature on IKB
• Examine Content
• Additional examples, case studies
• Examples of application of NDE, Issue,
  data,results, conclusions, performance,
  limitations, procedures used
• Score techniques where have experience
• Critically review Content where have experience
• Test runs
• Pictures of Defects in composites for Browse by
  Defect feature

35
Timeframe

• MMS15 scheduled to complete end March 2005
• Sequential audit and launch common ?technique
  selection ? Browse by Defect ? Specialised
• IKB only go live on NetComposites site when
  content approved and all in place
• IAG member feedback welcomed March 2005
• Internal project team audit of Content March 2005
• Audit of scores Mid March 2005
• Remaining software bugs cleared
• Feedback feature and NDE Forum provides simple
  route for comment now and when IKB in use
• Review and update 6 months, 1 year? As experience
  of use increases, NDE techniques evolve

36
Spin-off IKBs

• New generic IKB software extremely flexible and
  being applied in other applications
• MMS5 Project IKB
• HOIS FPSO Floating Production System IKB
• Rail Industry Inspection (IKB)

37
Future (beyond MMS15)

• Dissemination via NetComposites site
  www.netcomposites.com/ikb
• Update funded by secondary income
• Identify gaps in NDE capability
• Spin-off or studio projects with industry to
  enhance specific areas
• Tie in to relevant MPP programmes F2, F12 etc.
• Ongoing composite NDE, defect assessment working
  group?

38
MMS15 Where to find information

• Open
• MMS15 website www.mms15.com
• Public Noticeboard http//www.ndt.aeat.co.uk/notic
  eboards/mms15/
• IKB Beta Version New July 2004
• http//www.netcomposites.com//ikb/default_v2.asp
• IAG members only
• Members Area http//www.ndt.aeat.co.uk/notic
  eboards/mms15iag/
• IKB Development Version via or http//www.ndt.aeat
  .co.uk/noticeboards/mms15iag/ikb/
• All information can be accessed from
  www.mms15.com .For Members Area userID mms15user
  Password iagmms

39
New National NDT Centre NNDTC Location HARWELL

• National NDT Centre (NNDTC)
• AEA Technology, Engineering Solutions
• 551.11 Becquerel Avenue
• Harwell International Business Centre
• Harwell
• Oxfordshire
• OX11 0QJ , UK
• Tel [phone]
• Office 2215
• Fax [phone]
• Email Info_at_nndtc.com
• Web www.nndtc.com www.engsolve.com

40
The End
41
Demo IKBs

• There are two demo IKBs
• Beta Version NetComposites sitehttp//www.netcom
  posites.com//ikb/default_v2.aspDevelopment
  Version AEA Servervia www.mms15.com and
  Members Area
• The NetComposites site will be the main
  dissemination route. The development version is
  more frequently updated. You can get to both via
  www.mms15.com

42
Project Tasks
