Clustering Categorical Data The Case of Quran Verses

1

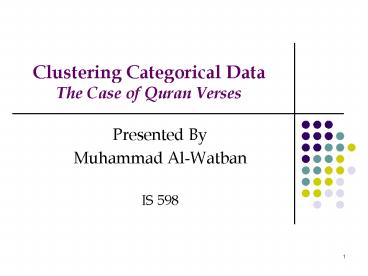

Clustering Categorical DataThe Case of Quran
Verses

• Presented By
• Muhammad Al-Watban
• IS 598

2
Outline

• Introduction
• Preprocessing of Quran Verses
• Similarity Measures
• Assisting Clusters Similarities
• Shortcomings of Traditional clustering methods
  with categorical data
• ROCK - Major definitions
• ROCK clustering Algorithm
• ROCK example
• Conclusion and future work

3
Introduction

• The holy Quran covers a wide range of topics.
• Quran does not cover each topic by a set of
  sequenced verses or suras.
• A single verse usually deals with many subjects
• Project goal to cluster the verses of The Holy
  Quran based on the verses subjects.

4
Preprocessing of Quran Verses

• it is necessary to perform manual preprocessing
  for the Quran text to capture the subjects of the
  verses into a tabular format
• Verses in the Holy Quran can be viewed as records
  and the related subjects as attributes of the
  record. This is demonstrated by the following
  table
• The data in the above table is similar to what is
  known as market-basket data.
• Here, we will call it verses-treasues data

5
Similarity Measures

• Two types of attributes
• Continuous attributes
• range of attribute value is continuous and
  ordered
• includes Attributes with numeric values (e.g.
  salary)
• also includes attributes whose allowed set of
  values are thought to be part of an ordered set
  of a meaningful sequence (e.g. professional
  ranks, disease severity levels)
• The similarity (or dissimilarity) between objects
  is computed based on distance between them.
• the most commonly used distance measure is
  Euclidean distance, and Manhattan distance

6
Similarity Measures

• Categorical attributes
• consists of attributes whose underlying domain is
  not ordered
• Examples colors, blood type.
• If the attribute has only two states (namely 0
  and 1), then it is called binary if it has more
  than two states, it is called nominal.
• there is no easy way to measure a distance
  between objects
• We can define dissimilarity based on the simple
  matching approach
• Where m is the number of matched attribute, and p
  is the total number of attributes.

7
Similarity Measures

• Where does the verses treasures data fit?
• Each verse can be represented by a record with
  Boolean attributes, each attribute corresponds to
  a single subject
• The attribute corresponding to a subject is T if
  the verse contains that subjects otherwise, it
  is F
• As we said, Boolean attributes are a special case
  of categorical attributes

8
Assisting Clusters Similarities

• Many clustering algorithm(such as hirarchical
  clustering) requires computing distance between
  clusters (rather than elements)
• There are several standard methods
• 1- Single linkage
• D(r,s) distance between clusters r and s is
  defined as the distance between the closest pair
  of objects

9
Assisting Clusters Similarities

• 2. Complete linkage
• distance is defined as the distance between the
  farthest pair of objects
• 3. Average linkage
• distance is defined as the average of distances
  between all pairs of objects r and s, where r and
  s belong to different clusters

10
Assisting Clusters Similarities

• 4. Centroid Linkage
• distance between clusters is defined as the
  distance between the pair of cluster centroids.

11
Shortcomings of Traditional clustering methods
with categorical data

• Example
• Consider the following 4 market basket
  transactions
• T1 1, 2, 3, 4
• T2 1, 2, 4
• T3 3
• T4 4
• converting these transactions to Boolean points,
  we get
• P1 (1, 1, 1, 1)
• P2 (1, 1, 0, 1)
• P3 (0, 0, 1, 0)
• P4 (0, 0, 0, 1)
• using Euclidean distance to measure the closeness
  between all pairs of points, we find that
  d(p1,p2) is the smallest distance

12
Shortcomings of Traditional clustering methods
with categorical data

• If we use the centroid-based hierarchical
  algorithm then we merge P1 and P2 and get a new
  cluster (P12) with (1, 1, 0.5, 1) as a centroid
• Then, using Euclidean distance again, we find
• d(p12,p3) ?3.25
• d(p12,p4) ?2.25
• d(p3,p4) ?2
• So, we should merge P3 and P4 since the distance
  between them is the shortest.
• However, T3 and T4 don't have even a single
  common item.
• So, using distance metrics as similarity measure
  for categorical data is not appropriate
• The solution is ROCK

13
ROCK - Major definitions

• Similarity function
• Neighbors
• Links
• Criterion function
• Goodness measure

14
Similarity function

• Let Sim (Pi, Pj) be a similarity function that is
  used to measure the closeness between points pi
  and Pj.
• ROCK assumes that Sim function is normalized to
  return a value between 0 and 1
• For Quran treasures data, a possible definition
  for the sim function is based on the Jaccard
  coefficient

15
Example similarity function

• Suppose two verses (P1 and P2) contain the
  following subjects
• P1 judgment, faith, prayer, fair
• P2 fasting, faith, prayer
• Sim(P1,P2) P1? P2 / P1?P2
• 2 / 5 0.40

16
Major definitions

• Similarity for data objects
• Neighbors
• Links
• Criterion function
• Goodness measure

17
Neighbors and Links

• one main problem of traditional clustering
  islocal properties involving only the two points
  are considered.
• Neighbor
• If similarity between two points exceeds certain
  similarity threshold (?), they are neighbors.
• Link
• The Link for pair of points is the number of
  their common neighbors.
• Obviously, Link incorporates global information
  about the other points in the neighborhood of the
  two points. The larger the Link, the higher
  probability that this pair of points are in the
  same clusters.

18
Example neighboring and linking

• Example
• Assume that we have three distinct points p1,p2
  and p3 where
• neighbor(p1)p1,p2
• neighbor(p2)p1,p2,3
• neighbor(p3)p3,p2
• Neighboring graph ?
• To define the number of links between two points,
  say p1 and p3, we have to find the number of
  their common neighbors hence, we can define the
  linkage function between p1 and p3 to be
• Link (p1,p3) neighbor(p1) ? neighbor(p3)
  P2
• Or Link (p1,p3) 1

19
Example minimum linkages

• If we have four pointsP1,P2,P3,P4
• suppose that similarity threshold (?) is equal to
  1
• Then, Two Points are neighbors if sim(Pi,Pj)gt1
• hence, points are considered neighbors only to
  identical points (i.e. only to themselves)
• To find Link(P1,P2)
• neighbor(P1)P1
• neighbor(P2)P2
• link (P1,P2) neighbor(p1) ? neighbor(p2) 0

20

• The following table shows the number of links
  (common neighbors) between the four points
• We can depict the neighboring graph

21
Example maximum linkages

• If we have four pointsP1,P2,P3,P4
• suppose that similarity threshold (?) is equal to
  0
• Then, Two Points are neighbors if sim(Pi,Pj)gt0
• hence, any pair of points are neighbors
• To find Link(P1,P2)
• neighbor(P1)P1,P2,P3,P4
• neighbor(P2)P1,P2,P3,P4
• link (P1,P2) neighbor(P1) ? neighbor(P2) 4

22

• The following table shows the number of links
  (common neighbors) between the four points
• We can depict the neighboring graph

23
Example illustrating links

• from the previous example, we have
• neighbor(P1)P1,P2,P3,P4
• neighbor(P3)P1,P2,P3,P4
• link (P1,P3) neighbor(P1) ? neighbor(P3) 4
  links
• we can depict these four different links (or
  paths) through these four different neighbors as
  follows

24
Major definitions

• Similarity for data objects
• Neighbors
• Links
• Criterion function
• Goodness measure

25
Criterion function

• to get the best clusters, we have to maximize
  this Criterion Function
• Where Ci denotes cluster i
• ni is the number of points in Ci
• k is the number of clusters
• ? is the similarity threshold
• Suppose in Ci, each point has roughly nf(?)
  neighbors.
• A suitable choice for basket data is
  f(?)(1-?)/(1?)

26
Criterion function

• By maximizing this criterion function, we are
  maximizing the sum of links of intra cluster
  point pairs and at the same time minimizing the
  sum of links among pairs of points belonging to
  different clusters (i.e. among inter cluster
  point pairs)

27
Major definitions

• Similarity for data objects
• Neighbors
• Links
• Criterion function
• Goodness measure

28
Goodness measure

• Goodness Function
• During clustering, we use this goodness measure
  in order to maximize the criterion function.
• This goodness measure helps to identify the best
  pair of clusters to be merged during each step of
  ROCK.

29
ROCK Clustering algorithm

• Input A set S of data points
• Number of k clusters to be found
• The similarity threshold
• Output Groups of clustered data
• The ROCK algorithm is divided into three major
  parts
• Draw a random sample from the data set
• Perform a hierarchical agglomerative clustering
  algorithm
• Label data on disk
• in our case, we do not deal with a very huge data
  set. So, we will consider the whole data in the
  process of forming clusters, i.e. we skip step1
  and step3

30
ROCK Clustering algorithm

• Draw a random sample from the data set
• sampling is used to ensure scalability to very
  large data sets
• The initial sample is used to form clusters, then
  the remaining data on disk is assigned to these
  clusters
• in our case, we will consider the whole data in
  the process of forming clusters.

31
ROCK Clustering algorithm

• Perform a hierarchical agglomerative clustering
  algorithm
• ROCK performs the following steps which are
  common to all hierarchical agglomerative
  clustering algorithms, but with different
  definition to the similarity measures
• places each single data point into a separate
  cluster
• compute the similarity measure for all pairs of
  clusters
• merge the two clusters with the highest
  similarity (goodness measure)
• Verify a stop condition. If it is not met then go
  to step b

32

• Label data on disk
• Finally, the remaining data points in the disk
  are assigned to the generated clusters.
• This is done by selecting a random sample Li from
  each cluster Ci, then we assign each point p to
  the cluster for which it has the strongest
  linkage with Li.
• As we said, we will consider the whole data in
  the process of forming clusters.

33
ROCK Clustering algorithm

• Computation of links
• using the similarity threshold ?, we can convert
  the similarity matrix into an adjacency matrix
  (A)
• Then we obtain a matrix indicating the number of
  links by calculating (A x A ) , i.e., by
  multiplying the adjacency matrix A with itself

34
ROCK Example

• Suppose we have four verses contains some
  subjects , as follows
• P1 judgment, faith, prayer, fair
• P2 fasting, faith, prayer
• P3 fair, fasting, faith
• P4 fasting, prayer, pilgrimage
• the similarity threshold 0.3, and number of
  required cluster is 2.
• using Jaccard coefficient as a similarity
  measure, we obtain the following similarity table


35
ROCK Example

• Since we have a similarity threshold equal to
  0.3, then we derive the adjacency table?
• By multiplying the adjacency table with itself,
  we derive the following table which shows the
  number of links (or common neighbors) ?

36
ROCK Example

• we compute the goodness measure for all adjacent
  points ,assuming that f(?) 1-? / 1?
• we obtain the following table?
• we have an equal goodness measure for merging
  ((P1,P2), (P2,P1), (P3,P1))

37
ROCK Example

• Now, we start the hierarchical algorithm by
  merging, say P1 and P2.
• A new cluster (lets call it C(P1,P2)) is formed.
• It should be noted that for some other
  hierarchical clustering techniques, we will not
  start the clustering process by merging P1 and
  P2, since Sim(P1,P2) 0.4,which is not the
  highest. But, ROCK uses the number of links as
  the similarity measure rather than distance.

38
ROCK Example

• Now, after merging P1 and P2, we have only three
  clusters. The following table shows the number of
  common neighbors for these clusters?
• Then we can obtain the following goodness
  measures for all adjacent clusters?

39
ROCK Example

• Since the number of required clusters is 2, then
  we finish the clustering algorithm by merging
  C(P1,P2) and P3, obtaining a new cluster
  C(P1,P2,P3) which contains P1,P2,P3 leaving P4
  alone in a separate cluster.

40
Conclusion and future work (1/3)

• We aim to apply a clustering technique on the
  verses of the Holy Quran
• We should first perform manual preprocessing for
  the Quran text to capture the subjects of the
  verses into a tabular format.
• Then we can apply a clustering algorithm which
  clusters each set of similar verses into the same
  group.

41
Conclusion and future work (2/3)

• Most traditional clustering algorithm uses
  distance based similarity measures which is not
  appropriate for clustering our categorical-type
  datasets.
• we will apply the general framework of the ROCK
  algorithm.
• The ROCK (RObust Clustering using linKs)
  algorithm is an agglomerative hierarchical
  clustering algorithm for clustering categorical
  data. It presents a new notion of link to measure
  similarity between data objects.

42
Conclusion and future work (3/3)

• We will adopt JAVA language to implement ROCK
  clustering algorithm.
• During testing, will try to form clusters of
  verses belonging to a single sura, and verses
  belonging to many different suras.
• Insha Allah, we will achieve success in
  performing this mission.

43

• Thank You for your attention
• I will be glad to answer your questions
