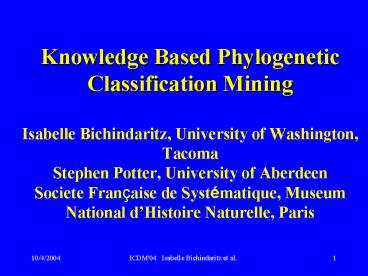

1Knowledge Based Phylogenetic Classification
MiningIsabelle Bichindaritz, University of
Washington, TacomaStephen Potter, University of
AberdeenSociete Française de Systématique,
Museum National dHistoire Naturelle, Paris
2Agenda
- Phylogenetic classification problem
- Methods in phyloinformatics
- Knowledge based classification method
- Phylsyst system
- Conclusion
3Phylogenetic Classification
- Phylogenies are evolutionary trees.
- Systematics has for goal to construct
classifications - Morphological systematics
- Phylogenetic systematics (Hennig, 1913).
- Phylogeny is the sequence of events involved in
the evolutionary development of a species or
taxonomic group of organisms. - Phylon is the Greek word for race, tribe, class,
akin.
4Phylogenetic Classification
- The goal of phylogenetic classification is to
construct cladograms following Hennig principles.
- Taxa are groups of organisms such as classes,
orders, families, genres, and species. - Cladograms are rooted phylogenetic trees, where
the root is the hypothetical common ancestor of
the taxa (species ) in the tree.
5Phylogenetic Classification
6Phylogenetic Classification
- The starting point of phylogenetic classification
is a taxon matrix. - A taxon is described as a list of character
values, such as (1, 0, 1, 2, 1, 2,
0) are the values associated with seven
different characters. - Characters can be morphologic, genetic, or
molecular. - Several types of characters
- Unordered values carry no evolutionary
information 0, 1, 2 - Undirected ordered values carry evolutionary
information about the number of steps between
them 0, 2 - Directed ordered values also carry evolutionary
information, but also constrain the evolution
order 0, 2
7Phylogenetic Classification
8Phylogenetic Classification
- Hennig Principles
- First principle. Characters have states called
plesiomorphic (primitive, generally 0) and
apomorphic (evolved, generally gt 0).
9Phylogenetic Classification
- Hennig Principles
- Second principle. A group is monophyletic if its
taxa share apomorphies. These traits are
synapomorphic. Monophyletic refers to a group
that is descended from a single common ancestor.
The sharing of plesiomorphic characters, called
synplesiomorphic traits, defines a common
ancestor more distant than synapomorphic ones,
and thus this ancestor will not be exclusive.
10Phylogenetic Classification
- Hennig Principles
- Third principle. The more a group shares
synapomorphies, the more likely it is to be
monophyletic. - Fourth principle. The assumption by default is
that each modified character shared by the
members of a group has appeared only once in this
group.
11Methods in Phyloinformatics
- Methods in phyloinformatics aim at constructing
phylogenetic classifications based on Hennig
principles. - The most widely spread methods are
- Parsimony-based.
- Compatibility-based.
12Methods in Phyloinformatics
- Parsimony
- Minimize the number of character state changes
among the taxa (the simplest evolutionary
hypothesis). - PAUP system (Phylogenetic Analysis Using
Parsimony)
13Methods in Phyloinformatics
- Parsimony
- Parsimony is the minimization of homoplasies.
- Homoplasies are evolutionary mistakes such as
- parallelism - apparition of the same derived
character independently between two groups - convergence - state obtained by the independent
transformation of two characters - reversion - evolution of one character from a
more derived state to a more primitive one
14Methods in Phyloinformatics
- Parsimony
- FITCH method. For unordered characters.
- WAGNER method. For ordered undirected characters.
- CAMIN-SOKAL method. For ordered undirected
characters, it prevents reversion, but allows
convergence and parallelism. - DOLLO method. For ordered directed characters, it
prevents convergence and parallelism, but not
reversion. - Polymorphic method. In chromosome inversion, it
allows hypothetical ancestors to have polymorphic
characters, which means that they can have
several values.
15Methods in Phyloinformatics
- Compatibility
- Maximize the number of characters mutually
compatible on a cladogram. - Compatible characters are ones that present no
homoplasy, neither reversion, nor parallelism,
nor convergence. - Find the largest clique of compatible characters,
a clique being a set of characters presenting no
homoplasy.
16Methods in Phyloinformatics
- Parsimony and compatibility are equivalent.
- Simplifications of Hennig Principles.
- Approximation by numerical methods.
17Knowledge Based Classification
-
- Phylogenetic Analysis Not Using Parsimony PANUP
(Bernard Sigwalt, SFS) - Goal to mine taxon matrices for phylogenetic
classifications based more closely on Hennigs
principles. - Find a network of synapomorphies as a basis to
organize the taxa in monophyletic sub-trees. - Systematize the actual Hennig principles, and not
some consequences of it like such methods as
parsimony, maximum-likelihood, or compatibility.
18Knowledge Based Classification
- Mines matrices of character values that are
binary and directed ordered. - 0 means plesiomorphic, and 1 means apomorphic
19Knowledge Based Classification
- PANUP algorithm done by hand by expert
phylogeneticist. - Reasoning process
- Find reciprocal synapomorphies look for doublons
10, 01. - Continue recursively in submatrices until no
doublon can be found. - Find triplons that do not lead to parallelism
look for triplons 00, 01, 10 or 00, 11, 10
(triplons 00, 11, 01 or 11, 01, 10 lead to
parallelism). - Use different other heuristics to complete
cladogram.
20Knowledge Based Classification
- Example
- Find doublon 10, 01 C3 and C4 form this 10,
01 doublon, and thus an exclusive synapomorphy.
And this is the only such doublon in this matrix.
21Knowledge Based Classification
- Leads to two monophyletic groups T1, T2
sharing exclusive synapomorphy C4, and T3, T4,
T5 sharing exclusive synapomorphy C3
22Knowledge Based Classification
- Find triplons 00, 01, 10 or 00, 11, 10
23Phylsyst System
- PhylSyst is an intelligent system modeling the
expert systematicians reasoning to build
phylogenetic classifications. - It mines character matrices by reproducing how
human phylogeneticists reason, representing their
knowledge. - Only when the mining process leads to several
plausible trees does it use a scoring function to
determine the best tree. This scoring function is
an evaluation of how well the competing trees fit
Hennig original principles.
24Phylsyst System
- Phylsyst algorithm proceeds through several
steps - 1. Search for 01, 10 doublons (reciprocal
synapomorphies), then recursively in
sub-matrices. - 2. Search for 00, 11 doublons (several evolved
characters exclusively shared by one branch of
the tree). - 3. Hypothesize a 01, 10 doublon (find a 01,
10 doublon by modifying less than a certain
percentage of characters for instance 25 ). - 4. Search for triplons.
- 5. Search for quadruplons.
- 6. Evaluation of the best cladogram.
25Phylsyst System
- Scoring function
- Maximize the number of 01, 10 doublons.
- Maximize the number of synapomorphies closer to
the root by minimizing score2 - Maximize the branching nodes splitting the tree
on large number of taxa
26Phylsyst System
- Example Berberidac. family
27Phylsyst System
- Example Phylsyst built cladogram
28Phylsyst System
- Summary
- Tree mining by representing closely Hennig
Principles and phylogeneticist expert
classification method. - Related to tree mining
- Decision tree induction
- Conceptual clustering
- Different because phylogenetic tree represents an
evolution in time - Case based reasoning to memorize and reuse search
trees
29Conclusion
- Phylsyst distributed with Biosystema special
issue - Improvement ideas
- Graphical user interface
- Add genetic characters to morphological character
- Explanation of cladograms built
- Model more closely phylogeneticists reasoning
- Scale up to large datasets
30Conclusion
- Informatics novel and efficient algorithms and
tools needed for the worldwide effort to Assemble
the Tree of Life. - Important role to play by computational
intelligence.
