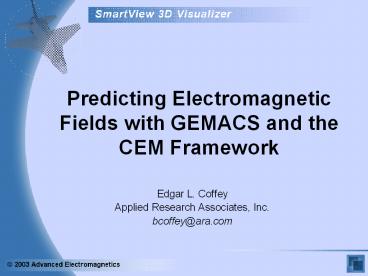

Predicting Electromagnetic Fields with GEMACS and the CEM Framework

1
Predicting Electromagnetic Fields with GEMACS and
the CEM Framework

• Edgar L. Coffey
• Applied Research Associates, Inc.
• bcoffey_at_ara.com

2
Ground Vehicle Antenna Radiation
Center-fed at 50 Watts
3
Ground Vehicle Radiation Problem

• Modeling Scenario
• Antenna on vehicle over ground plane
• Radiates in all directions
• Observables
• Find where radiation levels are excessive
• Steps
• Build an EM model of the scene
• Execute GEMACS to find fields
• Extract desired observables from raw data
• Use SmartView to render the results

4
Start with the Vehicle

• Main Menu
• Edit
• Add Element to Scene
• Geometry
• Select geometry file
• Set rendering features
• Set position at origin

5
Add the Ground Plane

• Main Menu
• Edit
• Add Element to Scene
• Ground plane
• Select geometry file
• Set conductivity 0.005
• Set rendering size 100 m

6
Excite the Antenna with 50 Watts

• Main Menu
• Edit
• Add Element to Scene
• Impressed Source
• Value 73.38 j0 volts
• Segment No. 16
• Frequency 50 MHz
• (No load)

7
Request Surface Currents

• Main Menu
• Edit
• Add Element to Scene
• Surface/Wire Currents
• Value 73.38 j0 volts
• Select Results File

8
Request Near-Zone Electric Fields
-40 m lt X lt 40 m -40 m lt Y lt 40 m 0 m lt Z lt 26
m dx dy dz 2 m
(Only a small part of the lattice is shown.)
9
Export to GEMACS and Run

• Main Menu
• File
• Export
• GEMACS
• Enter file name
• Main Menu
• Execute
• Launch GEMACS 6.11

Frequency and Excitation
Segment and Conductivity
Field Output Request
Results XML File
(Hand-generated GEMACS input shown for clarity.)
10
Post-Process GEMACS Data
The Frameworks Component View tool easily
generates requested observables
11
Generating Surface Currents
Use Component View to post-process data, then
view with SmartView
12
Visualizing Surface Currents
(Currents are color-coded according to their
intensity.)
13
Generating Contour Maps
The full 3D field data set is read into Component
View via XMLReader, then the user selects a cut
plane on which to generate contours. The data
are written to a SmartView-compatible file.
14
Visualizing Contours of Fields

• Rendered with AEs SmartView.
• Viewing contours from above.
• Vehicle forward direction is x axis.
• YZ-plane is vehicles front face
• Contour is taken at z 2 m
• Color scale units are in Volts/meter

15
Generating IsoSurface Contours
This map generates two surface and combines them
with the vehicle
16
Visualizing IsoContour Surfaces
2 V/m surface
5 V/m surface
(Front of contours removed for clarity)
17
Using Light to Enhance the View
(Previous figure viewed from below)
18
Combining Contours with IsoSurfaces (color
mapped)
19
Summary of Ground Vehicle Simulation and
Visualization

• Building the scene (15 minutes)
• Predicting fields (25 minutes)
• Post-processing the data (15 minutes)
• Visualization and Screenshots (20 minutes)
• All was done on a laptop PC with GEMACS and the
  CEM Framework
