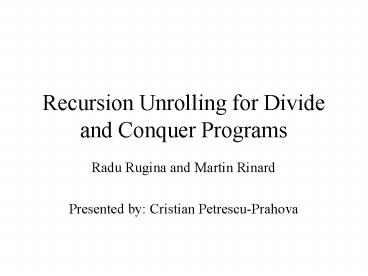

Recursion Unrolling for Divide and Conquer Programs

1
Recursion Unrolling for Divide and Conquer
Programs

• Radu Rugina and Martin Rinard
• Presented by Cristian Petrescu-Prahova

2
Divide and Conquer

• Idea
• Divide problem in smaller sub problems, solve
  each in turn
• Use recursion as primary control structure
• Base case computation terminates the recursion
  when a small enough size was reached
• Combine results to generate solution of the
  original problem
• Interesting properties
• Lots of inherent parallelism natural recursively
  generated concurrency
• Good cache performance natural fits cache
  hierarchies
• In practice
• Potentially too much time spent in divide/combine
  phases
• Increasing the size of the base case alleviates
  the problem
• But the simplest and least error-prone coding
  style reduces the problem to a minimum size
  (typically one)
• Solution recursion unrolling

3
Example Divide and Conquer Array Increment
void dcInc (int p, int n) if (n 1)
p 1 else dcInc (p, n/2)
dcInc (p n/2, n/2)
Base case Divide
4
Inlining Recursive Calls
void dcIncI (int p, int n) if (n 1)
p 1 else if (n/2 1) p
1 else dcIncI (p,
n/2/2) dcIncI (p n/2/2, n/2/2)
if (n/2 1) (p n/2) 1
else dcIncI (p n/2, n/2/2)
dcIncI (p n/2 n/2/2, n/2/2)
Base case Divide
5
Conditional Fusion
void dcIncI (int p, int n) if (n 1)
p 1 else if (n/2 1) p
1 else dcIncI (p,
n/2/2) dcIncI (p n/2/2, n/2/2)
if (n/2 1) (p n/2) 1
else dcIncI (p n/2, n/2/2)
dcIncI (p n/2 n/2/2, n/2/2)
void dcIncF (int p, int n) if (n 1)
p 1 else if (n/2 1) p
1 (p n/2) 1 else
dcIncI (p, n/2/2) dcIncI (p
n/2/2, n/2/2) dcIncI (p n/2,
n/2/2) dcIncI (p n/2 n/2/2,
n/2/2)
Base case Divide
6
Reroll Second Unrolling Iteration
void dcInc2 (int p, int n) if (n 1)
p 1 else if (n/2 1) p
1 (p n/2) 1 else
if (n/2/2 1) p 1 (p
n/2/2) 1 (p n/2) 1 (p
n/2 n/2/2) 1 else dcIncI
(p, n/2/2/2)
dcIncI (p n/2/2/2, n/2/2/2)
dcIncI (p n/2/2, n/2/2/2)
dcIncI (p n/2/2 n/2/2/2,
n/2/2/2) dcIncI (p n/2,
n/2/2/2) dcIncI (p n/2 n/2/2/2,
n/2/2/2) dcIncI (p n/2 n/2/2,
n/2/2/2) dcIncI (p n/2
n/2/2 n/2/2/2, n/2/2/2)
void dcInc2 (int p, int n) if (n 1)
p 1 else if (n/2 1) p
1 (p n/2) 1 else
if (n/2/2 1) p 1 (p
n/2/2) 1 (p n/2) 1 (p
n/2 n/2/2) 1 else dcIncI
(p, n/2/2/2)
dcIncI (p n/2/2/2, n/2/2/2)
dcIncI (p n/2/2, n/2/2/2)
dcIncI (p n/2/2 n/2/2/2,
n/2/2/2) dcIncI (p n/2,
n/2/2/2) dcIncI (p n/2 n/2/2/2,
n/2/2/2) dcIncI (p n/2 n/2/2,
n/2/2/2) dcIncI (p n/2
n/2/2 n/2/2/2, n/2/2/2)
void dcIncR (int p, int n) if (n 1)
p 1 else if (n/2 1) p
1 (p n/2) 1 else
if (n/2/2 1) p 1 (p
n/2/2) 1 (p n/2) 1 (p
n/2 n/2/2) 1 else dcIncR
(p, n/2) dcIncR (p n/2, n/2)

We need rerolling to ensure that the largest
unrolled base case is always executed.
7
Algorithm
Algorithm RecursionUnrolling (Proc f, Int
m) funroll,0 clone (f) for (i 1 i lt m
i) funroll,i RecusionInline (funroll,i-1,
f) funroll,i ConditionalFusion
(funroll) freroll,m RecursionRerolling
(funroll,m, f) return freroll,m
8
Implementation details

• Recursion unrolling
• Standard procedure inlining
• Increases the code size exponentially, must be
  used with care
• Conditional fusion
• Bottom up traversal of HTG conditional match
• Recursion rerolling
• Replaces the unrolled procedure recursion block
  with the rolled procedure recursion block if the
  unrolled procedure conditional sequence implies
  the rolled procedure conditional sequence
• Simple transformations !!!

9
Experiments

• Programs
• Mul divide and conquer matrix multiplication
• 1 recursive procedure with 8 recursive calls
• Base case size 1 element
• LU divide and conquer LU decomposition
• 4 mutually recursive procedures main procedure
  has 8 recursive calls
• Base case size 1 element
• Implementation
• C to C transformations in SUIF
• Comparison
• Handcoded divide and conquer from Cilk benchmark
  set (designed for thread parallelization)

10
Results
11
Conclusion

• Recursion unrolling, similar with loop unrolling.
• Basic recursion unrolling reduces the overhead of
  procedure call
• Extra optimizations
• Conditional fusion simplifies the control flow
• Recursion rerolling ensures the biggest unrolled
  base case is always executed
• Optimized programs performance is close to that
  of handcoded programs
